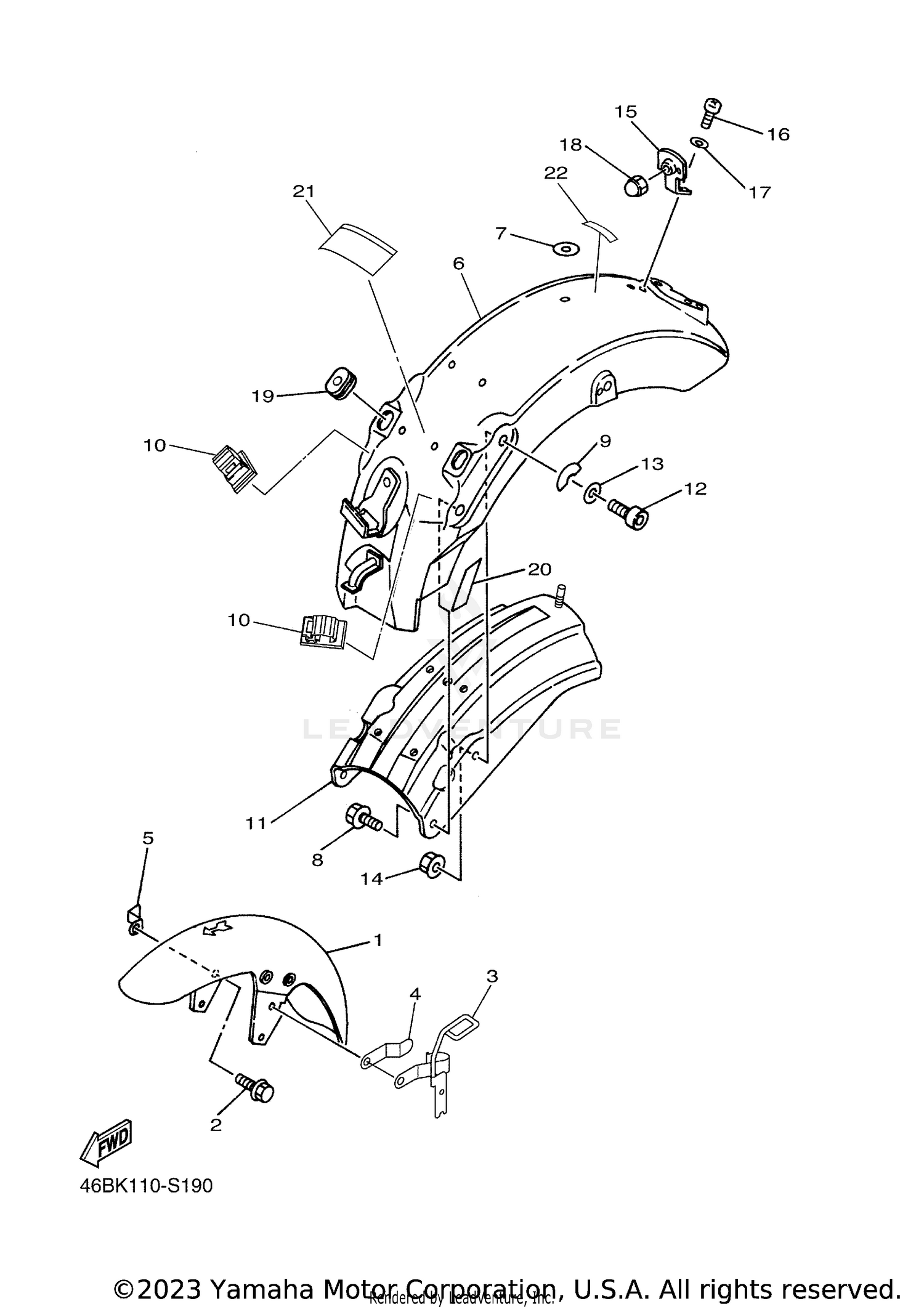

Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FENDER COMP.
2UJ-21510-01-P6
|
$95.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT, FLANGE (SMALL HEAD)
95024-08012-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
HOLDER, WIRE 1
3DN-21597-00-00
|
$65.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
STOPPER 2
2UJ-26116-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
BRACKET
3DN-21586-00-00
|
$136.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
REAR FENDER COMP.
2UJ-21610-00-PC
|
$316.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SEAL 2
2UJ-21735-00-00
|
$1.75 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, FLANGE
95817-10020-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
SEAL 4
3DM-2173N-00-00
|
$3.60 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
CLAMP
90464-14002-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#11
REINF. COMP.
2UJ-21670-20-00
|
$65.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, HEX. SOCKET HEAD
91317-10035-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, PLATE
92907-10600-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT, FLANGE
95707-10500-00
|
$2.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
BRACKET, REFLECTOR
2UJ-21641-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW, PAN HEAD
98507-05010-00
Superseded by 98517-05010-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, PLATE
92907-05600-00
|
$1.00 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
NUT
95307-05800-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
GROMMET
90480-01502-00
Superseded by 90480-15061-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
SEAL 3
2UJ-2173M-01-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
LABEL, NOTICE BATTERY
10D-2815N-01-00
|
$12.99 | ||
|
Unavailable |
|||
|
#22
EMBLEM, YAMAHA
1D6-2153E-21-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
