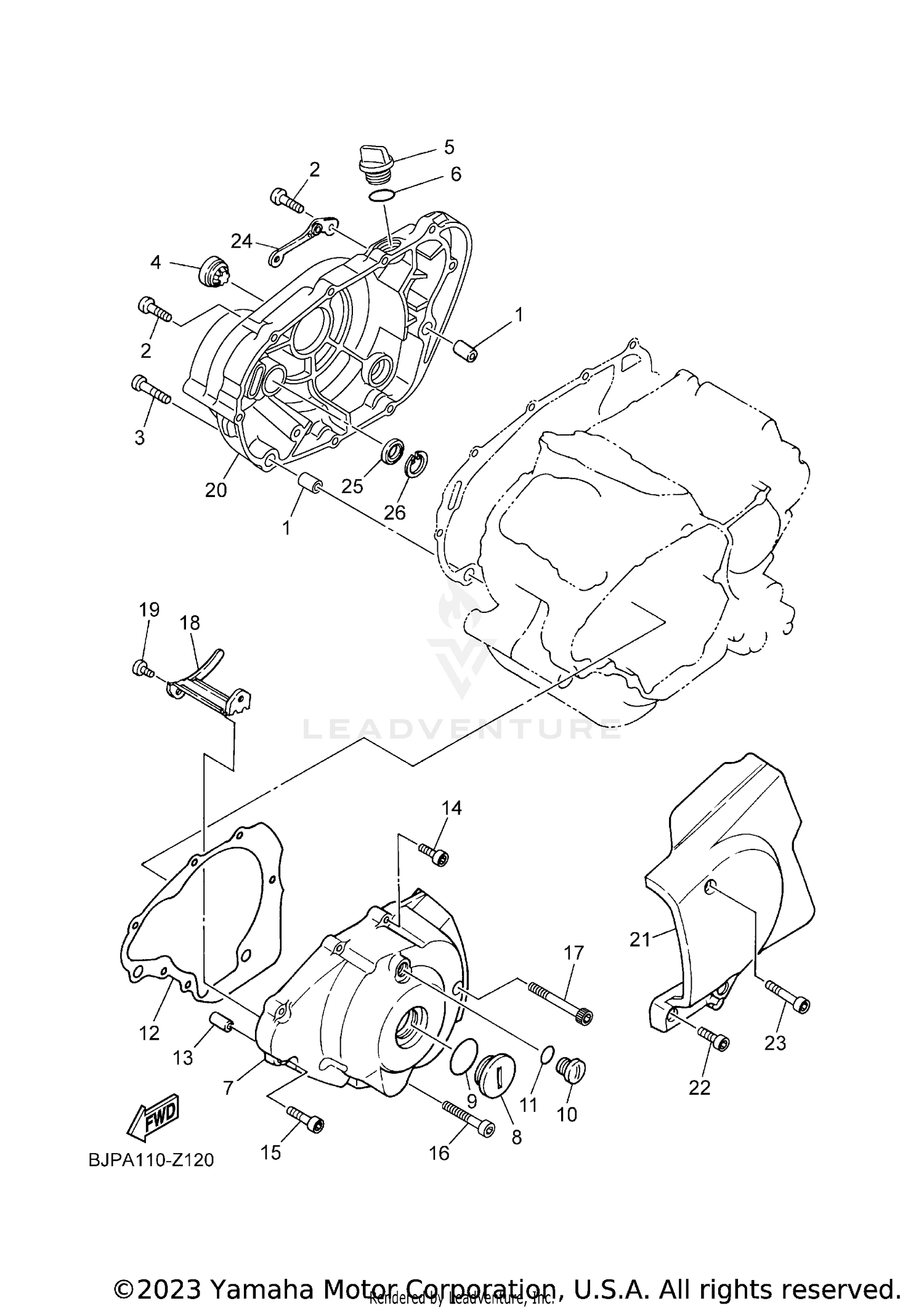

Crankcase Cover 1 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PIN, DOWEL
99530-12016-00
|
$4.89 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT, HEXAGON SOCKET HEAD
91314-06025-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, HEXAGON SOCKET HEAD
91314-06035-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
GAUGE, LEVEL
3Y1-15361-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
PLUG, OIL
3Y1-15363-10-00
|
$19.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
O-RING
93210-19123-00
|
$8.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
COVER, CRANKCASE 1
2UJ-15411-01-00
|
$301.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLUG, STRAIGHT SCREW
90340-32116-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
O-RING
93210-32172-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
PLUG, STRAIGHT SCREW
90340-14068-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
O-RING
93210-14369-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
GASKET, CRANKCASE COVER 1
4RF-15451-01-00
|
$16.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
PIN, DOWEL
99530-12016-00
|
$4.89 | ||
|
Unavailable |
|||
|
#14
BOLT, HEXAGON SOCKET HEAD
91314-06025-00
|
$9.49 | ||
|
Unavailable |
|||
|
#15
BOLT, HEXAGON SOCKET HEAD
91314-06035-00
|
$9.49 | ||
|
Unavailable |
|||
|
#16
BOLT, HEXAGON SOCKET HEAD
90110-06006-00
Superseded by 91314-06035-00
|
$9.49 | ||
|
Unavailable |
|||
|
#17
BOLT, HEXAGON SOCKET HEAD
90110-06010-00
Superseded by 91314-06070-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
CLAMP
90465-06322-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT
90110-06227-00
Superseded by 91317-06010-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
COVER, CRANKCASE 2
2UJ-15421-00-00
|
$213.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
COVER, CRANKCASE 3
2UJ-15431-02-00
|
$122.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, HEXAGON SOCKET HEAD
91314-06025-00
|
$9.49 | ||
|
Unavailable |
|||
|
#23
BOLT, HEXAGON SOCKET HEAD
91314-06050-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
HOLDER, CLUTCH CABLE
2UJ-15441-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
OIL SEAL
93101-14089-00
|
$13.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
CIRCLIP
99009-25500-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
