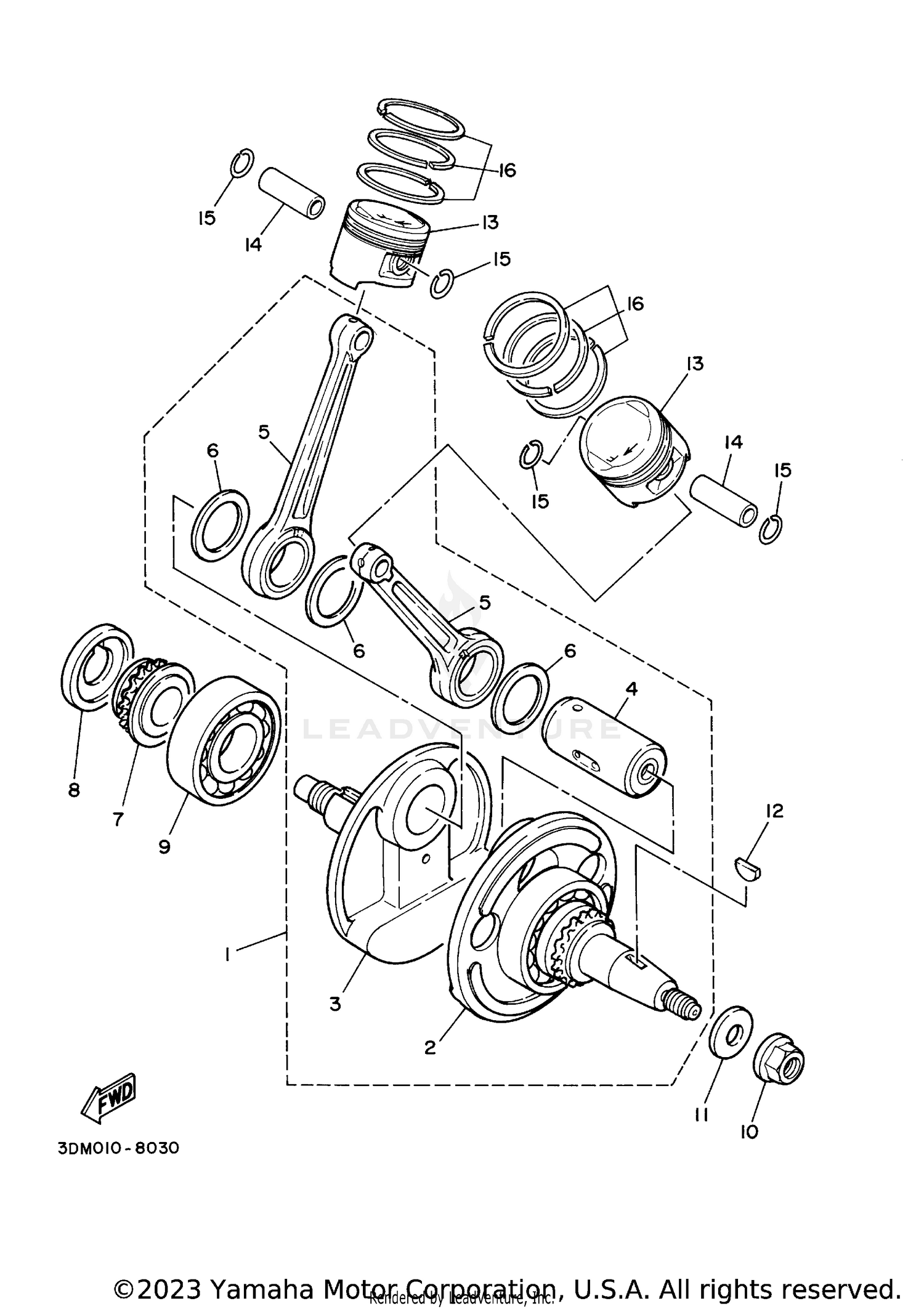

Crankshaft & Piston Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKSHAFT ASSY
2UJ-11400-10-00
|
$479.99 | ||
|
Unavailable |
|||
|
#2
CRANK SUB ASSY 1
2UJ-11401-09-00
|
$255.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
CRANK 2
2UJ-11422-00-00
|
$173.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIN, CRANK 1
2UJ-11681-00-00
|
$58.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
ROD, CONNECTING
2UJ-11651-10-00
|
$60.99 | ||
|
Unavailable |
|||
|
#6
WASHER
90209-31300-00
|
$2.00 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPROCKET, CAM CHAIN 2
2UJ-1154A-00-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
COLLAR
2UJ-11478-00-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BEARING
93306-30611-00
Superseded by 93306-30615-00
|
$90.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT
90179-12004-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, PLATE
90201-12191-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
KEY, WOODRUFF
90280-05048-00
Superseded by 90280-05001-00
|
$13.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
PISTON (1.00MM O/S)
2UJ-11638-00-00
|
$118.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
PISTON (STD)
2UJ-11631-00-A0
|
$146.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
PISTON (0.50MM O/S)
2UJ-11636-00-00
|
$115.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
PIN, PISTON
22K-11633-01-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
CIRCLIP
93450-14088-00
|
$4.40 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
PISTON RING SET (1.00MM O/S)
50M-11610-40-00
|
$51.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
PISTON RING SET (0.50MM O/S)
50M-11610-20-00
|
$75.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
PISTON RING SET (STD)
50M-11610-00-00
|
$75.99 | ||
|
Available to order. Add to View Price |
|||
