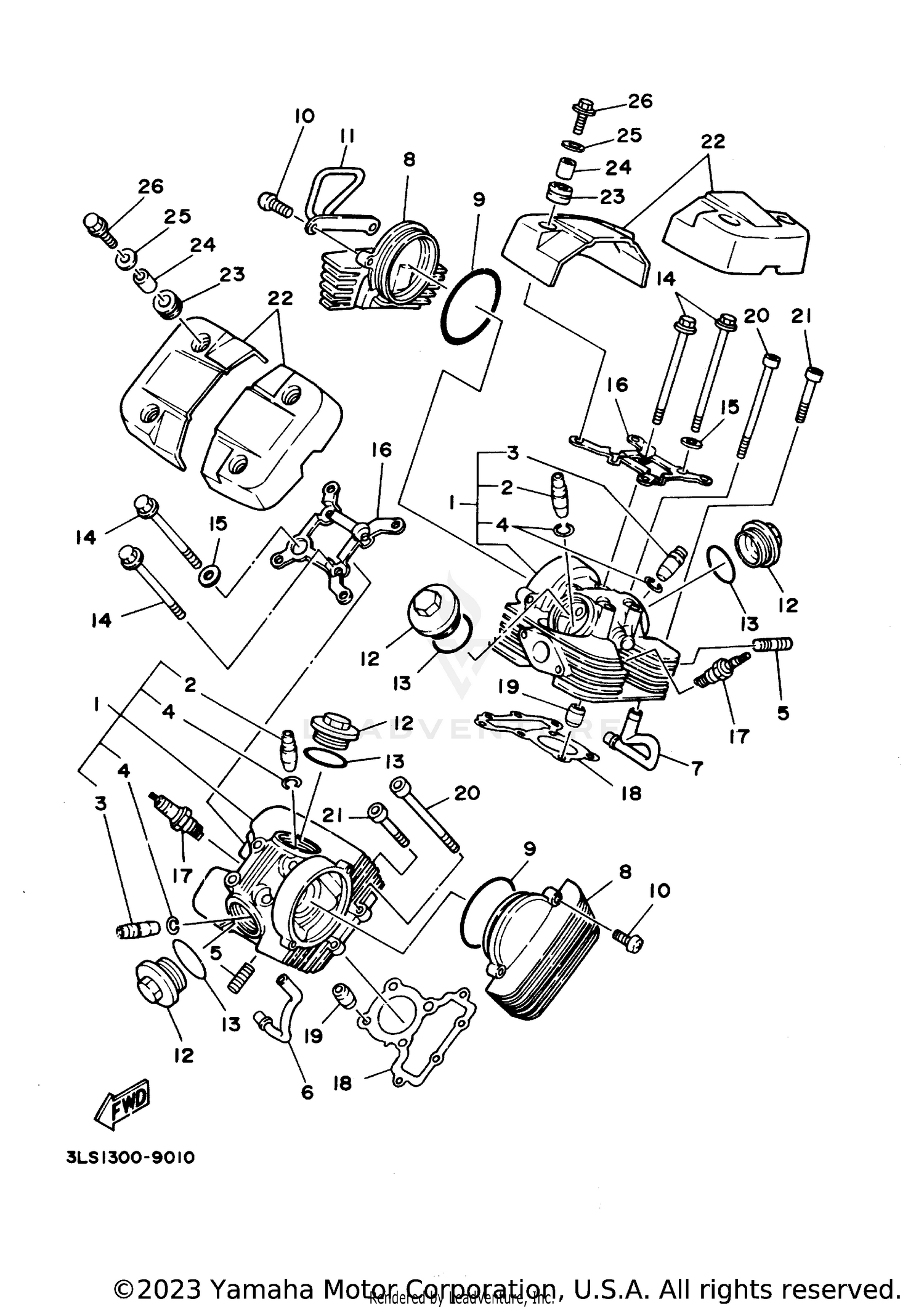

Cylinder Head Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER HEAD ASSY
3BG-11102-01-00
|
$753.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
GUIDE, VALVE 1
2UJ-11133-10-00
|
$56.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
GUIDE, VALVE 2
22F-11134-10-00
|
$96.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
CIRCLIP
93440-10109-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, STUD
90116-06036-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#6
PIPE 1
3BG-14871-00-00
|
$96.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
PIPE 2
3BG-14872-00-00
|
$87.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
COVER, CYLINDER HEAD SIDE 3
2UJ-11185-01-00
|
$71.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
O-RING
93210-78544-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW, PAN HEAD
98507-06025-00
Superseded by 98517-06025-00
|
$4.05 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
BRACKET, CYLINDER HEAD COVER
2UJ-11152-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
COVER, CYLINDER HEAD SIDE 2
22F-11186-10-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
O-RING
93210-44704-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
BOLT, FLANGE
90105-08181-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, PLATE
90201-08609-00
Superseded by 90201-080L7-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#16
BRACKET, CYLINDER HEAD COVER 2
2UJ-11142-01-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
PLUG SPARK (NGK CR6HSA)
94701-00257-00
Superseded by CR6-HSA00-00-00
|
$5.99 | ||
|
Unavailable |
|||
|
#17
C6HSA NGK SPLUG 10
C6H-SA000-00-00
|
$4.95 | ||
|
Unavailable |
|||
|
#18
GASKET, CYLINDER HEAD 1
2UJ-11181-01-00
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
PIN, DOWEL
99530-10114-00
|
$2.65 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
BOLT, HEX. SOCKET HEAD
91317-06110-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, HEX. SOCKET HEAD
91317-06040-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#22
COVER, CYLINDER HEAD SIDE 2
3DM-11186-02-00
|
$141.99 | ||
|
Unavailable |
|||
|
#23
GROMMET
90480-13018-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
COLLAR
90387-06043-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, PLATE
90201-06071-00
Superseded by 90201-063J2-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, FLANGE (SMALL HEAD)
95024-06020-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
