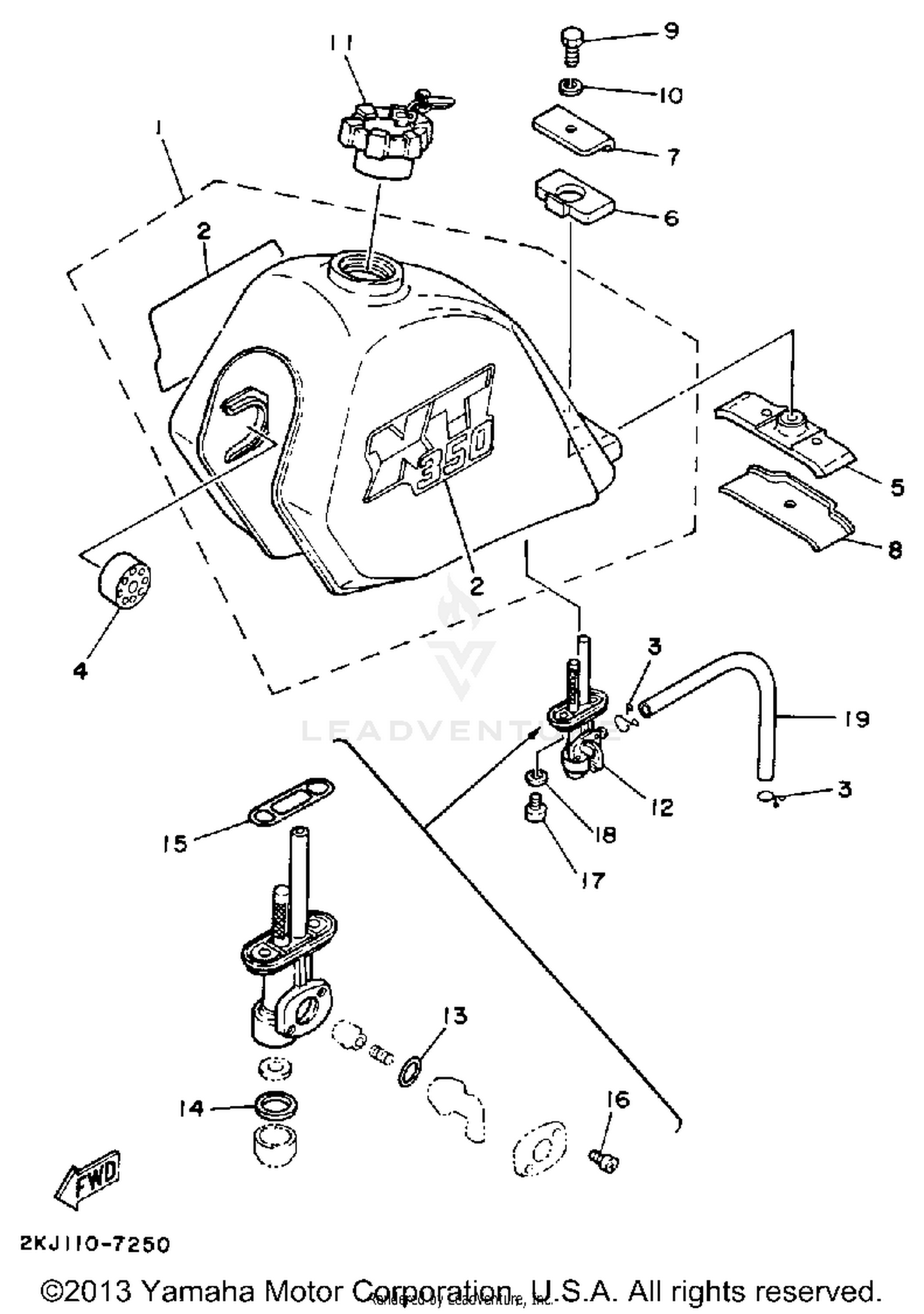

Fuel Tank Xt350t Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK
30X-24110-G0-05
|
$482.99 | ||
|
Unavailable |
|||
|
#2
GRAPHIC SET
2GK-24240-00-00
|
$77.63 | ||
|
Unavailable |
|||
|
#3
CLIP
90467-09006-00
Superseded by 90467-090A2-00
|
$4.75 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
DAMPER, LOCATING 1
4L0-24181-00-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
DAMPER, LOCATING 2
30X-24182-01-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
DAMPER, LOCATING 3
30X-24183-01-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, SPECIAL
30X-24186-01-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, SPECIAL
30X-24187-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT
97013-06012-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, SPRING
92995-06100-00
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#11
CAP ASSY
48Y-24602-00-00
|
$203.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
FUEL COCK ASSY 1
15A-24500-03-00
Superseded by 23F-24500-20-00
|
$45.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
SEAL, COCK
4X8-24534-00-00
|
$14.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
GASKET
4X8-24565-00-00
Superseded by 4X8-24565-10-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
O-RING
4X8-24512-00-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
SCREW, LEVER FITTING
4X8-24535-00-00
|
$4.95 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW
90149-06011-00
|
$2.05 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
WASHER, PLATE
90202-05187-00
|
$1.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
HOSE (L110)
90445-10008-00
Superseded by 90445-10752-00
|
$5.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
