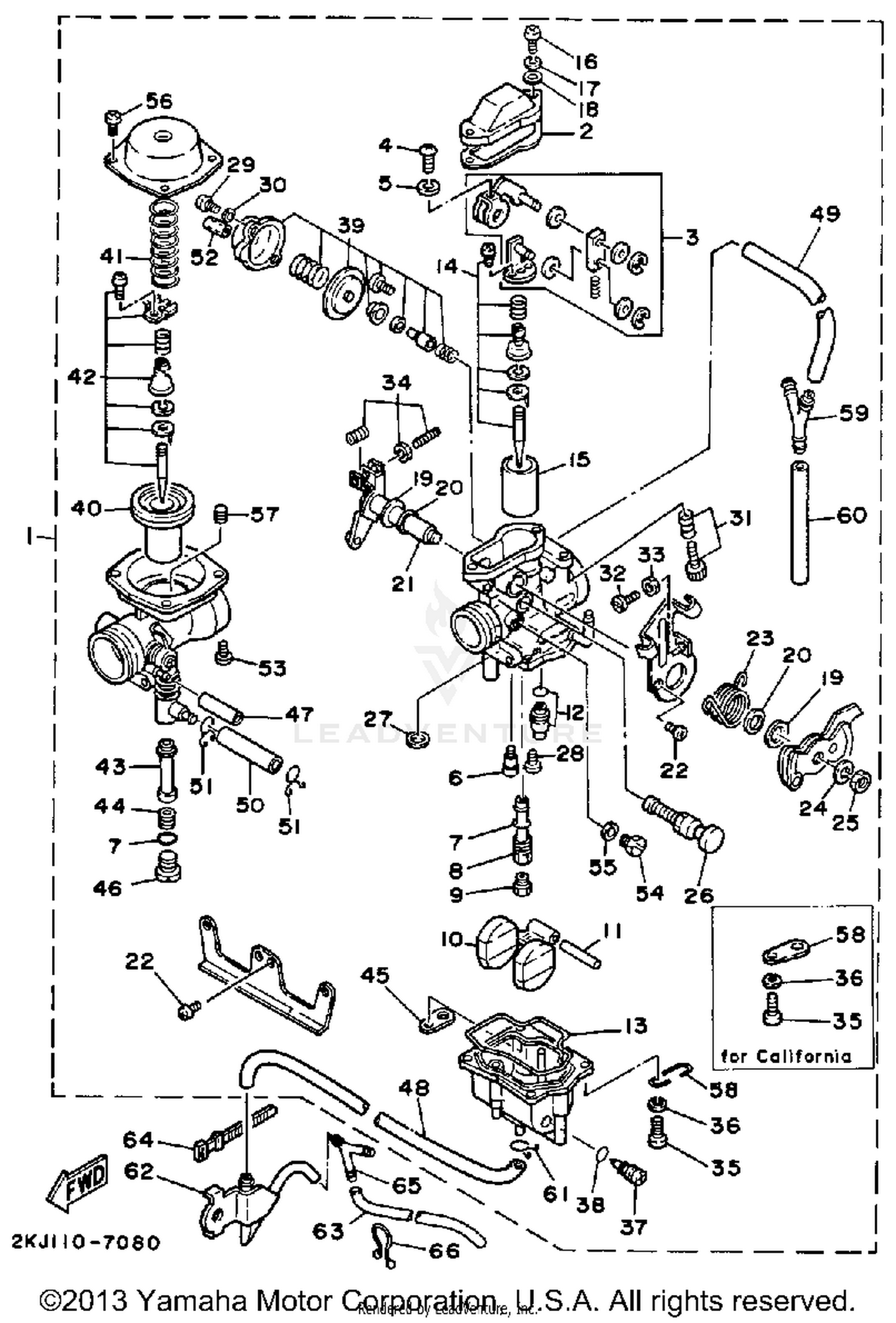

Carburetor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CARBURETOR ASSY 1
57T-14301-01-00
Superseded by 57T-14301-05-00
|
$764.99 | ||
|
Available to order. Add to View Price |
|||
|
#
CARBURETOR ASSY 1
56R-14301-01-00
Superseded by 56R-14301-05-00
|
$764.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
GASKET
30X-14198-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BRACKET 1
30X-14203-00-00
Superseded by 1LN-14291-00-00
|
$62.99 | ||
|
Unavailable |
|||
|
#4
SCREW, PAN HEAD
98580-04016-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, SPRING
92990-04100-00
|
$0.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
JET, PILOT ( 42)
30X-14342-21-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
O-RING
360-24512-00-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
NOZZLE, MAIN
51Y-14341-00-00
|
$20.99 | ||
|
Unavailable |
|||
|
#9
JET, MAIN (#120)
288-14343-60-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#
JET, MAIN (#125)
288-14343-63-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
FLOAT
5Y1-14385-00-00
|
$97.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIN, FLOAT
6E5-14386-01-00
|
$5.65 | ||
|
Available to order. Add to View Price |
|||
|
#12
NEEDLE VALVE SET
1JK-14107-01-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
GASKET, FLOAT CHAMBER
30X-14384-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
NEEDLE SET
57T-1490J-10-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#
NEEDLE SET
57T-1490J-00-00
|
$16.99 | ||
|
Unavailable |
|||
|
#15
VALVE, THROTTLE 1
30X-14312-35-00
Superseded by 2JX-14312-35-00
|
$73.99 | ||
|
Available to order. Add to View Price |
|||
|
#
VALVE, THROTTLE 1
56R-14312-35-00
|
$84.09 | ||
|
Unavailable |
|||
|
#16
SCREW, PAN HEAD
98503-04014-00
Superseded by 98580-04014-00
|
$3.30 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
WASHER, SPRING
92901-04100-00
Superseded by 92990-04100-00
|
$0.95 | ||
|
Unavailable |
|||
|
#18
WASHER, PLATE
92901-04600-00
Superseded by 92990-04600-00
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, PLAIN
5Y1-14357-00-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
PLATE, STAY
5Y1-14572-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
THROTTLE SHAFT ASSEMBLY
1LN-14930-00-00
|
$67.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW, PAN HEAD
98580-05010-00
Superseded by 97885-05010-00
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#23
SPRING, THROTTLE VALVE
30X-14131-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, SPRING
5Y1-14356-00-00
|
$3.30 | ||
|
Available to order. Add to View Price |
|||
|
#25
NUT
5Y1-14358-00-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
PLUNGER, STARTER
15A-14371-00-00
Superseded by 15A-14371-01-00
|
$72.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
GASKET
5Y1-14536-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
SCREW,BIND
98901-04006-00
Superseded by 98980-04006-00
|
$5.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
SCREW, PAN HEAD
98580-04010-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
WASHER, SPRING
92901-04100-00
Superseded by 92990-04100-00
|
$0.95 | ||
|
Unavailable |
|||
|
#31
THROTTLE SCREW SET
3WP-14103-00-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
SCREW
30X-14216-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#33
NUT
30X-14358-00-00
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
|
#34
STOP SCREW SET
30X-1490K-00-00
|
$18.49 | ||
|
Unavailable |
|||
|
#35
SCREW,PANHEAD
98511-04012-00
Superseded by 98517-04012-00
|
$4.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#36
WASHER, SPRING
92901-04100-00
Superseded by 92990-04100-00
|
$0.95 | ||
|
Unavailable |
|||
|
#37
PLUG, SCREW
5Y1-14115-00-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
O-RING
5Y1-14397-00-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#39
DIAPHRAGM SET 1
5Y1-1490A-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
VALVE ASSEMBLY
30X-14340-01-00
|
$124.99 | ||
|
Available to order. Add to View Price |
|||
|
#41
SPRING
30X-14286-00-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
NEEDLE SET
57T-1490J-00-00
|
$16.99 | ||
|
Unavailable |
|||
|
#43
NOZZLE, MAIN 2
30X-14355-00-00
|
$19.49 | ||
|
Unavailable |
|||
|
#44
JET, MAIN (106)
30X-14343-53-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#45
PLATE
5Y1-14146-00-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#46
VALVE, DRAIN (30X-14394-00)
1RG-14394-00-00
|
$46.99 | ||
|
Unavailable |
|||
|
#47
PIPE
5Y1-14349-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#48
PIPE
5Y1-14396-00-00
|
$4.90 | ||
|
Available to order. Add to View Price |
|||
|
#
PIPE (56R-14396-00-00)
2NW-14396-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#49
PIPE
56R-14196-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#
PIPE
5Y1-14197-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#50
PIPE
30X-14148-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#51
CLIP
5Y1-14159-00-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#52
PIPE
30X-14149-00-00
|
$13.49 | ||
|
Unavailable |
|||
|
#53
SCREW, PAN HEAD
98580-04010-00
|
$9.49 | ||
|
Unavailable |
|||
|
#54
SCREW
5H0-14991-00-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#55
GASKET
5H0-14126-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#56
SCREW, PAN HEAD
98506-04008-00
Superseded by 98507-04008-00
|
$2.14 | ||
|
Available to order. Add to View Price |
|||
|
#57
AIR JET, MAIN
30X-14337-70-00
|
$2.97 | ||
|
Unavailable |
|||
|
#58
PLATE
30X-14146-00-00
|
$3.30 | ||
|
Unavailable |
|||
|
#
PLATE
42U-14146-00-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#59
WAY 3
90413-05008-00
Superseded by 90413-05013-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#60
PIPE
56R-14196-00-00
|
$10.49 | ||
|
Unavailable |
|||
|
#61
CLIP
5Y1-14137-00-00
|
$7.99 | ||
|
Unavailable |
|||
|
#62
PIPE
56R-14193-00-00
|
$289.99 | ||
|
Unavailable |
|||
|
#63
PIPE (56R-14396-00-00)
2NW-14396-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#64
BAND, SWITCH CORD
437-83936-01-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#65
WAY 3
90413-05008-00
Superseded by 90413-05013-00
|
$5.99 | ||
|
Unavailable |
|||
|
#66
CLAMP
90464-16039-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
