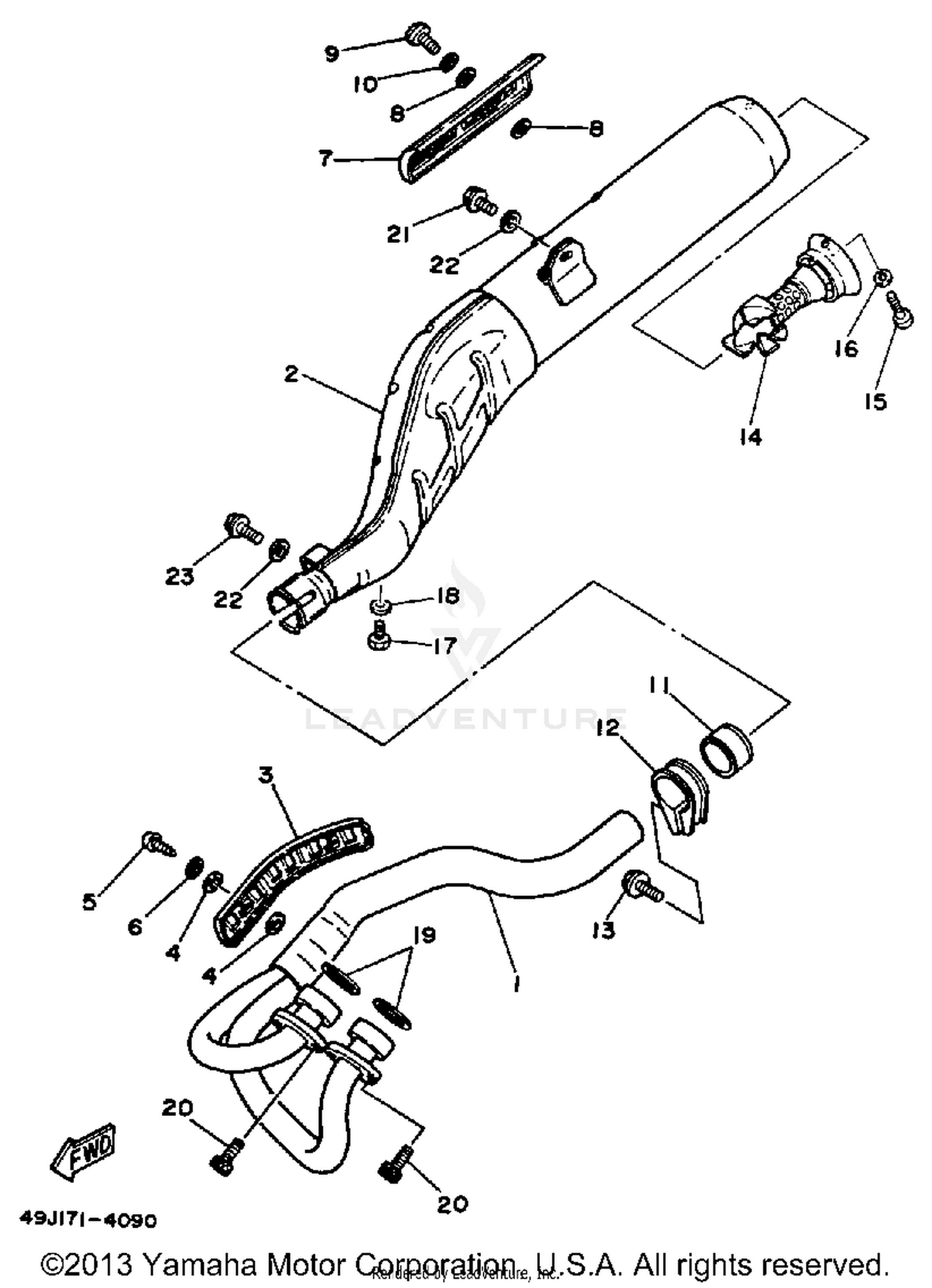

Exhaust Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PIPE, EXHAUST 1
57R-14611-00-00
|
$259.99 | ||
|
Unavailable |
|||
|
#2
MUFFLER 1
2GK-14711-00-00
Superseded by 2GK-14711-01-00
|
$316.99 | ||
|
Unavailable |
|||
|
#3
PROTECTOR, EXHAUST PIPE
55V-14628-00-00
|
$53.99 | ||
|
Unavailable |
|||
|
#4
WASHER, PROTECTOR
30X-14766-00-00
|
$2.20 | ||
|
Unavailable |
|||
|
#5
SCREW, TAPPING
90164-06017-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, WAVE
90206-06090-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
PROTECTOR, MUFFLER 2
55V-14728-00-00
|
$48.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, PLATE
90202-05187-00
|
$1.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
SCREW, BIND
98906-06010-00
Superseded by 98907-06010-00
|
$1.80 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, WAVE
90206-06090-00
|
$9.49 | ||
|
Unavailable |
|||
|
#11
GASKET, MUFFLER
1T1-14714-02-00
Superseded by 4EL-14714-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BAND, MUFFLER
30X-14715-00-00
|
$44.99 | ||
|
Unavailable |
|||
|
#13
BOLT, FLANGE
95816-08045-00
Superseded by 95817-08045-00
|
$3.69 | ||
|
Available to order. Add to View Price |
|||
|
#14
PIPE, OUTLET
42U-14752-00-00
|
$143.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW, PAN HEAD
98580-06008-00
Superseded by 97885-06008-00
|
$1.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
WASHER, SPRING
92995-06100-00
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT
90101-06576-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
WASHER, PLATE
92906-06600-00
Superseded by 92907-06600-00
|
$1.00 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
GASKET, EXHAUST PIPE
4H7-14613-00-00
Superseded by 4BR-14613-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT
91316-06025-00
Superseded by 91317-06025-00
|
$2.65 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
BOLT, FLANGE
95816-08014-00
Superseded by 95817-08014-00
|
$2.50 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
WASHER, PLATE
90201-081H4-00
Superseded by 90201-08326-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
BOLT, FLANGE
95816-08020-00
Superseded by 95817-08020-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
