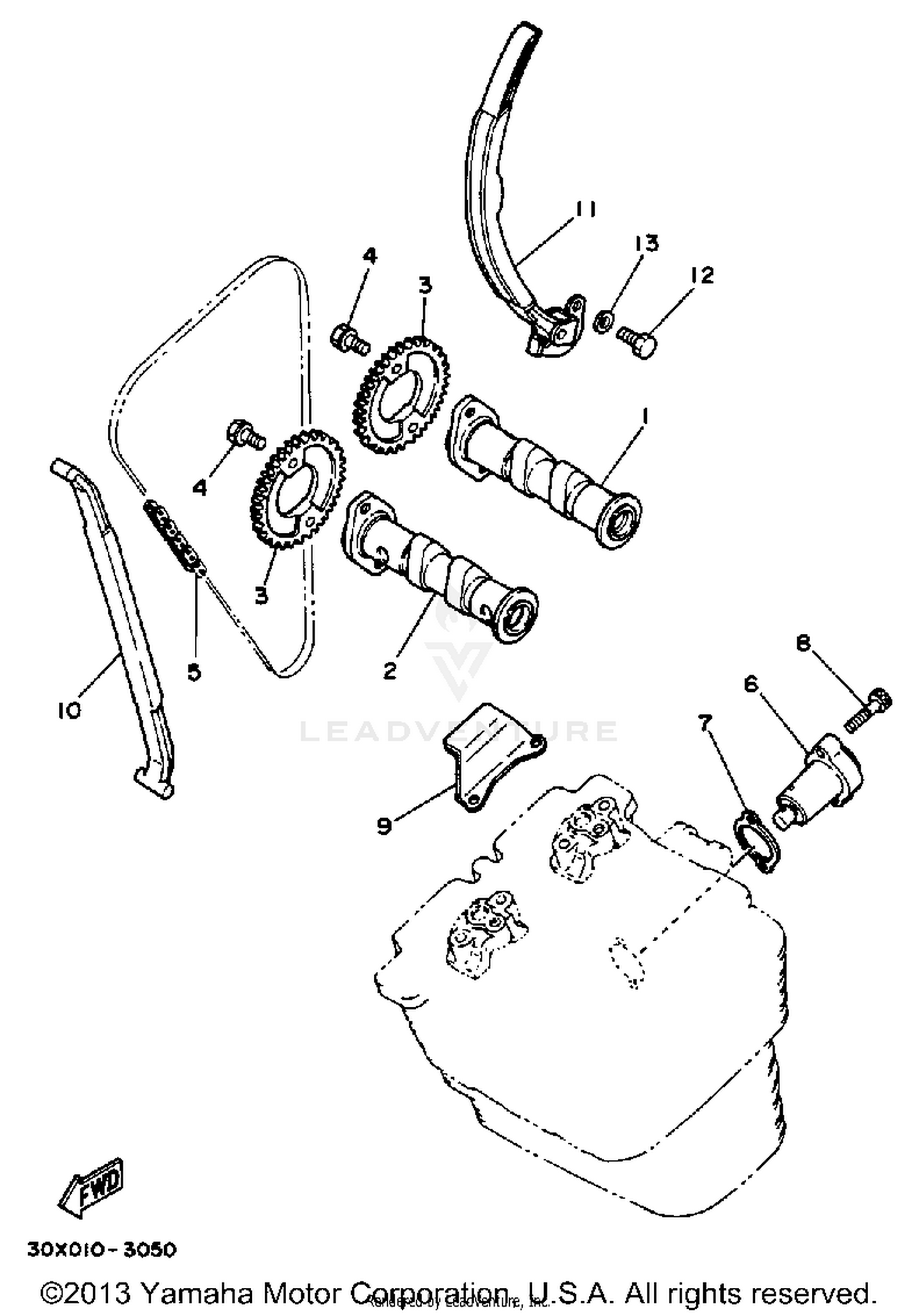

Camshaft - Chain Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CAMSHAFT 1
48Y-12171-00-00
|
$180.99 | ||
|
Unavailable |
|||
|
#2
CAMSHAFT 2
48Y-12181-00-00
|
$180.99 | ||
|
Unavailable |
|||
|
#3
SPROCKET, CAM CHAIN
30X-12176-00-00
|
$79.99 | ||
|
Unavailable |
|||
|
#4
BOLT, FLANGE
90105-07288-00
Superseded by 90105-07006-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
CHAIN (79RH2015-136M)
94590-91136-00
|
$138.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
TENSIONER ASSEMBLY, CAM CHAIN
30X-12210-00-00
|
$127.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
GASKET, TENSIONER CASE
4BE-12213-00-00
Superseded by 4FM-12213-00-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
BOLT
91316-06025-00
Superseded by 91317-06025-00
|
$2.65 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
GUIDE, STOPPER 2
30X-12241-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
DAMPER, CHAIN 1
30X-12251-00-00
|
$55.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
DAMPER, CHAIN 2
30X-12252-01-00
|
$147.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, HEXAGON DEEP R
97011-06016-00
Superseded by 97D95-06016-00
|
$2.76 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, PLATE
90201-061A5-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
