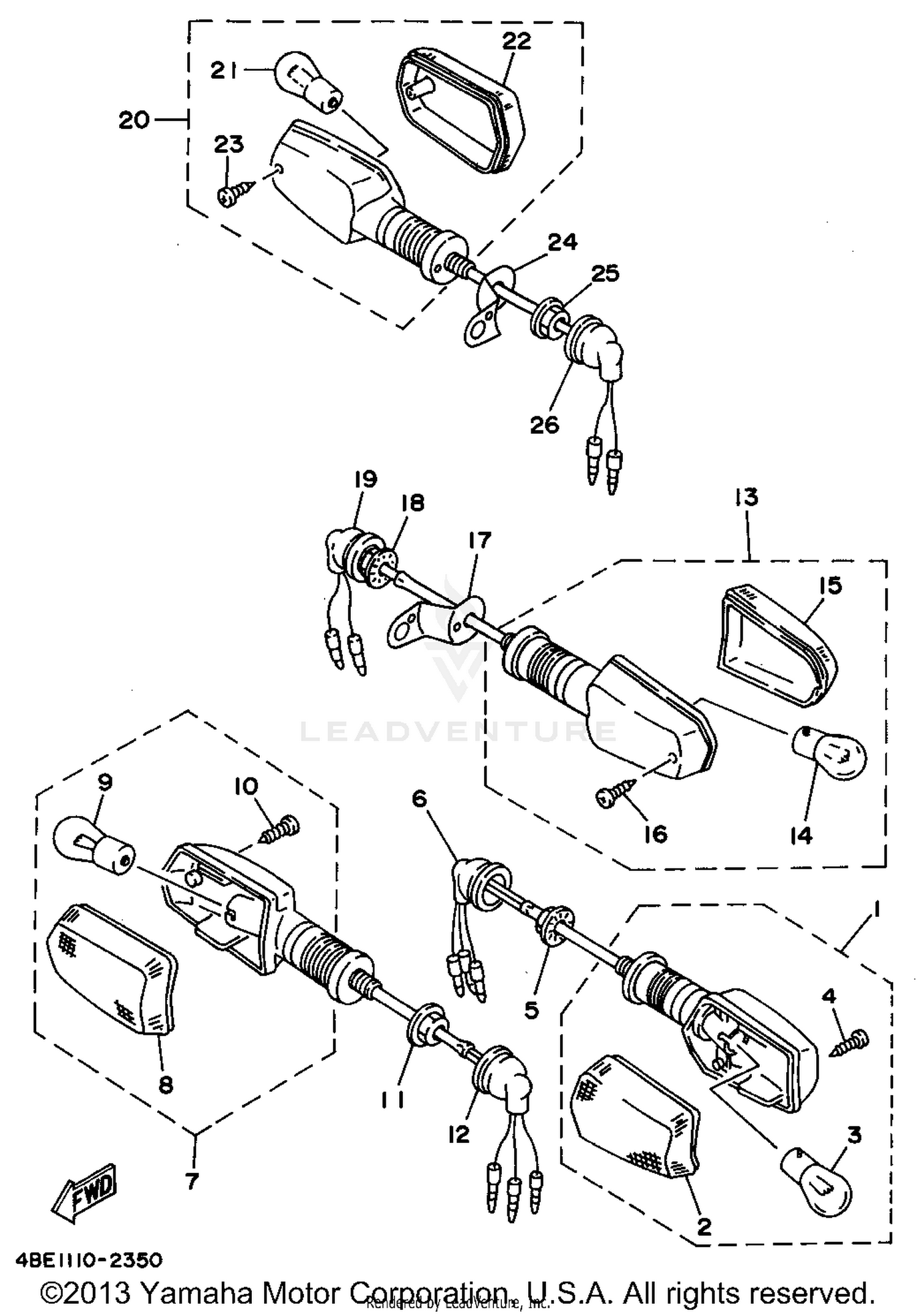

Turn Signal Flasher Light Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FLASHER LIGHT ASSY 1
1UF-83310-00-00
|
$146.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#2
LENS, FLASHER
51L-83332-01-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BULB (12V-27/8W)
256-84714-61-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW, TAPPING
97706-40620-00
Superseded by 97707-40520-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
NUT
95311-12700-00
Superseded by 95317-12700-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
CAP
18G-83365-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
FRONT FLASHER LIGHT ASSY 2
1UF-83320-00-00
|
$146.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
LENS, FLASHER 2
51L-83342-01-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BULB (12V-27/8W)
256-84714-61-00
|
$12.99 | ||
|
Unavailable |
|||
|
#10
SCREW, TAPPING
97706-40620-00
Superseded by 97707-40520-00
|
$10.49 | ||
|
Unavailable |
|||
|
#11
NUT
95311-12700-00
Superseded by 95317-12700-00
|
$9.49 | ||
|
Unavailable |
|||
|
#12
CAP
18G-83365-00-00
|
$21.99 | ||
|
Unavailable |
|||
|
#13
REAR FLASHER LIGHT ASSY 1
4BE-83330-00-00
|
$98.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BULB (12V-32CP)
256-83311-70-XX
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#15
LENS, FLASHER
51L-83332-01-00
|
$12.99 | ||
|
Unavailable |
|||
|
#16
SCREW, TAPPING
97706-40520-00
Superseded by 97707-40520-00
|
$10.49 | ||
|
Unavailable |
|||
|
#17
STAY, FLASHER 1
4BE-83368-00-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT
95311-12700-00
Superseded by 95317-12700-00
|
$9.49 | ||
|
Unavailable |
|||
|
#19
CAP
10V-83365-00-00
Superseded by 10V-83365-01-00
|
$4.35 | ||
|
Unavailable |
|||
|
#20
REAR FLASHER LIGHT ASSY 2
4BE-83340-00-00
|
$109.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
BULB (12V-32CP)
256-83311-70-XX
|
$2.35 | ||
|
Unavailable |
|||
|
#22
LENS, FLASHER 2
51L-83342-01-00
|
$12.99 | ||
|
Unavailable |
|||
|
#23
SCREW, TAPPING
97706-40520-00
Superseded by 97707-40520-00
|
$10.49 | ||
|
Unavailable |
|||
|
#24
STAY, FLASHER 2
4BE-83369-00-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
NUT
95311-12700-00
Superseded by 95317-12700-00
|
$9.49 | ||
|
Unavailable |
|||
|
#26
CAP
10V-83365-00-00
Superseded by 10V-83365-01-00
|
$4.35 | ||
|
Unavailable |
|||
