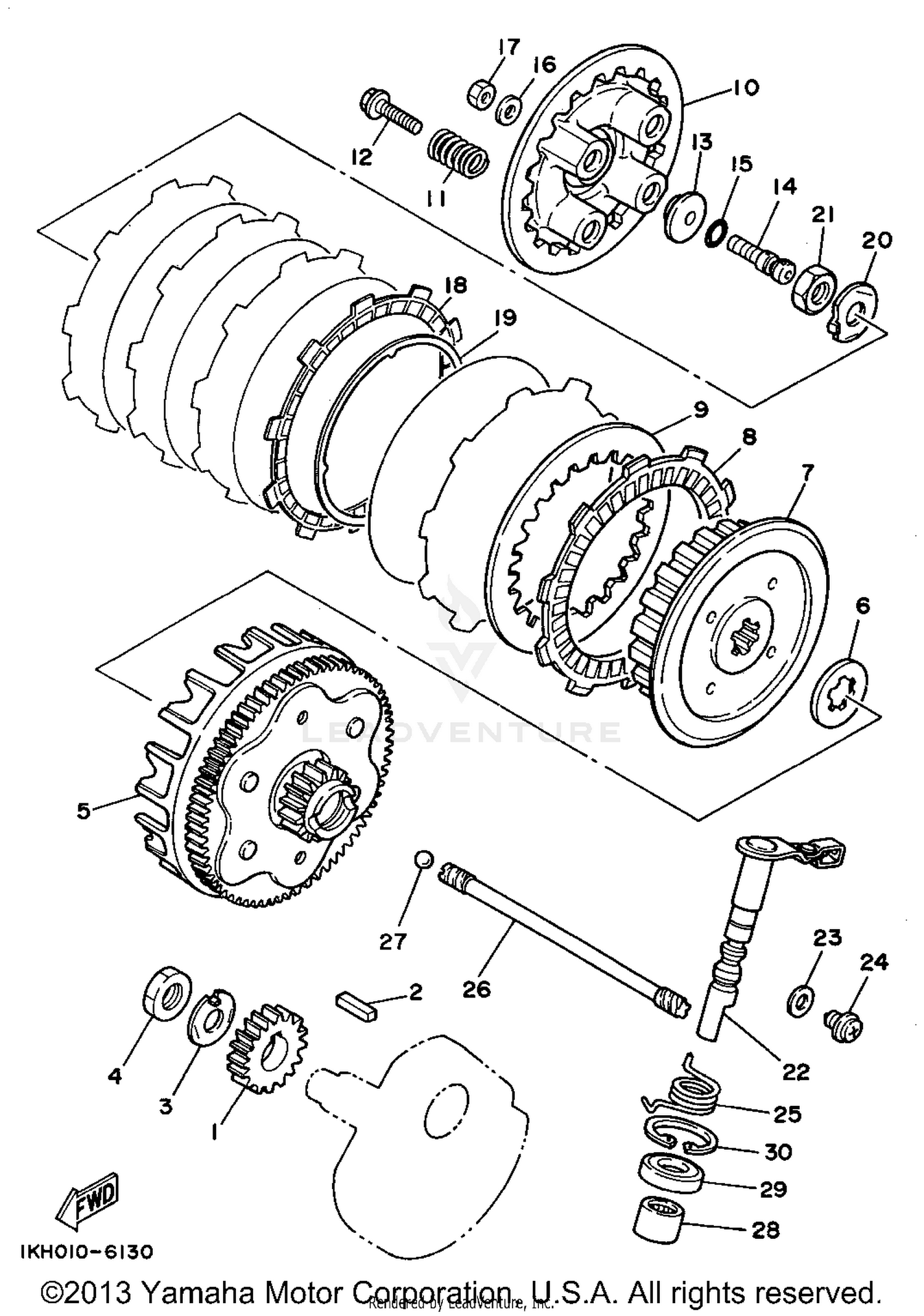

1994 Yamaha XT 225 CLUTCH OEM Parts Diagram

Air & Fuel
+
Body, Fairing & Fender
+
Dash & Gauges
+
Drive & Transmission
+
Exhaust
+
Foot Control
+
Handlebars & Controls
+
Seat
+
Item MSRP Qty
#1 GEAR, PRIMARY DRIVE (22T)
5H0-16111-00-00
$82.99
Available: Ships in 7-12 days.
Add to View Price
#2 KEY, STRAIGHT
90282-05043-00
$4.90
Available: Ships in 7-12 days.
Add to View Price
#3 WASHER, LOCK
90215-14205-00
$6.49
In Stock: Ready to ship.
Add to View Price
#4 NUT
90170-14284-00
$4.90
In Stock: Ready to ship.
Add to View Price
#5 PRIMARY DRIVEN GEAR COMP.
1KH-16150-00-00
$303.99
Available: Ships in 7-12 days.
Add to View Price
#6 PLATE, THRUST 1
2LN-16154-00-00
$19.49
Available: Ships in 7-12 days.
Add to View Price
#7 BOSS, CLUTCH
2LN-16371-00-00
$133.99
Available: Ships in 7-12 days.
Add to View Price
#8 PLATE, FRICTION
537-16321-00-00
$14.99
Available: Ships in 7-12 days.
Add to View Price
#9 PLATE, CLUTCH 1
137-16324-00-00
Superseded by 336-16324-00-00
$18.49
Available: Ships in 7-12 days.
Add to View Price
#10 PLATE, PRESSURE 1
5H0-16351-00-00
$32.99
Available: Ships in 7-12 days.
Add to View Price
#11 SPRING, COMPRESSION
90501-23700-00
$4.90
Available: Ships in 7-12 days.
Add to View Price
#12 SCREW, WITH WASHER
90159-05011-00
$2.20
Available: Ships in 7-12 days.
Add to View Price
#13 PLATE, PUSH
30X-16358-00-00
Superseded by 1W1-16358-01-00
$19.49
Available: Ships in 7-12 days.
Add to View Price
#14 ROD, PUSH 1
4JG-16356-00-00
$24.99
Available: Ships in 7-12 days.
Add to View Price
#15 O-RING
93210-48364-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#16 WASHER, PLAIN
92990-06200-00
$5.49
In Stock: Ready to ship.
Add to View Price
#17 NUT, U FLANGE
95601-06200-00
Superseded by 95604-06200-00
$6.49
In Stock: Ready to ship.
Add to View Price
#18 PLATE, FRICTION
36X-16321-00-00
$14.99
Available: Ships in 7-12 days.
Add to View Price
#19 SPRING,CUSHION
1KH-16383-00-00
$33.99
Available: Ships in 7-12 days.
Add to View Price
#20 WASHER, LOCK
90215-14224-00
Superseded by 90215-14186-00
$4.90
Available: Ships in 7-12 days.
Add to View Price
#21 NUT
90170-14284-00
$4.90
Unavailable
#22 PUSH LEVER ASSEMBLY
1KH-16380-01-00
$74.99
Unavailable
#23 WASHER, PLATE
90201-08087-00
$6.49
In Stock: Ready to ship.
Add to View Price
#24 SCREW
90149-08067-00
$4.35
Available: Ships in 7-12 days.
Add to View Price
#25 SPRING, TORSION
90508-16708-00
$3.70
Unavailable
#26 ROD, PUSH 2
5H0-16357-00-00
$32.99
Available: Ships in 7-12 days.
Add to View Price
#27 BALL
93505-16006-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
#28 BEARING
93315-31428-00
$23.99
Available: Ships in 7-12 days.
Add to View Price
#29 OIL SEAL
93102-14209-00
$8.49
In Stock: Ready to ship.
Add to View Price
#30 CIRCLIP
93420-28055-00
$6.49
Available: Ships in 7-12 days.
Add to View Price
