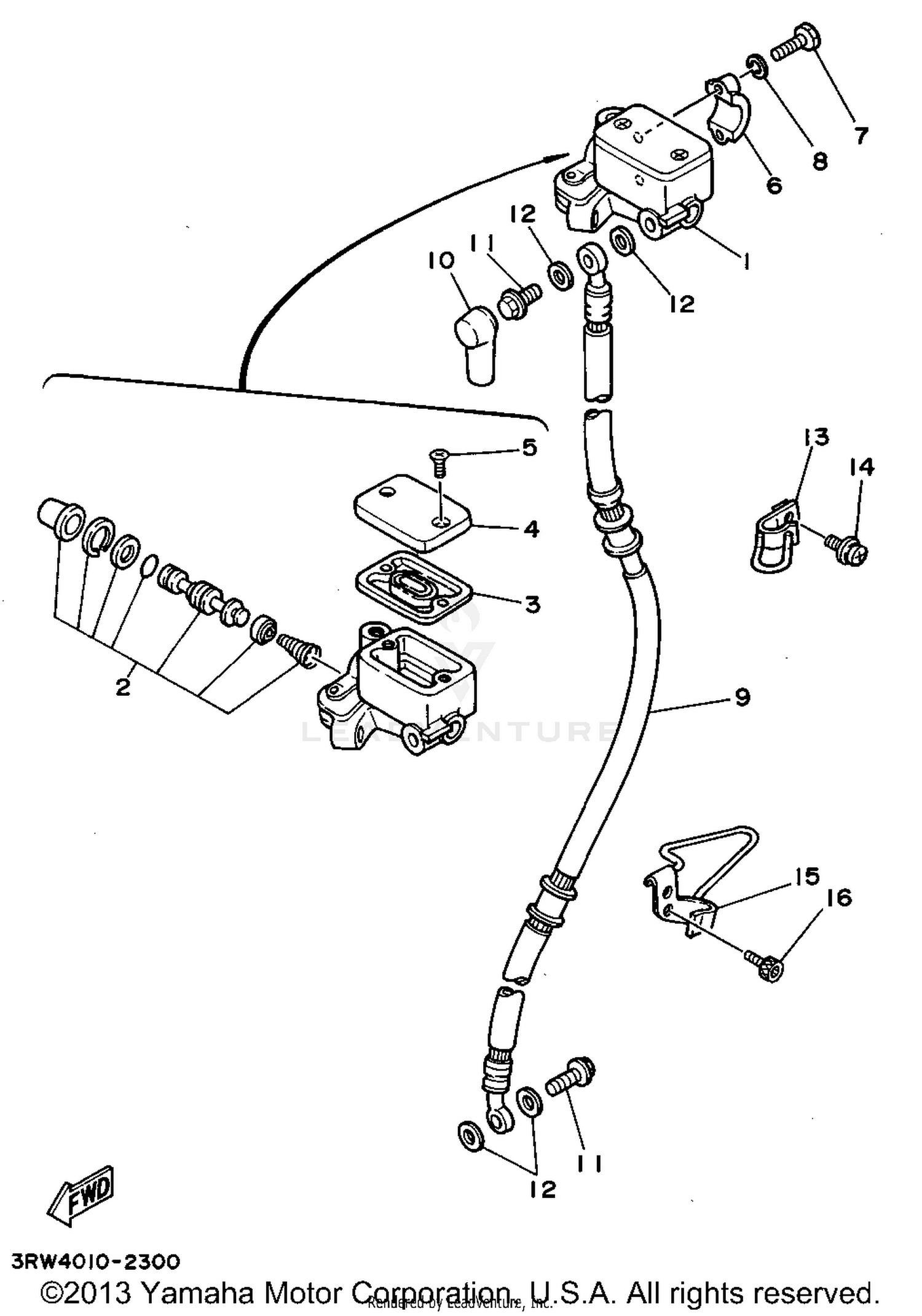

Front Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MASTER CYLINDER SUB ASSY
3RW-25870-02-00
Superseded by 4GY-25870-02-00
|
$303.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
CYLINDER KIT, MAST
3RW-W0041-02-00
Superseded by 5RS-25807-03-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
DIAPHRAGM, RESERVOIR
3RW-25854-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
CAP, RESERVOIR
3RW-25852-00-00
Superseded by 4GY-25852-01-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW, FLAT HEAD
98706-04012-00
Superseded by 98707-04012-00
|
$1.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
BRACKET, MASTER CYLINDER
56A-25867-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT
97016-06025-00
Superseded by 97017-06025-00
|
$4.55 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
WASHER, SPRING
92906-06100-00
Superseded by 92907-06100-00
|
$1.30 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
HOSE,BRAKE 1
3RW-25872-01-00
Superseded by 99999-02491-00
|
$99.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOOT, MASTER CYLINDER
4L0-25862-00-00
Superseded by 4L0-25862-01-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
BOLT, UNION
90401-10034-00
Superseded by 90401-10159-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, PLATE
90201-10118-00
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#13
HOLDER, BRAKE HOSE 1
3RW-25875-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, WITH WASHER
90119-06108-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
HOLDER, BRAKE HOSE 2
34X-25876-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT
91316-06010-00
Superseded by 91317-06010-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
