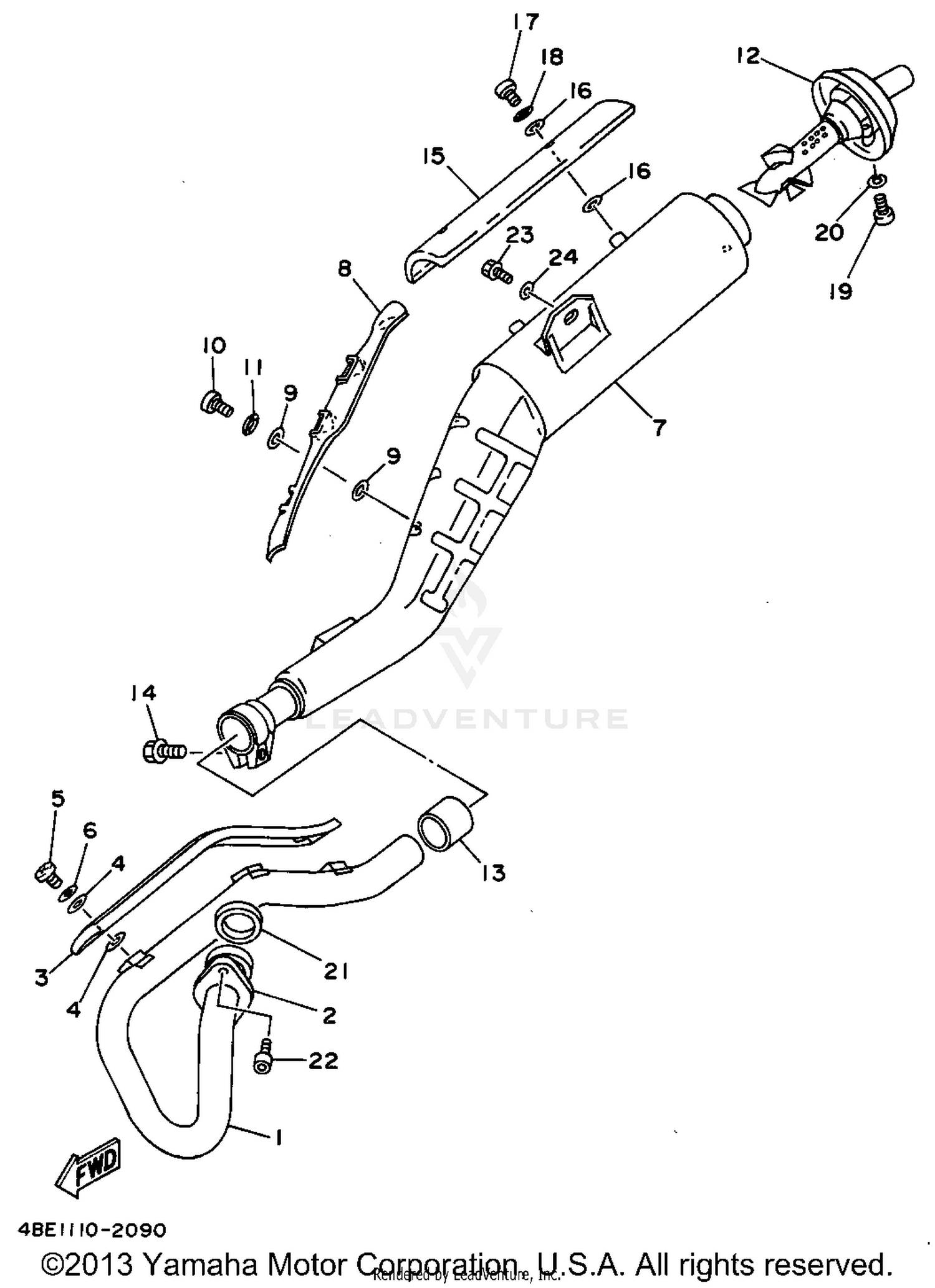

Exhaust Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PIPE, EXHAUST 1
3RW-14611-00-00
|
$254.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
NUT, RING
5H0-14612-00-00
Superseded by 5H0-14612-01-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
PROTECTOR, EXHAUST PIPE
3RW-14628-00-00
|
$91.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, PROTECTOR
4BD-14766-00-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW, BIND
98980-06010-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
WASHER, WAVE
90206-06090-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
MUFFLER 1
4BE-14711-00-00
|
$306.45 | ||
|
Available to order. Add to View Price |
|||
|
#8
PROTECTOR, MUFFLER 2
1KH-14728-01-00
|
$38.99 | ||
|
Unavailable |
|||
|
#9
WASHER, PROTECTOR
4BD-14766-00-00
|
$5.99 | ||
|
Unavailable |
|||
|
#10
SCREW, BIND
98906-06010-00
Superseded by 98907-06010-00
|
$1.80 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, WAVE
90206-06090-00
|
$9.49 | ||
|
Unavailable |
|||
|
#12
PIPE, OUTLET
1RH-14752-00-00
Superseded by 1RH-14752-01-00
|
$153.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
GASKET, MUFFLER
3YF-14714-00-00
|
$39.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
BOLT, FLANGE (95026-08025-00)
99999-01790-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
PROTECTOR, MUFFLER 2
3TB-14728-00-00
|
$130.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, PROTECTOR
4BD-14766-00-00
|
$5.99 | ||
|
Unavailable |
|||
|
#17
SCREW, BIND
98980-06010-00
|
$10.49 | ||
|
Unavailable |
|||
|
#18
WASHER, WAVE
90206-06090-00
|
$9.49 | ||
|
Unavailable |
|||
|
#19
SCREW, PAN HEAD
98580-06010-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, SPRING
92995-06100-00
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#21
GASKET, EXHAUST PIPE
4BE-14613-00-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, HEXAGON SOCKET HEAD
91311-06020-00
Superseded by 91314-06020-00
|
$2.65 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
BOLT
90109-085E2-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
WASHER, PLATE
90201-081H4-00
Superseded by 90201-08326-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
