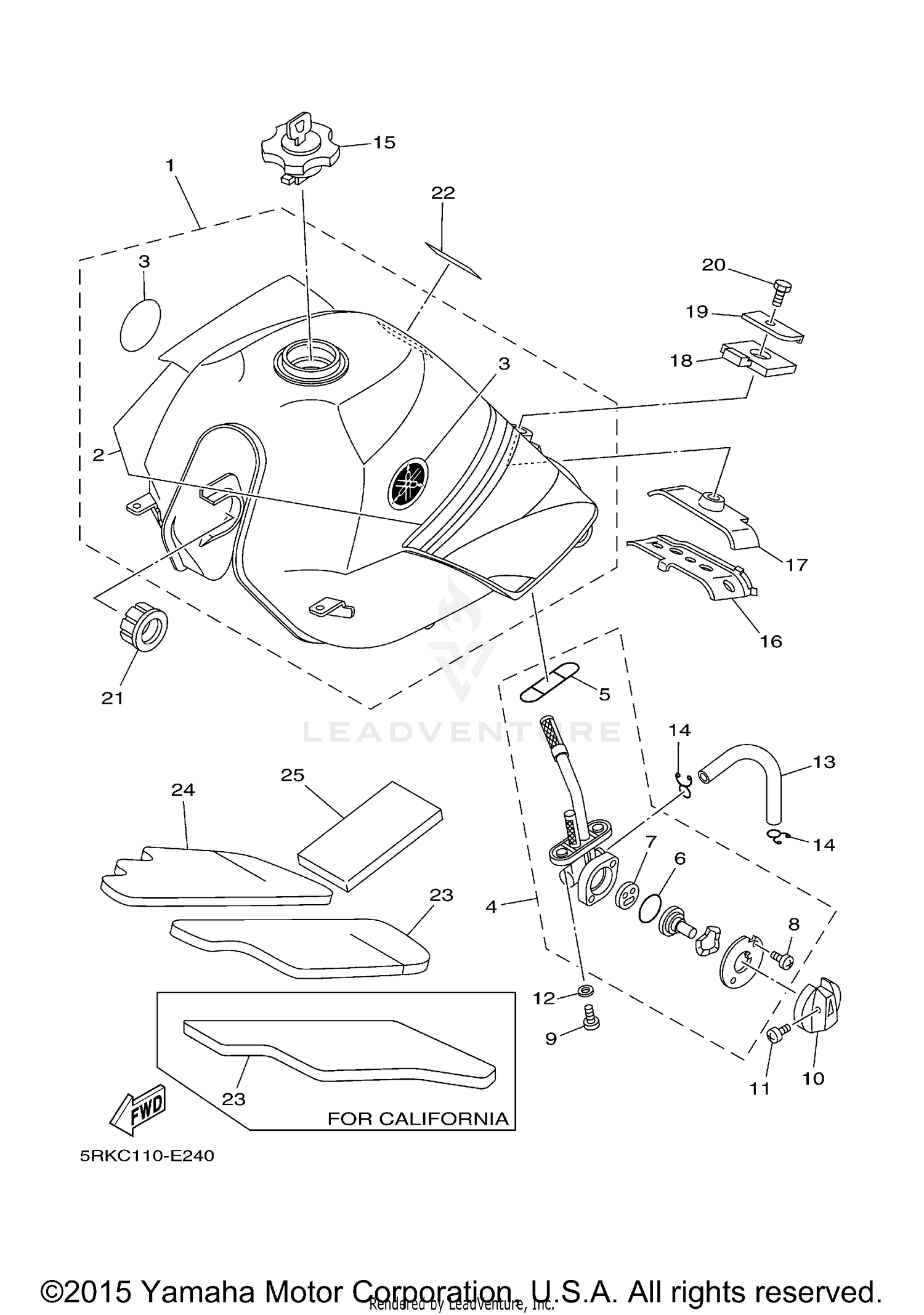

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK COMP.
3RW-Y2410-00-09
|
$823.99 | ||
|
Available to order. Add to View Price |
|||
|
#
FUEL TANK COMP.
4BE-Y2410-00-09
|
$817.99 | ||
|
Unavailable |
|||
|
#2
GRAPHIC SET
5RK-24240-40-00
|
$165.99 | ||
|
Unavailable |
|||
|
#3
EMBLEM
5VX-2411B-10-00
|
$19.99 | ||
|
Unavailable |
|||
|
#4
FUEL COCK ASSY 1
3RW-24500-01-00
|
$88.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
O-RING
4X8-24512-00-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
SEAL, COCK
3AJ-24534-01-00
|
$11.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
VALVE PACKING
3AC-24523-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW, PAN HEAD
98517-03008-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW
90149-06011-00
|
$2.05 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
LEVER, COCK
4FD-24524-00-00
Superseded by 1YH-F4524-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW, PAN HEAD
90157-03122-00
Superseded by 98517-03008-00
|
$3.20 | ||
|
Unavailable |
|||
|
#12
WASHER, PLATE
90202-05193-00
Superseded by 90202-05187-00
|
$1.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
HOSE (L110)
90445-10007-00
Superseded by 90445-10752-00
|
$5.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
CLIP
90467-09006-00
Superseded by 90467-090A2-00
|
$4.75 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
CAP ASSY
51K-24602-01-00
Superseded by 51K-24602-10-00
|
$131.99 | ||
|
Available to order. Add to View Price |
|||
|
#
CAP ASSY
11H-24602-03-00
Superseded by 11H-24602-10-00
|
$110.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, SPECIAL
1KH-24187-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
DAMPER, LOCATING 2
1KH-24182-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
DAMPER, LOCATING 3
30X-24183-01-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, SPECIAL
30X-24186-01-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT
97007-06012-00
Superseded by 97017-06012-00
|
$4.05 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
DAMPER, LOCATING 1
4H7-24181-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
LABEL, CAUTION
5GK-2118K-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
DAMPER, PLATE 1
4BE-2414H-00-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#
DAMPER, PLATE 1
3RW-2414H-00-00
|
$7.99 | ||
|
Unavailable |
|||
|
#24
DAMPER, PLATE 2
3RW-2414J-00-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
SEAT, DAMPER A
M12-T133A-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
