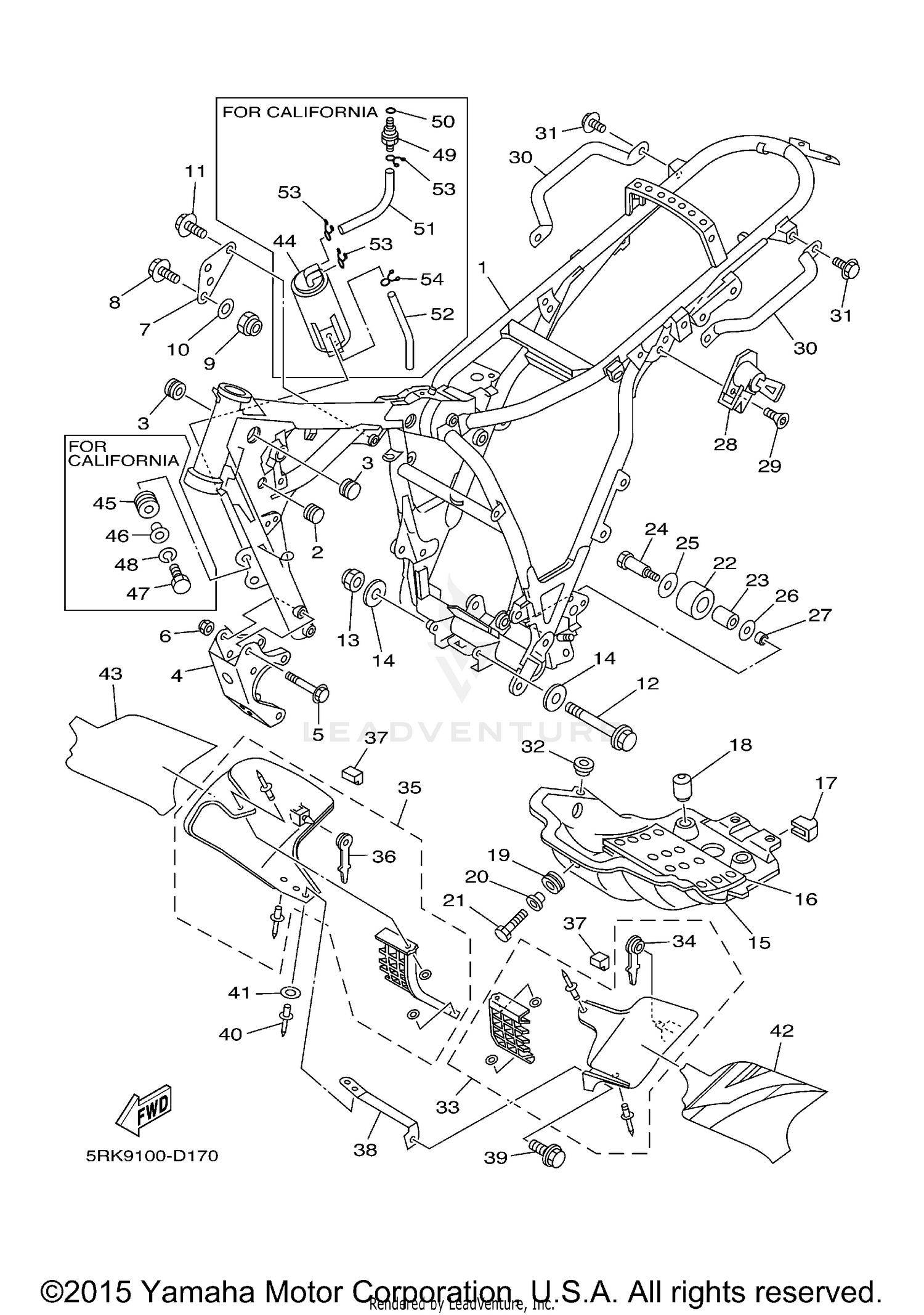

2007 Yamaha XT 225 FRAME OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME COMP.
4FD-21110-12-P1
|
$1,064.99 | ||
|
Unavailable |
|||
|
#
FRAME COMP.
4BE-21110-22-P1
|
$1,148.99 | ||
|
Unavailable |
|||
|
#2
PLUG
90338-15202-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
PLUG
90338-24177-00
Superseded by 90338-24260-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#4
STAY, ENGINE 3
3RW-21316-01-PA
|
$72.99 | ||
|
Available to order. Add to View Price |
|||
|
#
STAY, ENGINE 3
4BE-21316-00-P3
|
$51.99 | ||
|
Unavailable |
|||
|
#5
BOLT, FLANGE
90105-08721-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT, SELF-LOCKING
95607-08200-00
Superseded by 90185-08169-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
STAY, ENGINE 2
1KH-21315-01-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, FLANGE
95817-08050-00
|
$3.50 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
NUT, SELF-LOCKING
95607-08200-00
Superseded by 90185-08169-00
|
$6.99 | ||
|
Unavailable |
|||
|
#10
WASHER, PLATE
90201-08366-00
Superseded by 90201-094G1-00
|
$6.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
BOLT, FLANGE
90105-08408-00
Superseded by 90105-08066-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE
90105-08024-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT, SELF-LOCKING
95607-08200-00
Superseded by 90185-08169-00
|
$6.99 | ||
|
Unavailable |
|||
|
#14
WASHER, PLATE
90201-08366-00
Superseded by 90201-094G1-00
|
$6.99 | ||
|
Unavailable |
|||
|
#15
PROTECTOR, ENGINE
3RW-21471-00-00
Superseded by 4VW-21471-00-00
|
$208.99 | ||
|
Unavailable |
|||
|
#16
DAMPER, RUBBER 1
1KH-21485-00-00
|
$68.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
DAMPER, RUBBER 1
36X-21485-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
DAMPER, RUBBER 1
34L-21485-00-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
GROMMET
90480-14023-00
|
$6.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
COLLAR
90387-07391-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT
97027-06025-00
Superseded by 97017-06025-00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#22
TENSIONER
30X-22178-00-00
|
$30.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
BUSH
4V4-22184-00-00
|
$3.25 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
BOLT
90109-08705-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, PLATE
90201-13409-00
Superseded by 90201-133P2-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER, PLATE
90201-08753-00
Superseded by 90201-081R9-00
|
$6.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
COLLAR
90387-085E1-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
HELMET HANGER ASSY
5H0-21308-01-00
|
$75.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
SCREW, COUNTERSUNK
90151-06025-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
HANDLE, STANDING
4JG-21165-20-00
|
$67.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT,FLANGE (JN5)
95807-08016-00
Superseded by 95817-08016-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
SEAL 1
2J5-21732-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
SCOOP COMP. AIR 1
3RW-W2131-10-00
|
$90.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
GROMMET
90480-14448-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
SCOOP COMP. AIR 2
4BE-W2132-00-00
|
$159.99 | ||
|
Unavailable |
|||
|
#36
GROMMET
90480-14448-00
|
$16.49 | ||
|
Unavailable |
|||
|
#37
GROMMET
90480-16185-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
BRACKET, COVER
4BE-2139T-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
BOLT, WITH WASHER
90119-06094-00
Superseded by 90119-06242-00
|
$6.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#40
RIVET, BLIND
90267-40075-00
Superseded by 90267-40080-00
|
$4.55 | ||
|
Unavailable |
|||
|
#41
WASHER, PLATE
90201-04018-00
Superseded by 90201-044H9-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
GRAPHIC, FUEL TANK 1
5RK-24244-40-00
|
$57.99 | ||
|
Unavailable |
|||
|
#43
GRAPHIC, FUEL TANK 2
5RK-24245-40-00
|
$57.99 | ||
|
Available to order. Add to View Price |
|||
|
#44
CANISTER ASSY
4BE-24170-00-00
|
$375.99 | ||
|
Available to order. Add to View Price |
|||
|
#45
GROMMET
90480-15342-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#46
COLLAR
90387-063G3-00
|
$5.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#47
BOLT
97007-06025-00
Superseded by 97017-06025-00
|
$3.50 | ||
|
Unavailable |
|||
|
#48
WASHER, SPRING
92907-06100-00
|
$6.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#49
ROLL OVER VALVE ASSY
20K-24180-00-00
|
$119.99 | ||
|
Available to order. Add to View Price |
|||
|
#50
O-RING
93210-10166-00
Superseded by 93210-11453-00
|
$6.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#51
HOSE
90445-10017-00
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#52
HOSE (L210)
90445-110F5-00
|
$22.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#53
CLIP
90467-09006-00
Superseded by 90467-090A2-00
|
$3.50 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#54
CLIP
90467-11106-00
|
$3.50 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
