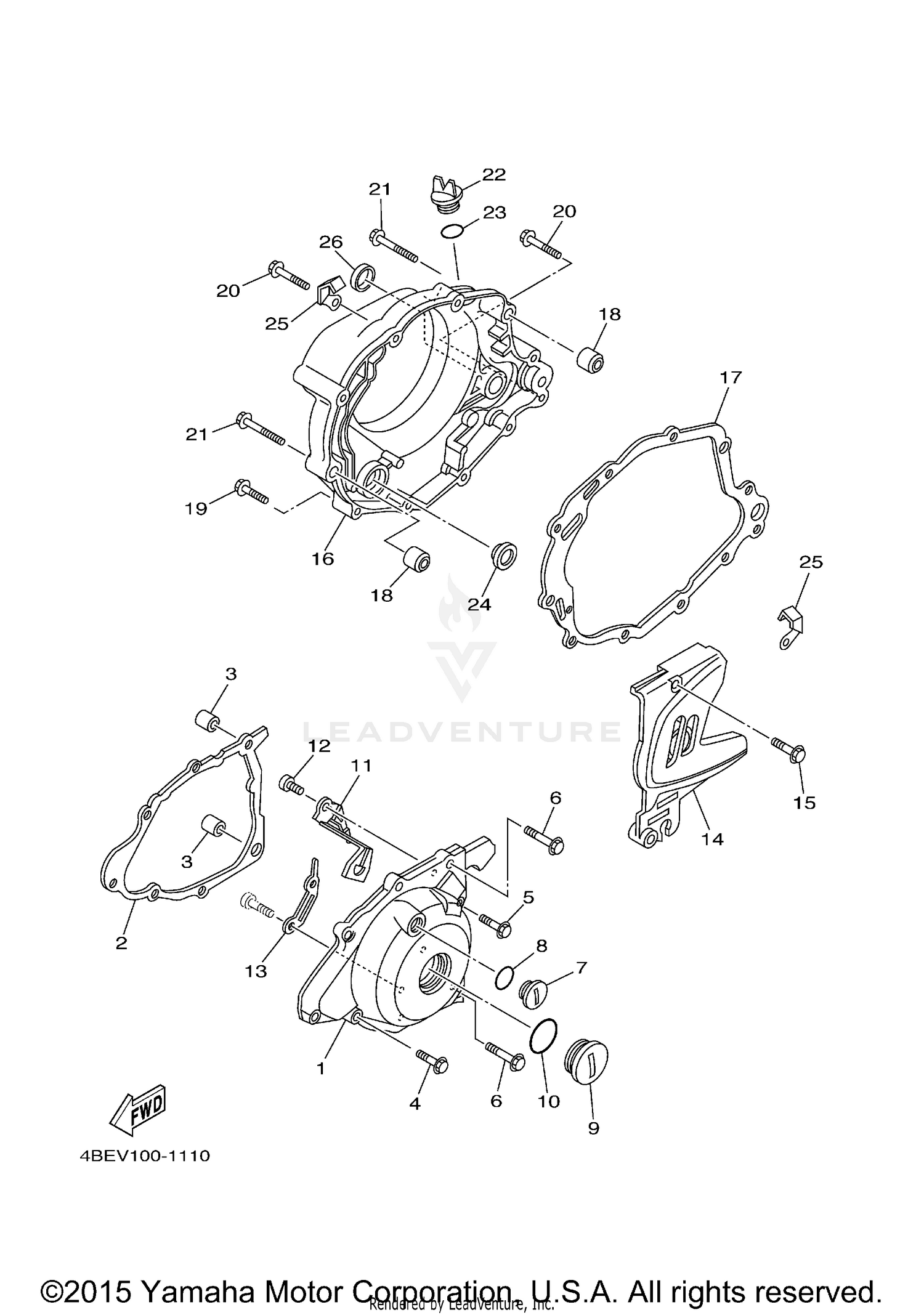

Crankcase Cover 1 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, CRANKCASE 1
5RK-15411-00-00
|
$124.99 | ||
|
Unavailable |
|||
|
#2
GASKET, CRANKCASE COVER 1
4BE-15451-03-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIN, DOWEL
99530-12016-00
|
$4.89 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, FLANGE
95027-06025-00
|
$4.16 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
BOLT, FLANGE
90105-06017-00
Superseded by 95027-06025-00
|
$4.16 | ||
|
Unavailable |
|||
|
#6
BOLT, FLANGE
90105-06014-00
Superseded by 95027-06035-00
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#7
PLUG, STRAIGHT SCREW
90340-14117-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
O-RING
93210-14369-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
PLUG, STRAIGHT SCREW
90340-32080-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
O-RING
93210-32172-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
CLAMP
90465-08364-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT
91317-06010-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
CLAMP
90462-16213-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
CRANKCASE COVER ASSY 2
5RK-15420-00-00
|
$48.99 | ||
|
Unavailable |
|||
|
#15
BOLT, FLANGE
95027-06025-00
|
$4.16 | ||
|
Unavailable |
|||
|
#16
COVER, CRANKCASE 3
5RK-15431-00-00
|
$261.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
GASKET, CRANKCASE COVER 3
4BE-15462-00-00
|
$37.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
PIN, DOWEL
99530-12016-00
|
$4.89 | ||
|
Unavailable |
|||
|
#19
BOLT, FLANGE
95027-06025-00
|
$4.16 | ||
|
Unavailable |
|||
|
#20
BOLT, FLANGE
95027-06035-00
|
$2.40 | ||
|
Unavailable |
|||
|
#21
BOLT, FLANGE
95027-06045-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#22
PLUG, OIL
3Y1-15363-00-00
Superseded by 3Y1-15363-10-00
|
$19.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
O-RING
93210-19123-00
|
$8.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
GAUGE, LEVEL
3Y1-15361-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
CLAMP
90462-08225-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
PLUG, BLIND 1
55X-15167-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
