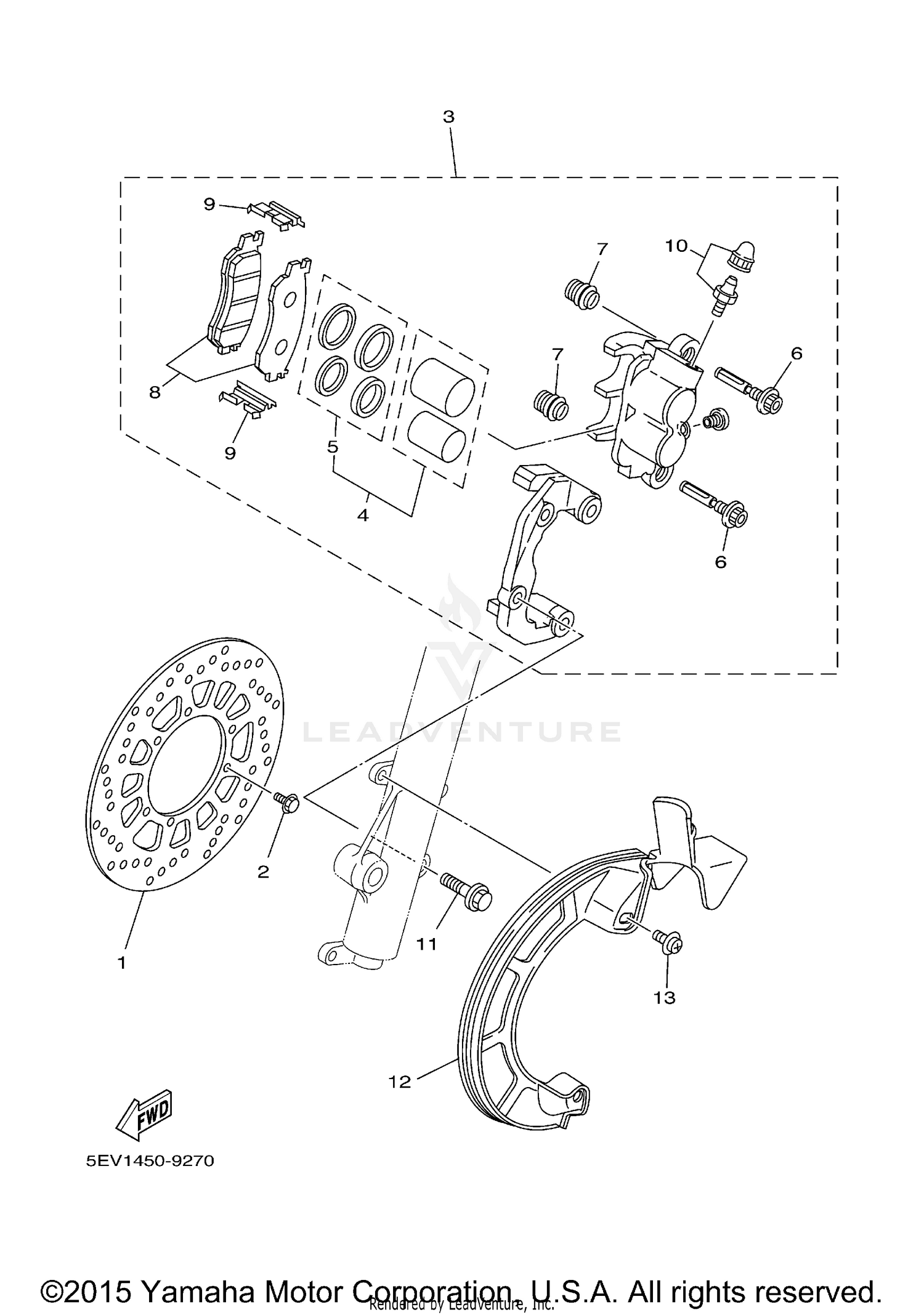

Front Brake Caliper Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DISC, BRAKE (LEFT)
5XT-2582T-00-00
|
$100.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT, FLANGE
90109-065G4-00
Superseded by 90105-06109-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
CALIPER ASSY (LEFT)
4JG-2580T-01-00
|
$416.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
PISTON ASSY, CALIPER
4JG-W0057-00-00
Superseded by 4JG-25802-00-00
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
CALIPER SEAL KIT
4JG-W0047-00-00
Superseded by 4JG-25803-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
PIN, SLIDE
5JW-25914-00-00
Superseded by 5JW-25914-10-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOOT 2
4TT-25937-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BRAKE PAD KIT
4JG-W0045-00-00
Superseded by 3C5-25805-00-00
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SUPPORT, PAD
4TT-25919-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BLEED SCREW KIT
51L-W0048-00-00
Superseded by 15B-W0048-00-00
|
$21.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
BOLT, FLANGE
90105-10638-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
COVER 1
34X-25715-00-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW, WITH WASHER
90159-06181-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
