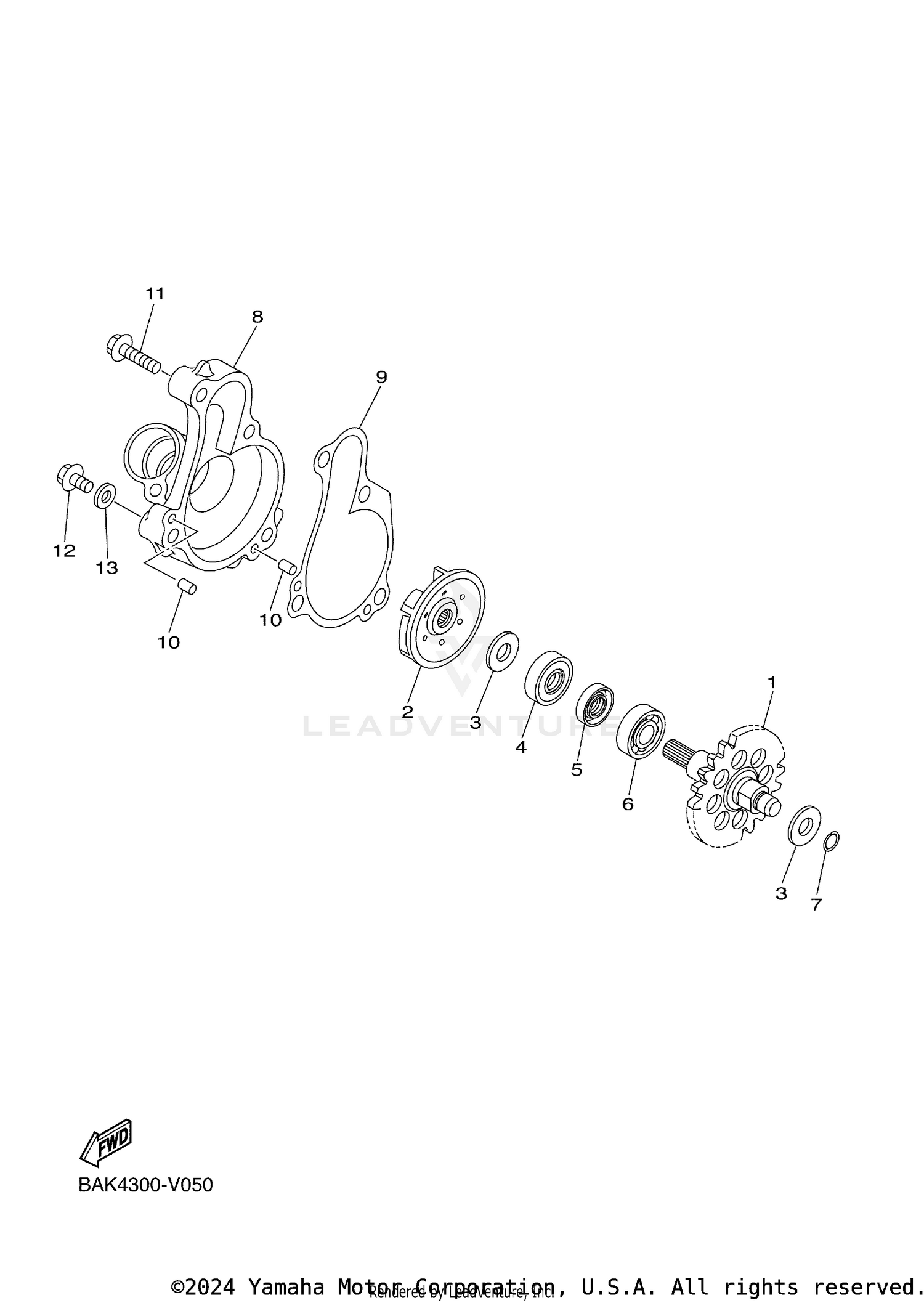

Water Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GEAR, IMPELLER SHAFT
BAJ-12459-10-00
|
$176.99 | ||
|
Unavailable |
|||
|
#2
IMPELLER, WATER PUMP
BAJ-12451-00-00
|
$96.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER, PLATE
90201-08512-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
OIL SEAL
93102-12008-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
OIL SEAL
93102-12442-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
BEARING
93306-90105-00
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
CIRCLIP
93440-07182-00
|
$4.10 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
COVER, HOUSING
33D-12422-00-00
|
$109.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
GASKET, HOUSING COVER 1
33D-12427-00-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
PIN, DOWEL
93604-10011-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
BOLT, FLANGE DEEP RECESS
95E32-06025-00
|
$0.50 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE DEEP RE
95E32-06010-00
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#13
GASKET
90430-06014-00
|
$8.60 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
