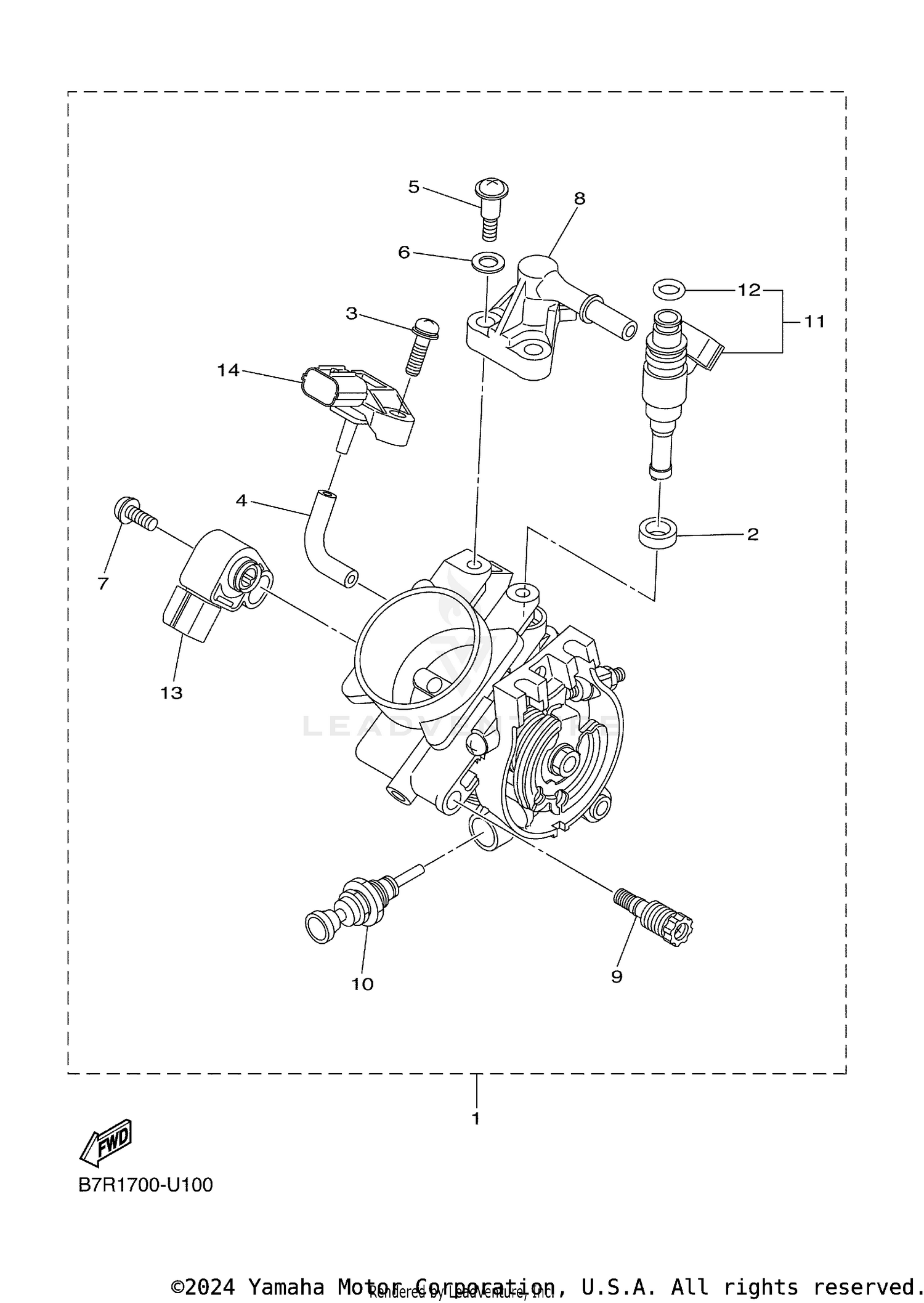

Intake 2 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
THROTTLE BODY ASSY
BAK-13750-01-00
|
|||
|
Unavailable |
|||
|
#2
RUBBER, INJECTOR
8FP-13556-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCREW
2C0-14216-00-00
|
$4.20 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIPE 1
BR9-14348-00-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW, ROD
BR9-14486-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
GASKET
363-14198-00-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW
8CC-14216-10-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
DELIVERY PIPE ASSY 1
BR9-13160-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
ADJUST SCREW SET
5VX-14503-00-00
|
$92.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
STARTER SET
BR9-1410A-01-00
|
$73.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
INJECTOR
4C8-13761-00-00
|
$185.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
O-RING
5PS-14147-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
THROTTLE SENSOR AS
BR9-85885-01-00
|
$81.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
SENSOR, PRESSURE
2C0-82380-00-00
Superseded by 1WS-82380-00-00
|
$209.99 | ||
|
Available to order. Add to View Price |
|||
