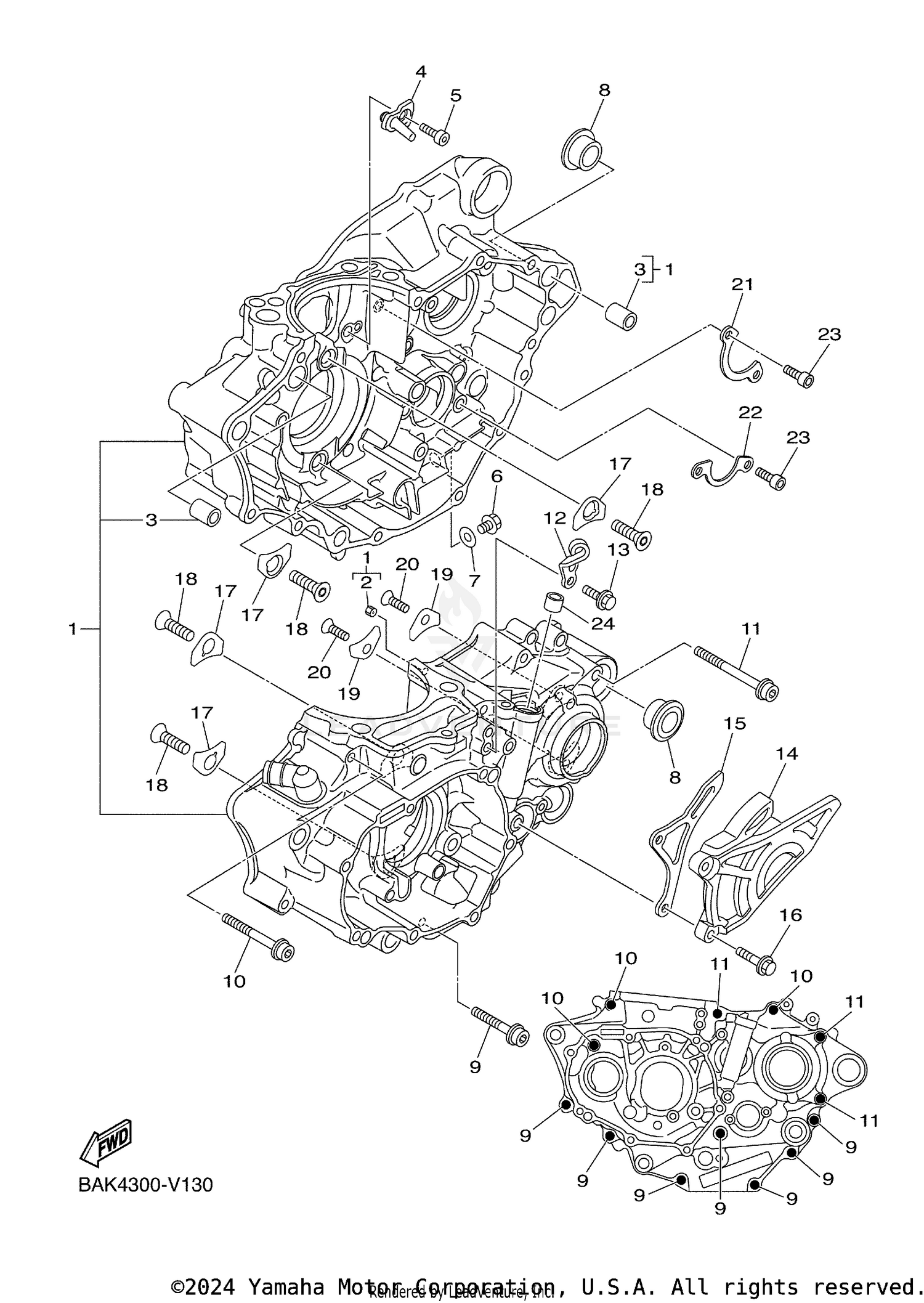

Crankcase Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKCASE ASSY
BAJ-15100-19-00
|
$1,341.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
NOZZLE 1
B7B-15138-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIN, DOWEL A
99530-14016-00
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#4
NOZZLE 3
1SM-15155-10-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT
90110-05032-00
Superseded by 91317-05012-00
|
$2.75 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, FLANGE DEEP RE
95E32-10016-00
|
$1.60 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
GASKET
90430-10188-00
|
$7.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
COLLAR
90387-17018-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, HEXAGON SOCKET HEAD
90110-06391-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, HEXAGON SOCKET HEAD
90110-06363-00
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, HEXAGON SOCKET HEAD
90110-06392-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#12
HOLDER, CLUTCH CABLE
1SL-15441-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE
90105-06099-00
Superseded by 90105-06100-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
COVER, CRANKCASE 2
1SL-15421-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
GUIDE, CHAIN
1SL-17466-00-00
|
$19.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
BOLT, FLANGE
90105-06189-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
PLATE, BEARING COVER
18P-15383-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW, COUNTERSUNK
90151-08007-00
Superseded by 90151-08008-00
|
$2.60 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
PLATE, BEARING COVER
4JT-15381-01-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW
90151-06053-00
Superseded by 90151-06052-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
PLATE, BEARING COVER
BAJ-15388-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
PLATE, STOPPER 2
1SL-18562-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT
90110-06182-00
Superseded by 91317-06012-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
BEARING
93317-106B4-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
