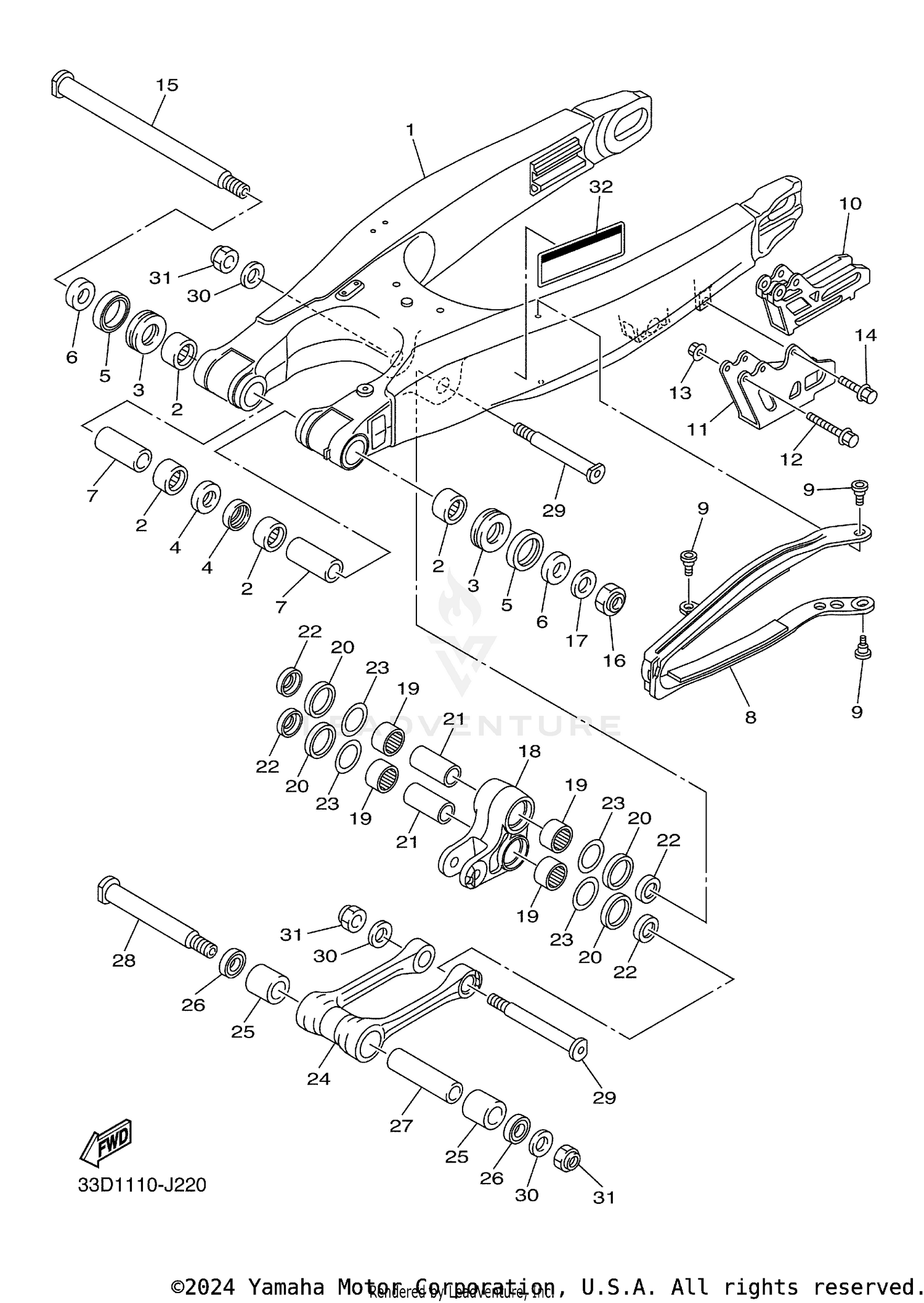

Rear Arm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REAR ARM COMP.
BEX-22110-00-00
|
$1,014.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BEARING
93317-22262-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BEARING
93342-22217-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
OIL SEAL
93106-22002-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
OIL SEAL
93109-28043-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
COLLAR
90387-17019-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
COLLAR
90387-1714S-00
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SEAL, GUARD
34P-22151-01-00
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW, 1
1C3-22969-90-00
|
$7.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
SUPPORT, CHAIN
2S2-22199-70-00
|
$75.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
COVER, THRUST 1
2S2-22128-70-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE DEEPREC
95E32-06050-00
|
$0.50 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT, WITH WASHER
95702-06500-00
|
$2.60 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
BOLT, FLANGE DEEP RE
95E32-06010-00
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#15
SHAFT, PIVOT
33D-22141-00-00
|
$71.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT, SELF-LOCKING
90185-16002-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, PLATE
90201-16018-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
ARM, RELAY
17D-2217A-00-00
|
$190.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BEARING
93315-32166-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
OIL SEAL
93109-25001-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
COLLAR
90387-16026-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER
90209-16011-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, PLATE
90201-21014-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
ROD, CONNECTING 1
BR9-2217F-00-00
|
$206.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
BEARING
93315-32166-00
|
$31.99 | ||
|
Unavailable |
|||
|
#26
OIL SEAL
93109-21001-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
COLLAR
90387-14016-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
SHAFT 1
5XC-22121-91-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
SHAFT 2
34P-22122-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
WASHER, PLATE
90201-14020-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
NUT, SELF-LOCKING
90185-14010-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
LABEL, TIRE
3RV-21668-A0-00
Superseded by 3RV-21668-A1-00
|
$5.49 | ||
|
Unavailable |
|||
