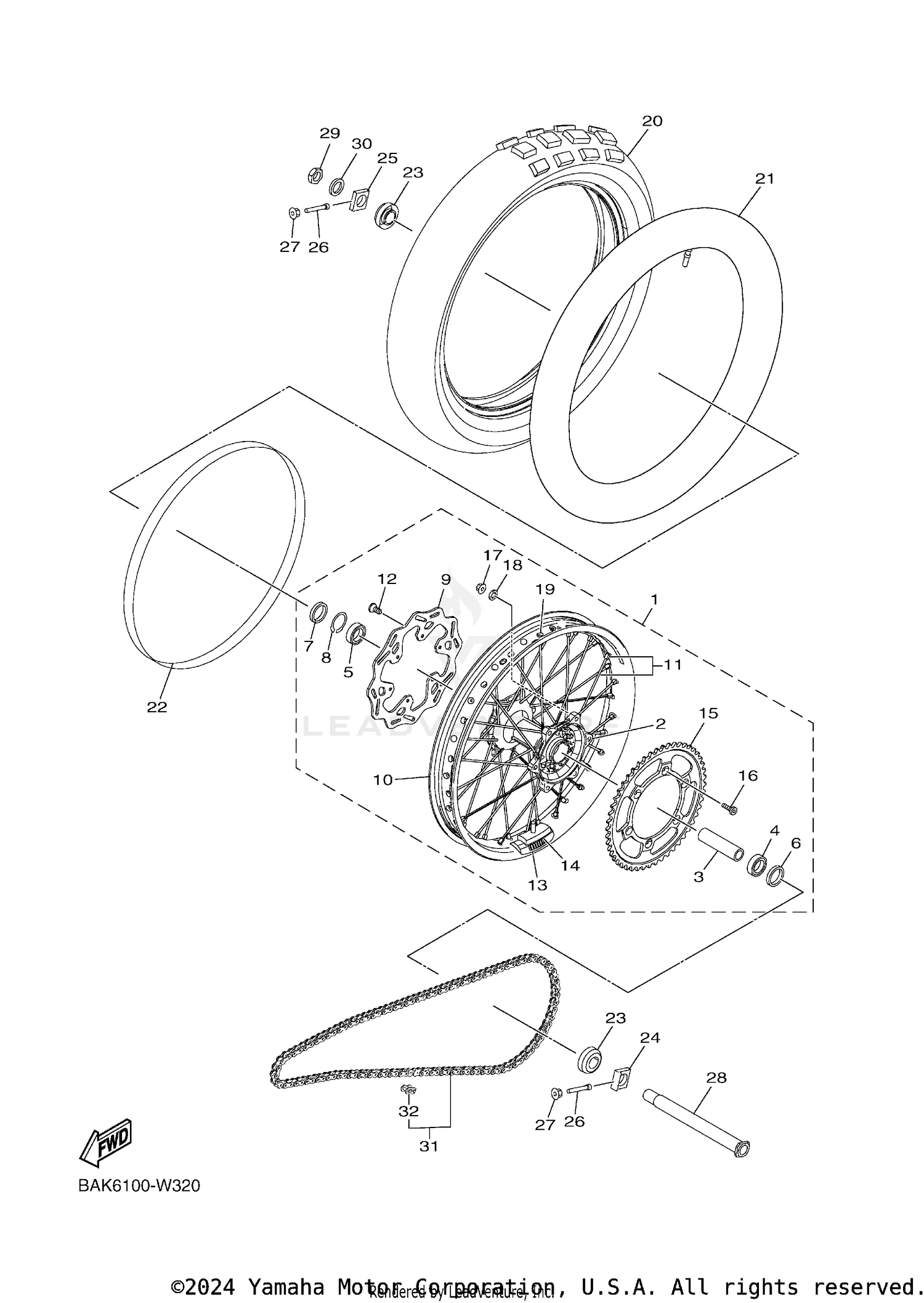

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REAR WHEEL SUB-ASSY
BAK-25302-00-00
|
$549.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
HUB, REAR
5ET-25311-00-00
|
$336.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPACER, BEARING
5ET-25317-00-00
|
$53.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
BEARING
93306-27212-00
|
$82.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BEARING
93306-07202-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
OIL SEAL
93106-30001-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
OIL SEAL
93106-30045-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
CIRCLIP
99009-45500-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#9
DISC, REAR BRAKE 2
B11-2582W-10-00
|
$171.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
RIM (2.15-18)
94421-18044-00
|
$408.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPOKE SET, REAR
5GS-25304-00-00
|
$193.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW, COUNTERSUNK
90151-06051-00
Superseded by 90151-06079-00
|
$3.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
SPACER, BEAD
3JE-25394-00-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
DAMPER
4XM-25364-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPROCKET, DRIVEN (50T)
5TJ-25450-80-00
|
$68.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPROCKET, DRIVEN (51T)
BAK-25451-00-00
|
$94.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPROCKET, DRIVEN (52T)
5TJ-25452-80-00
|
$99.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
SPROCKET, DRIVEN (48T)
5GS-25448-50-00
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT
90109-081G1-00
|
$3.60 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
NUT, SELF-LOCKING
90185-08008-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, PLATE
90201-08043-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
GROMMET
90480-08608-00
Superseded by 90480-10068-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
TIRE
94111-18033-00
|
$169.99 | ||
|
Unavailable |
|||
|
#21
TUBE (110-140/80-100-18 M/C)
94212-18188-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
BAND, RIM (2.50-18)
94309-18146-00
Superseded by 94340-18086-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
COLLAR ASSY
1DX-2530S-01-00
|
$28.99 | ||
|
Unavailable |
|||
|
#24
PULLER, CHAIN 1
1C3-25388-H0-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
PULLER, CHAIN 2
1C3-25389-H0-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT
90101-08006-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
NUT
90179-08019-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
AXLE, WHEEL
1C3-25381-90-00
|
$100.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
NUT, SELF-LOCKING
90185-20002-00
|
$31.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
WASHER, PLATE
90201-20020-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#31
CHAIN
9Y582-50113-00
|
$236.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
JOINT, CHAIN
94682-50021-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
