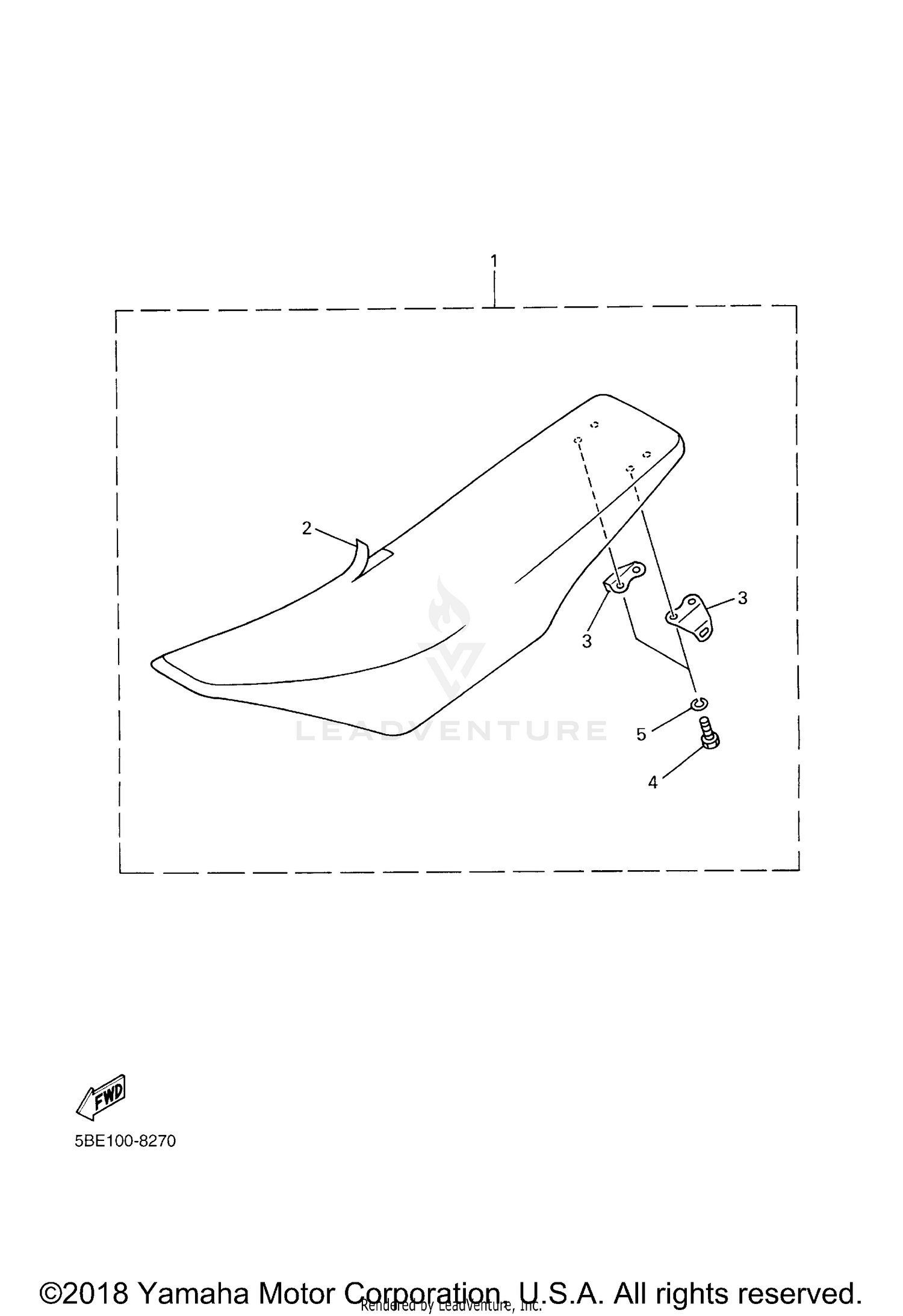

Seat Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SINGLE SEAT ASSY
5NG-24710-50-00
|
$307.45 | ||
|
Unavailable |
|||
|
#2
COVER, SEAT
5NG-24731-50-00
|
$145.99 | ||
|
Unavailable |
|||
|
#3
BRACKET, SEAT
5BE-24728-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT
97007-06012-00
Superseded by 97017-06012-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, SPRING
92907-06100-00
|
$1.30 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
