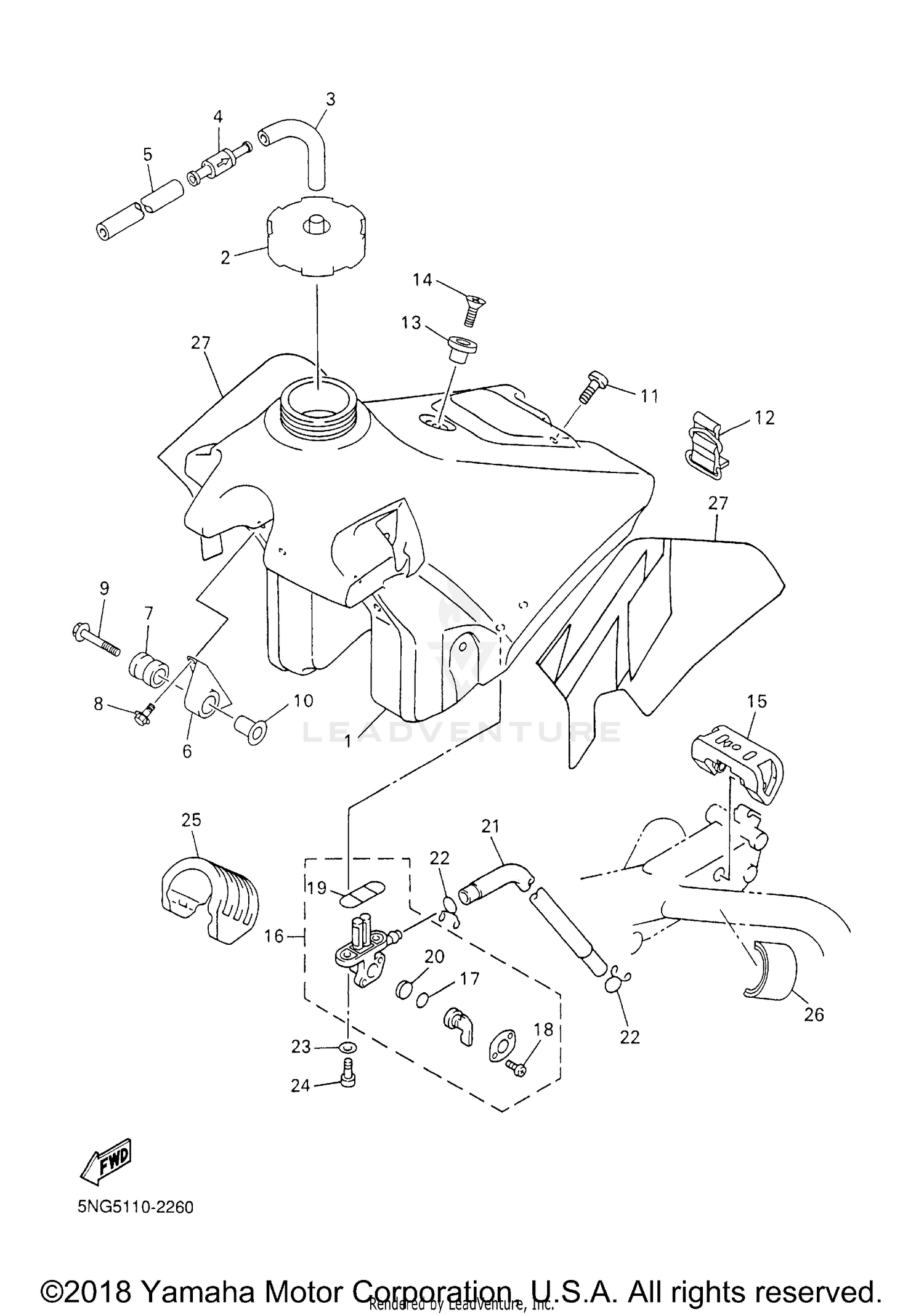

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK COMP.
5GS-24110-00-00
Superseded by 5GS-24110-01-00
|
$675.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
CAP ASSY
5MV-24610-00-00
|
$63.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIPE 5
90445-09220-00
Superseded by 5RB-24315-00-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
PIPE JOINT ASSY
3XJ-24380-00-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
PIPE 5
90445-09100-00
Superseded by 5RB-24315-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#6
HOLDER, DAMPER
24X-24144-00-00
Superseded by 5XE-24144-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
GROMMET
90480-18549-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, FLANGE
95027-06016-00
Superseded by 90105-06696-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, WITH WASHER
90119-06214-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, SPECIAL
3JD-24186-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW, BIND
98907-06020-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BAND, TANK FITTING 1
5SF-24173-00-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BRACKET, SEAT
4EW-2412F-00-00
|
$15.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
SCREW, FLAT HEAD
98707-06025-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
DAMPER, LOCATING 1
4SS-24181-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
FUEL COCK ASSY 1
2GU-24500-01-00
Superseded by 2GU-24500-02-00
|
$64.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
SEAL, COCK
3AJ-24534-00-00
Superseded by 3AJ-24534-01-00
|
$11.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
SCREW, PAN HEAD
97801-03008-00
Superseded by 98580-03008-00
|
$3.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
O-RING
4X8-24512-00-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
VALVE PACKING
3AJ-24523-00-00
Superseded by 3AC-24523-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
HOSE (L185)
90445-114K9-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
CLIP
90467-10008-00
Superseded by 90467-100A1-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
WASHER, PLATE
90202-05193-00
Superseded by 90202-05187-00
|
$1.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
SCREW
90149-06011-00
|
$2.05 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
DAMPER, LOCATING 2
5BE-24182-00-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
DAMPER 1
3V6-22358-00-00
Superseded by 1UY-21638-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
GRAPHIC SET
5NG-24240-51-00
|
$358.99 | ||
|
Available to order. Add to View Price |
|||
