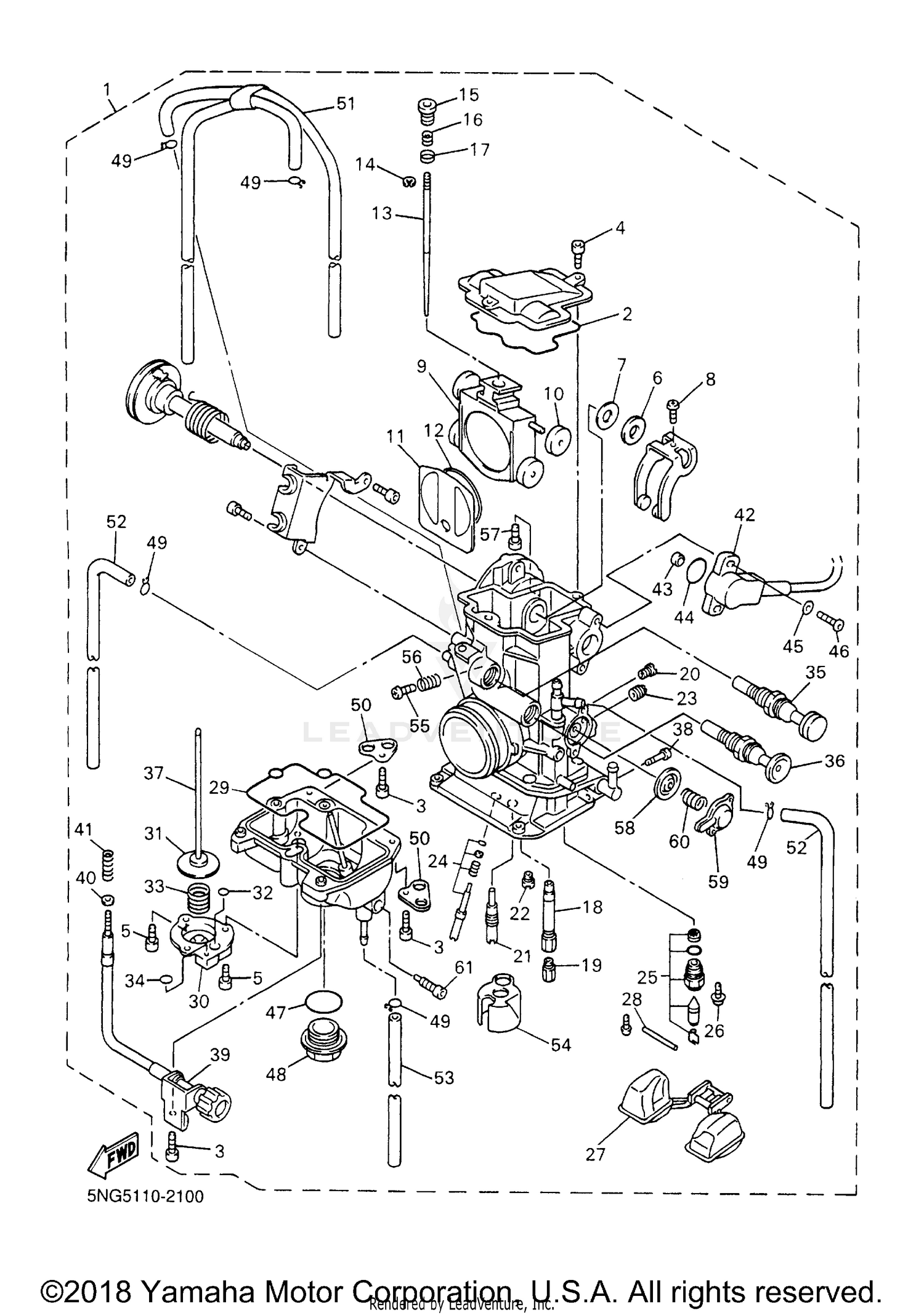

Carburetor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#39
SCREW, THROTTLE
5JG-14922-00-00
|
$161.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
WASHER, PLATE
90201-08410-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#41
SPRING, THROTTLE STOP
4FN-14934-00-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#42
THROTTLE SENSOR ASSY
5JG-85885-00-00
|
$254.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
COLLAR
5BE-14449-00-00
Superseded by 4TV-14534-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#44
O-RING
5BE-14562-00-00
Superseded by 4TV-14562-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#45
WASHER
4YR-14557-00-00
Superseded by 92907-04600-00
|
$1.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#46
SCREW, PAN HEAD
4YR-14216-00-00
Superseded by 98507-04010-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#47
O-RING
4MX-14561-00-00
|
$7.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#48
PLUG, SCREW
4MX-14115-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#49
CLIP
3TJ-14137-40-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#50
PLATE
5BE-14146-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#51
PIPE
5JG-14196-00-00
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#52
PIPE
5JG-14197-00-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#53
HOSE
5JG-14987-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#54
PLATE
5JG-14346-00-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#55
SCREW
5JG-14565-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#56
SPRING, ADJUST SCREW
5JG-14531-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#57
SCREW
5JG-14591-00-00
Superseded by 5JG-14591-09-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#58
DIAPHRAGM ASSY
5GS-14940-00-00
|
$58.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#59
COVER, DIAPHRAGM
5GS-14958-00-00
|
$53.99 | ||
|
Available to order. Add to View Price |
|||
|
#60
SPRING, DIAPHRAGM
5GS-14933-00-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#61
PLUG, DRAIN
3TJ-14191-40-00
|
$22.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#1
CARBURETOR ASSY 1
5NG-14101-50-00
|
$1,528.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
GASKET
5JG-14959-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT
91316-04012-00
Superseded by 91317-04012-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT
91316-04012-00
Superseded by 91317-04012-00
|
$9.49 | ||
|
Unavailable |
|||
|
#5
BOLT
91316-04008-00
Superseded by 91317-04008-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
WASHER, PLATE
90202-08045-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER
5JG-14951-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW, ADJUST
5JG-14522-00-00
Superseded by 5JG-14522-09-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
VALVE, VACUUM CONTROL
5JG-14388-00-00
|
$541.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
ROLLER
3TJ-14267-40-00
|
$18.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
VALVE, NEEDLE
5JG-14546-01-00
|
$299.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SEAL
4FN-14997-00-00
|
$28.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
NEEDLE (#DRS)
5GS-14916-RS-00
|
$14.49 | ||
|
Unavailable |
|||
|
#13
NEEDLE (#DRP)
5GS-14916-RP-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
NEEDLE (#DRR)
5GS-14916-RR-00
|
$13.99 | ||
|
Unavailable |
|||
|
#13
NEEDLE (#DRT)
5GS-14916-RT-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
NEEDLE (#DRQ)
5GS-14916-R1-00
|
$14.49 | ||
|
Unavailable |
|||
|
#13
NEEDLE (#DRU)
5GS-14916-RU-00
|
$12.99 | ||
|
Unavailable |
|||
|
#13
NEEDLE (#DRN)
5GS-14916-RN-00
|
$12.99 | ||
|
Unavailable |
|||
|
#14
CLIP
3TJ-14159-40-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW, ADJUST
5JG-14521-00-00
|
$34.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
SPRING
5JG-14275-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
COLLAR
5JG-14264-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
JET, NEEDLE
5JG-14947-00-00
Superseded by 5JG-14947-01-00
|
$50.99 | ||
|
Unavailable |
|||
|
#19
JET, MAIN (#175)
4MX-14943-42-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
JET, MAIN (#165)
4MX-14943-40-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
JET, MAIN (#168)
4MX-14943-91-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
JET, MAIN (#170)
4MX-14943-41-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
JET, MAIN (#172)
4MX-14943-92-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
JET, MAIN (#178)
4MX-14943-93-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
JET, MAIN (#158)
4MX-14943-89-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
JET, MAIN (#160)
4MX-14943-39-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
JET, MAIN (#162)
4MX-14943-90-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
JET, MAIN (#155)
4MX-14943-38-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
JET (#200)
3TJ-14943-47-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
JET, SLOW (#48)
4MX-14948-06-00
|
$10.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
JET, SLOW (#42)
4MX-14948-04-00
|
$10.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
JET, SLOW (#45)
4MX-14948-05-00
|
$10.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
JET, SLOW (#38)
4MX-14948-02-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
JET, SLOW (#40)
4MX-14948-03-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
JET (#65)
3TJ-1494F-13-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
JET (#58)
3TJ-1494F-10-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
JET (#60)
3TJ-1494F-11-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
JET (#62)
3TJ-1494F-12-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
JET (#68)
3TJ-1494F-14-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
JET (#70)
3TJ-1494F-15-00
|
$17.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
JET (#75)
7A9-14943-17-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
JET (#60)
7A9-14943-11-00
|
$5.99 | ||
|
Unavailable |
|||
|
#24
PILOT SCREW SET
3TJ-14105-40-00
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
NEEDLE VALVE SET
5BE-14107-00-00
|
$78.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
SCREW
5BE-14216-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
FLOAT
4SR-14985-00-00
|
$73.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
PIN, FLOAT ARM
676-14548-00-00
Superseded by 663-14548-00-00
|
$5.55 | ||
|
Available to order. Add to View Price |
|||
|
#29
GASKET, FLOAT CHAMBER
5JG-14984-00-00
|
$31.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
COVER 1
3TJ-14293-40-00
|
$73.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
DIAPHRAGM, ACC PUMP (DPH#25)
5JG-14940-18-00
|
$60.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
DIAPHRAGM, ACC PUMP (DPH#35)
5JG-14940-17-00
|
$60.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
DIAPHRAGM ASSY
5JG-14940-19-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
GASKET
3TJ-14536-40-00
|
$7.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#33
SPRING, DIAPHRAGM
5GS-14933-40-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
O-RING
6H4-14561-00-00
|
$9.05 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#35
PLUNGER, STARTER
5JG-14171-00-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
PLUNGER, STARTER
5JG-14371-00-00
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
ROD, STARTER
5JG-14379-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
SCREW, PAN HEAD
3TJ-14325-40-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
