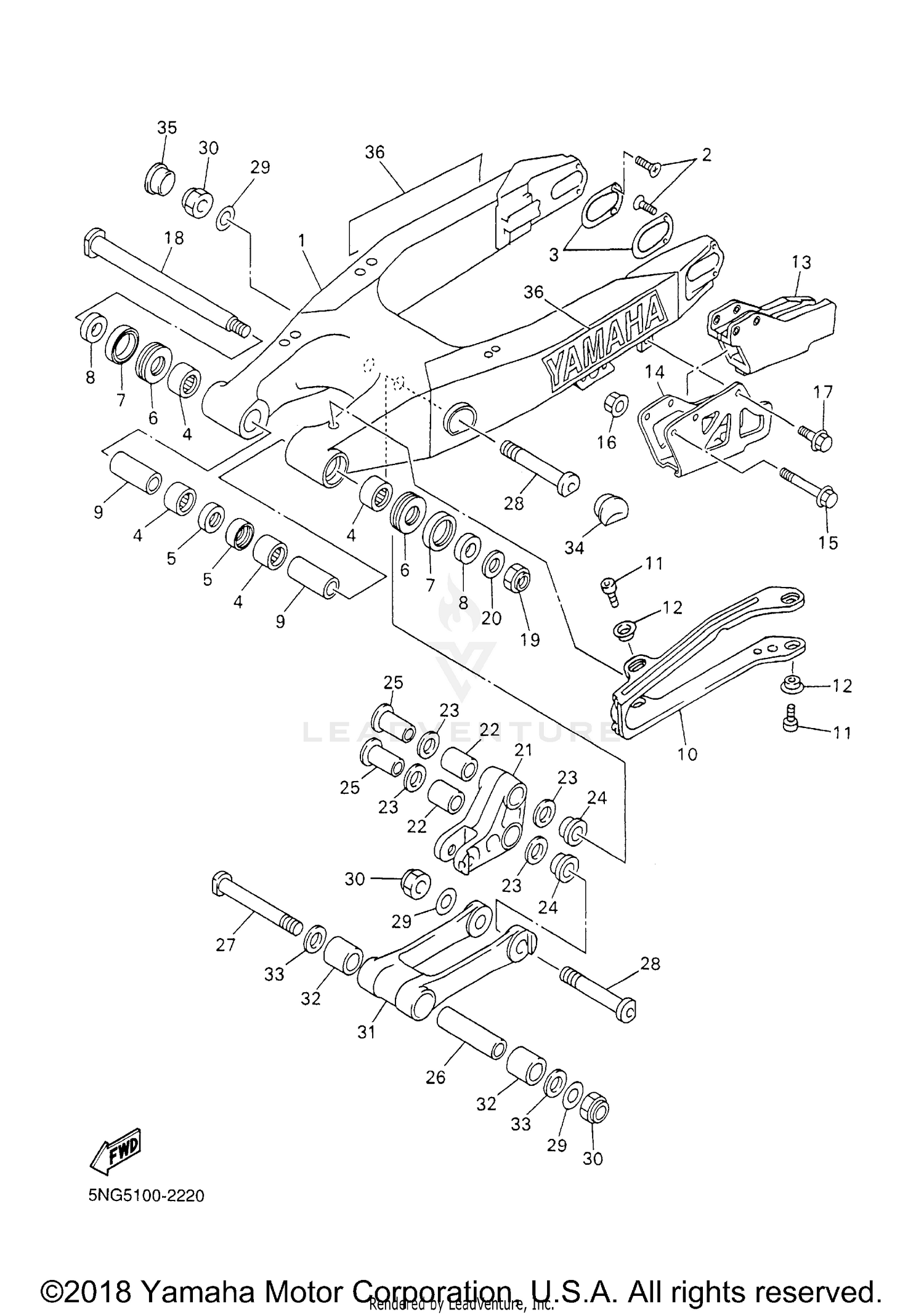

Rear Arm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REAR ARM COMP.
5NY-22110-00-00
|
$1,107.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
SCREW, FLAT HEAD
90151-04048-00
Superseded by 98707-04010-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
PATCH
5NY-22355-00-00
|
$13.49 | ||
|
Unavailable |
|||
|
#4
BEARING
93317-22262-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
OIL SEAL (DC 22-28-8)
93106-22019-00
|
$12.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
BEARING
93342-22217-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
OIL SEAL
93109-28043-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
COLLAR
90387-18005-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
COLLAR
90387-18004-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SEAL, GUARD
5MV-22151-00-00
|
$92.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT
91317-05008-00
|
$2.75 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, PLATE
5JG-22156-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
SUPPORT, CHAIN
4XM-22199-00-00
|
$108.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
COVER, THRUST 1
4XM-22128-00-00
|
$132.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE
95027-06050-00
|
$2.75 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT, FLANGE
90179-06568-00
Superseded by 95780-06500-00
|
$2.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
BOLT, FLANGE
95027-06010-00
|
$3.55 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
SHAFT, PIVOT
5NY-22141-00-00
Superseded by 5NY-22141-01-00
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT, SELF-LOCKING
90185-16127-00
Superseded by 90185-16002-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, PLATE
90201-160F6-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
ARM, RELAY
5NY-2217A-00-00
|
$246.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
BEARING
93315-32056-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
OIL SEAL
93109-20076-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
COLLAR
90387-16005-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
COLLAR
90387-16007-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
COLLAR
90387-167Y9-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
SHAFT 1
5NY-22121-00-00
|
$36.99 | ||
|
Unavailable |
|||
|
#28
SHAFT 2
5NY-22122-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER, PLATE
90201-14740-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
NUT, SELF-LOCKING
90185-14007-00
Superseded by 90185-14010-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
ROD, CONNECTING 1
5NY-2217F-00-00
|
$182.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
BEARING
93315-32053-00
|
$36.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#33
OIL SEAL
93109-20076-00
|
$17.49 | ||
|
Unavailable |
|||
|
#34
COVER
5NY-2135F-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
COVER
5HD-2135F-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
EMBLEM, YAMAHA
99244-00200-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
