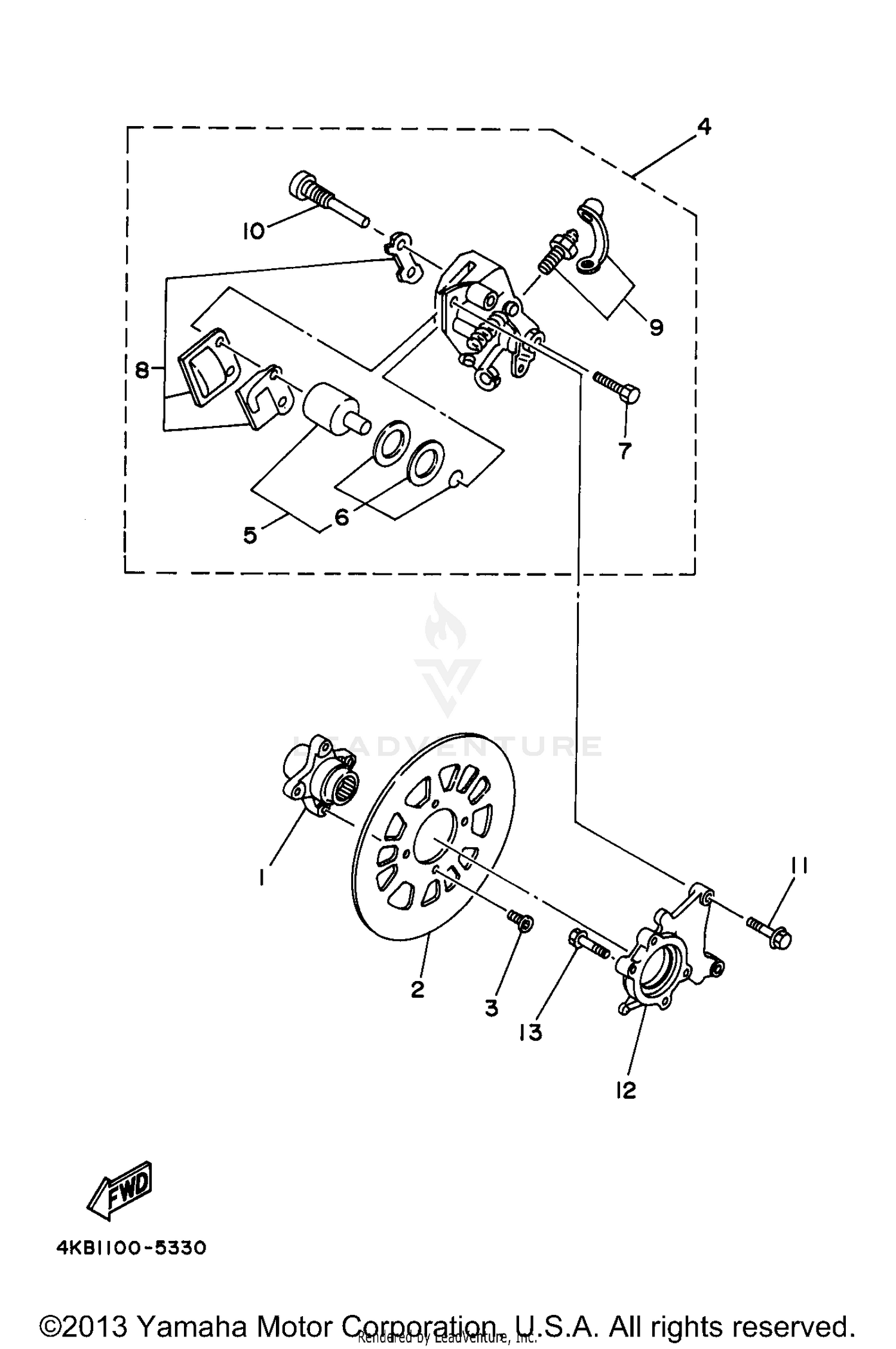

Rear Brake Caliper Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BRACKET, DISC
4KB-25712-00-00
|
$228.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
DISC, BRAKE
2GU-25831-51-00
Superseded by 2XJ-25831-50-00
|
$218.99 | ||
|
Unavailable |
|||
|
#3
BOLT,HEX. SOCKET BUT
90109-081F0-00
Superseded by 90111-08053-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
CALIPER ASSY, REAR 2
1UY-2580W-00-00
Superseded by 1UY-2580W-02-00
|
$664.99 | ||
|
Unavailable |
|||
|
#5
PISTON ASSY, CALIPER
1UY-W0057-50-00
|
$120.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
CALIPER SEAL KIT
1UY-W0047-50-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
ADJUST BOLT
1UY-25972-51-00
|
$14.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
BRAKE PAD KIT 2
1UY-W0046-00-00
Superseded by 1UY-W0046-01-00
|
$48.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BLEED SCREW KIT
36Y-W0048-00-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIN, PAD
1UY-25924-51-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE
90105-08440-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
BRACKET, CALIPER
4KB-25819-00-00
|
$158.09 | ||
|
Unavailable |
|||
|
#13
BOLT, FLANGE
90105-08748-00
Superseded by 95817-08035-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
