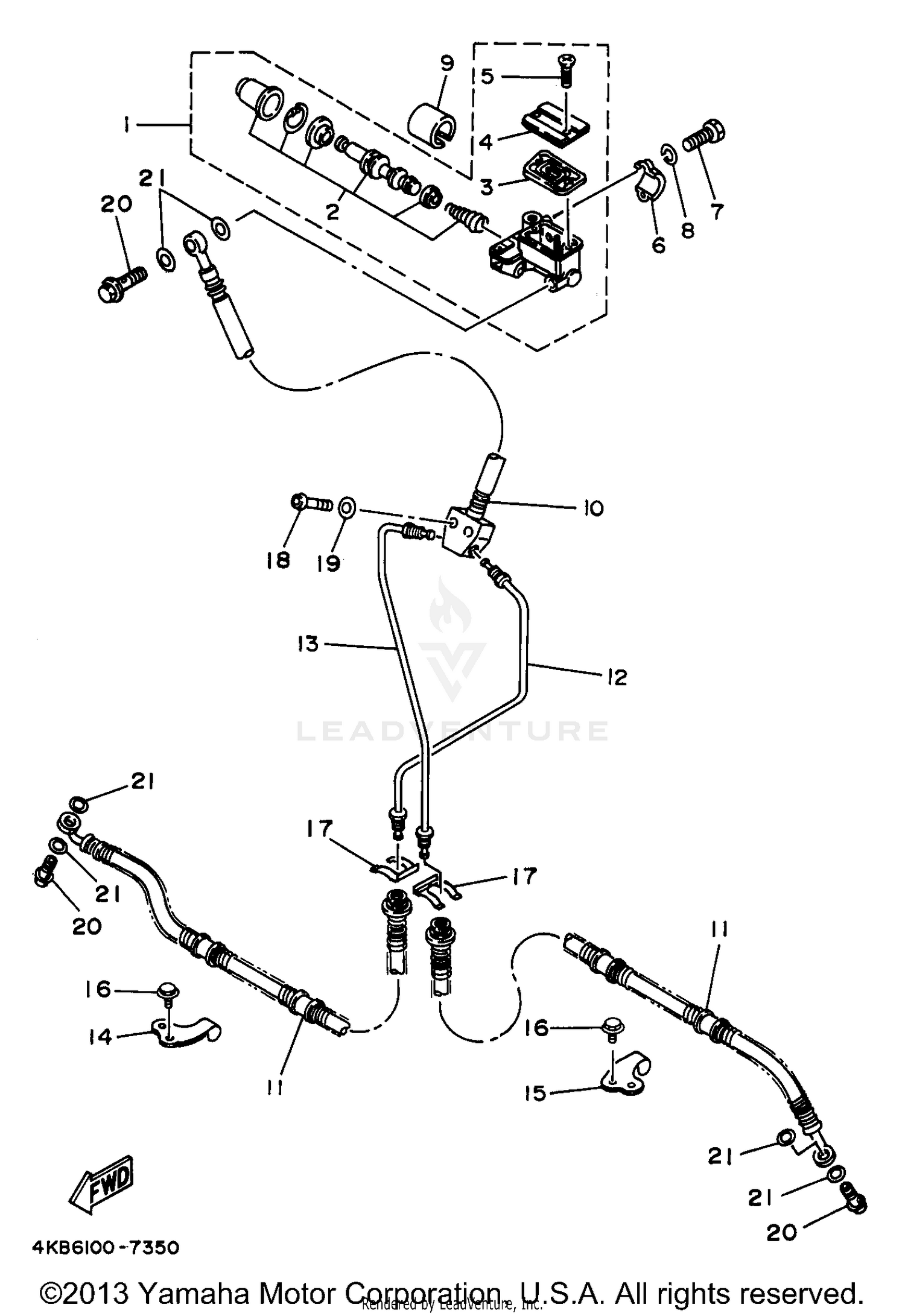

Front Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MASTER CYL. ASSY
3HN-2583T-00-00
Superseded by 2GU-25870-10-00
|
$318.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
CYLINDER KIT, MASTER
4H7-W0041-50-00
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
DIAPHRAGM, RESERVOIR
4L0-25854-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
CAP, RESERVOIR
4H7-25852-00-00
|
$43.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
SCREW, FLAT HEAD
98707-04012-00
|
$1.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
BRACKET, MASTER CYLINDER
56A-25867-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT
97017-06025-00
|
$4.55 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
WASHER, PLATE
92907-06600-00
|
$1.00 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
COLLAR
1UY-26259-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
HOSE, BRAKE 1
4KB-25872-00-00
|
$101.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
HOSE, BRAKE 2
4KB-25873-00-00
Superseded by 4KB-25873-01-00
|
$55.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
PIPE, BRAKE
4KB-25871-00-00
|
$15.49 | ||
|
Unavailable |
|||
|
#13
PIPE, BRAKE 2
4KB-25882-00-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
HOLDER, BRAKE HOSE 1
4GB-25875-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
HOLDER, BRAKE HOSE 2
4GB-25876-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE
95817-06012-00
|
$1.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
CIRCLIP
2GU-25866-00-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT
97027-08030-00
Superseded by 97017-08030-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, PLATE
92907-08600-00
|
$3.25 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
BOLT, UNION
90401-10159-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, PLATE
90201-10118-00
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
