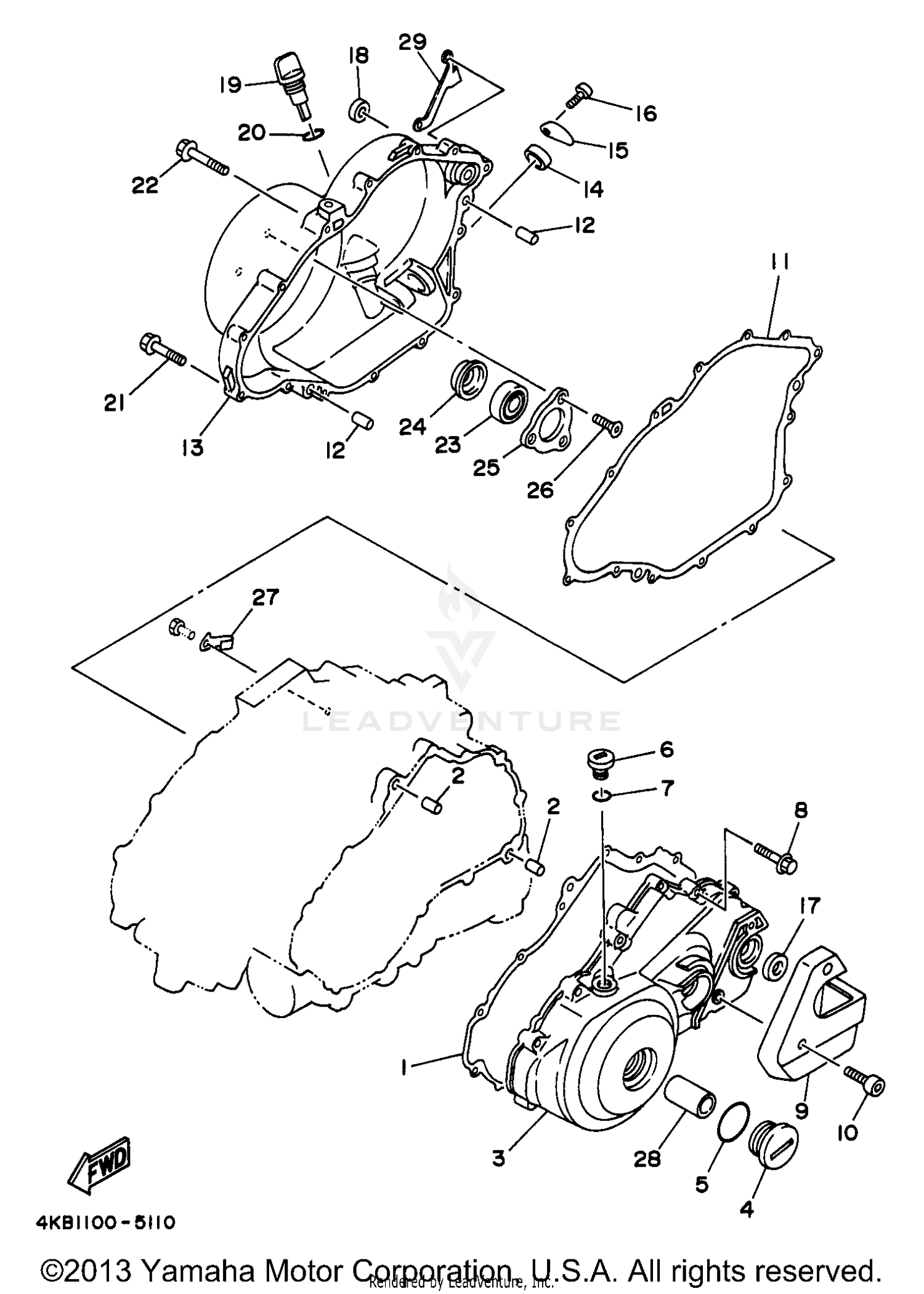

Crankcase Cover 1 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GASKET, CRANKCASE COVER 1
4KB-15451-00-00
Superseded by 4KB-15451-01-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
PIN, DOWEL
99530-10014-00
Superseded by 99530-10114-00
|
$2.65 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
COVER, CRANKCASE 1
4KB-15411-00-00
Superseded by 4KB-15411-01-00
|
$244.99 | ||
|
Unavailable |
|||
|
#4
PLUG, STRAIGHT SCREW
90340-36098-00
|
$7.27 | ||
|
Unavailable |
|||
|
#5
O-RING
93210-36510-00
Superseded by 93210-35804-00
|
$0.60 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
PLUG, STRAIGHT SCREW
90340-14117-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
O-RING
93210-14369-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
BOLT, FLANGE
95027-06030-00
|
$4.30 | ||
|
Available to order. Add to View Price |
|||
|
#9
COVER, CRANKCASE 2
4KB-15421-00-00
|
$48.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, HEXAGON SOCKET HEAD
90110-06240-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
GASKET, CRANKCASE COVER 3
4KB-15462-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
PIN, DOWEL
99530-10014-00
Superseded by 99530-10114-00
|
$2.65 | ||
|
Unavailable |
|||
|
#13
COVER, CRANKCASE 3
4KB-15431-01-00
|
$333.99 | ||
|
Unavailable |
|||
|
#14
PLUG
90338-28221-00
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#15
COVER
4KB-15492-00-00
|
$5.49 | ||
|
Unavailable |
|||
|
#16
SCREW, PAN HEAD
98507-06010-00
|
$3.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
OIL SEAL
93102-14209-00
|
$12.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
OIL SEAL
93102-12321-00
|
$13.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
PLUG, OIL LEVEL
4KB-15362-00-00
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
O-RING
93210-19522-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
BOLT, FLANGE
95027-06030-00
|
$4.30 | ||
|
Unavailable |
|||
|
#22
BOLT, FLANGE (95027-06040-00)
90105-06792-00
|
$2.10 | ||
|
Available to order. Add to View Price |
|||
|
#23
BEARING
93306-20335-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
OIL SEAL
93101-17113-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
PLATE, BEARING COVER
4SH-15381-00-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
SCREW, COUNTERSUNK
90151-06025-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
CLAMP
90465-08377-00
|
$4.20 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOSS, STARTER PULLEY
4KB-15777-00-00
|
$21.99 | ||
|
Unavailable |
|||
|
#29
BRACKET
4KB-18128-00-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
