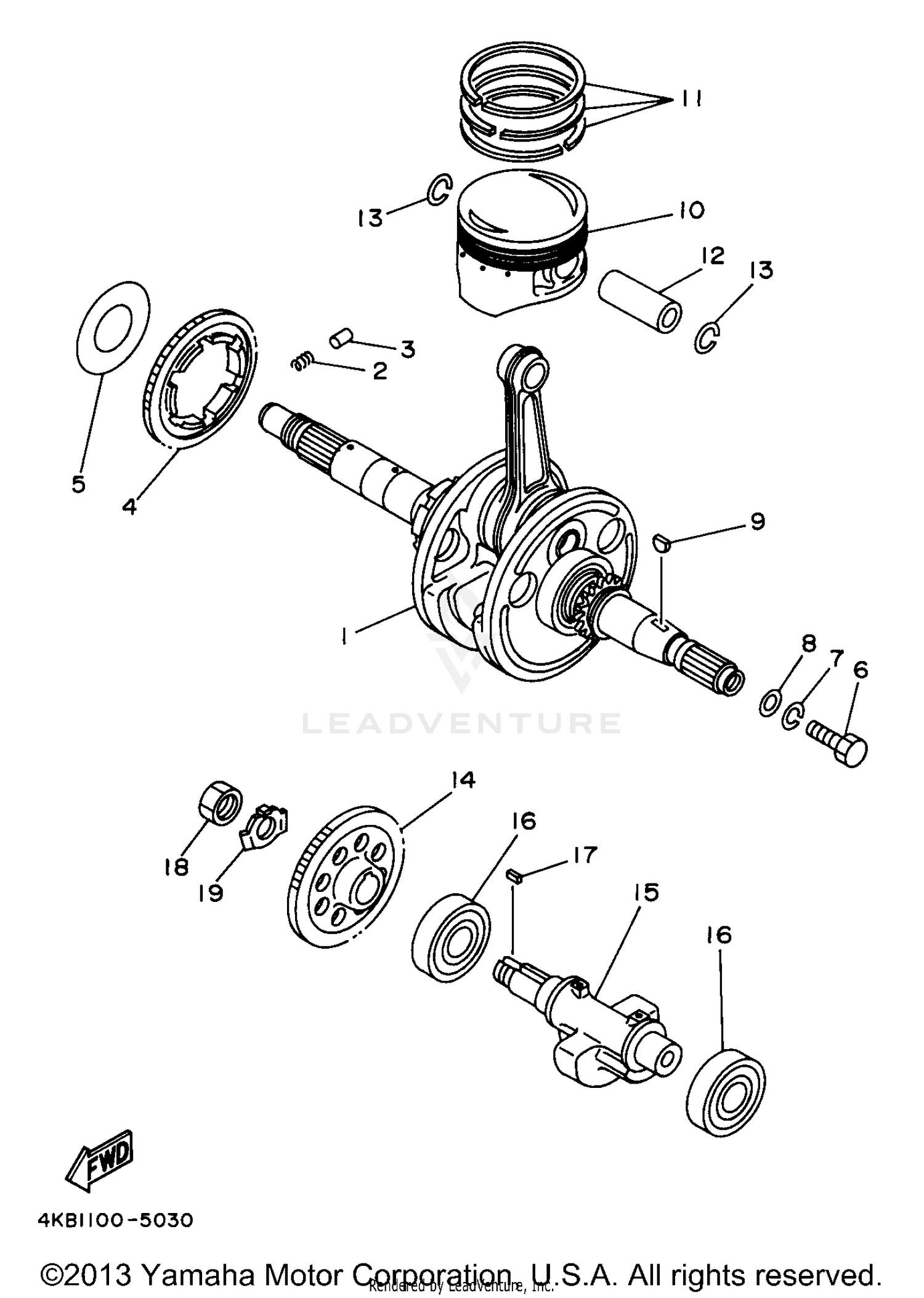

Crankshaft Piston Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKSHAFT ASSY
4KB-11400-00-00
Superseded by 4KB-11400-01-00
|
$818.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
SPRING, COMPRESSION
90501-22721-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIN, DOWEL
93605-10090-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
GEAR, BALANCE WEIGHT
3Y1-11531-01-00
Superseded by 3Y1-11531-02-00
|
$63.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, BEARING COVER
4KB-11565-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT
90101-10568-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, SPRING
92907-10100-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
WASHER, PLATE
90201-10144-00
|
$3.30 | ||
|
Available to order. Add to View Price |
|||
|
#9
KEY, WOODRUFF
90280-16053-00
Superseded by 90280-05001-00
|
$13.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
PISTON (1.00MM O/S)
1UY-11638-01-00
|
$145.99 | ||
|
Available to order. Add to View Price |
|||
|
#
PISTON (0.50MM O/S)
1UY-11636-01-00
|
$98.99 | ||
|
Available to order. Add to View Price |
|||
|
#
PISTON (STD)
1UY-11631-01-Y0
|
$168.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
PISTON RING SET (STD)
4GB-11610-00-00
|
$73.99 | ||
|
Available to order. Add to View Price |
|||
|
#
PISTON RING SET (0.50MM O/S)
4GB-11610-20-00
|
$66.99 | ||
|
Available to order. Add to View Price |
|||
|
#
PISTON RING SET (1.00MM O/S)
4GB-11610-40-00
|
$66.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
PIN, PISTON
55V-11633-00-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
CIRCLIP
93450-19095-00
|
$2.90 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
GEAR, DRIVE
4KB-11536-00-00
Superseded by 4KB-11536-01-00
|
$118.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
WEIGHT 1
1UY-11454-00-00
|
$161.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BEARING (B6205C4)
93306-20529-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
KEY, STRAIGHT
90282-05034-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT
90170-16326-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, LOCK
90215-16270-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
