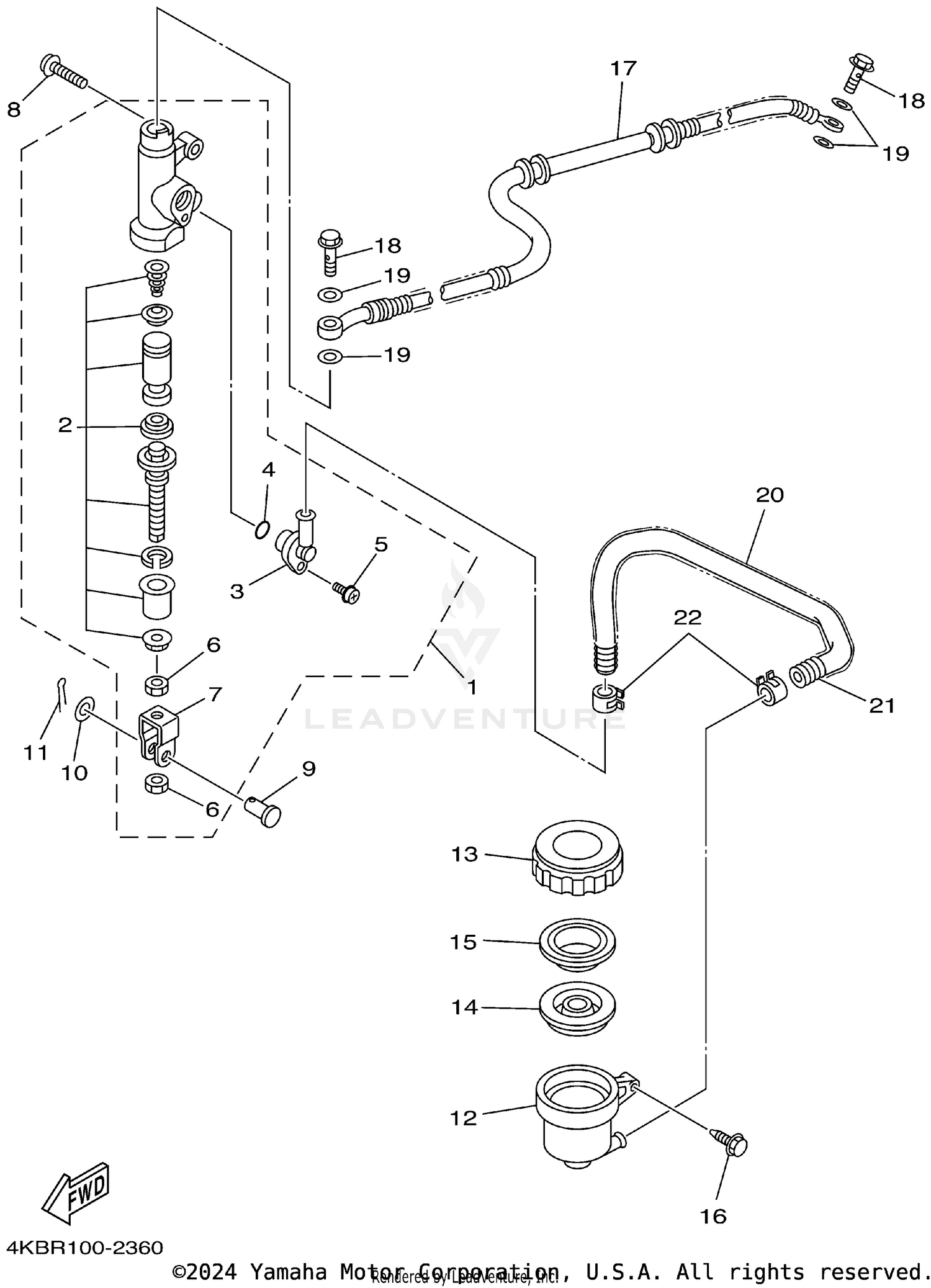

Rear Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#15
BUSH, DIAPHRAGM
2GU-25855-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, WITH WASHER
90119-06060-00
Superseded by 90119-06226-00
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#17
HOSE, BRAKE
4KB-25874-00-00
|
$132.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, UNION
90401-10159-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, PLATE
90201-10118-00
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#20
HOSE, RESERVOIR
4KB-25895-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
SPRING, COMPRESSION
90501-102E8-00
|
$10.49 | ||
|
Unavailable |
|||
|
#22
CLIP
90467-14057-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#1
RR. MASTER CYLINDER ASSY.
4KB-2583V-00-00
|
$242.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
CYLINDER KIT, MASTER
2GH-W0042-50-00
|
$90.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
CONNECTOR
31A-2582A-50-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
O-RING
93210-15620-00
Superseded by 93210-15566-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
SCREW
3GM-2589H-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT
4SS-27218-00-00
Superseded by 95317-08700-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
JOINT
2YK-27222-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, BUTTON HEAD
92017-08025-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
PIN, CLEVIS
90240-08013-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
WASHER, PLATE
90201-08083-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIN, COTTER
91401-16012-00
Superseded by 91490-16020-00
|
$6.70 | ||
|
Available to order. Add to View Price |
|||
|
#12
TANK, RESERVOIR
47X-25894-00-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
CAP, RESERVOIR
2KF-25852-50-00
|
$51.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
DIAPHRAGM, RESERVOIR
360-25854-01-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
