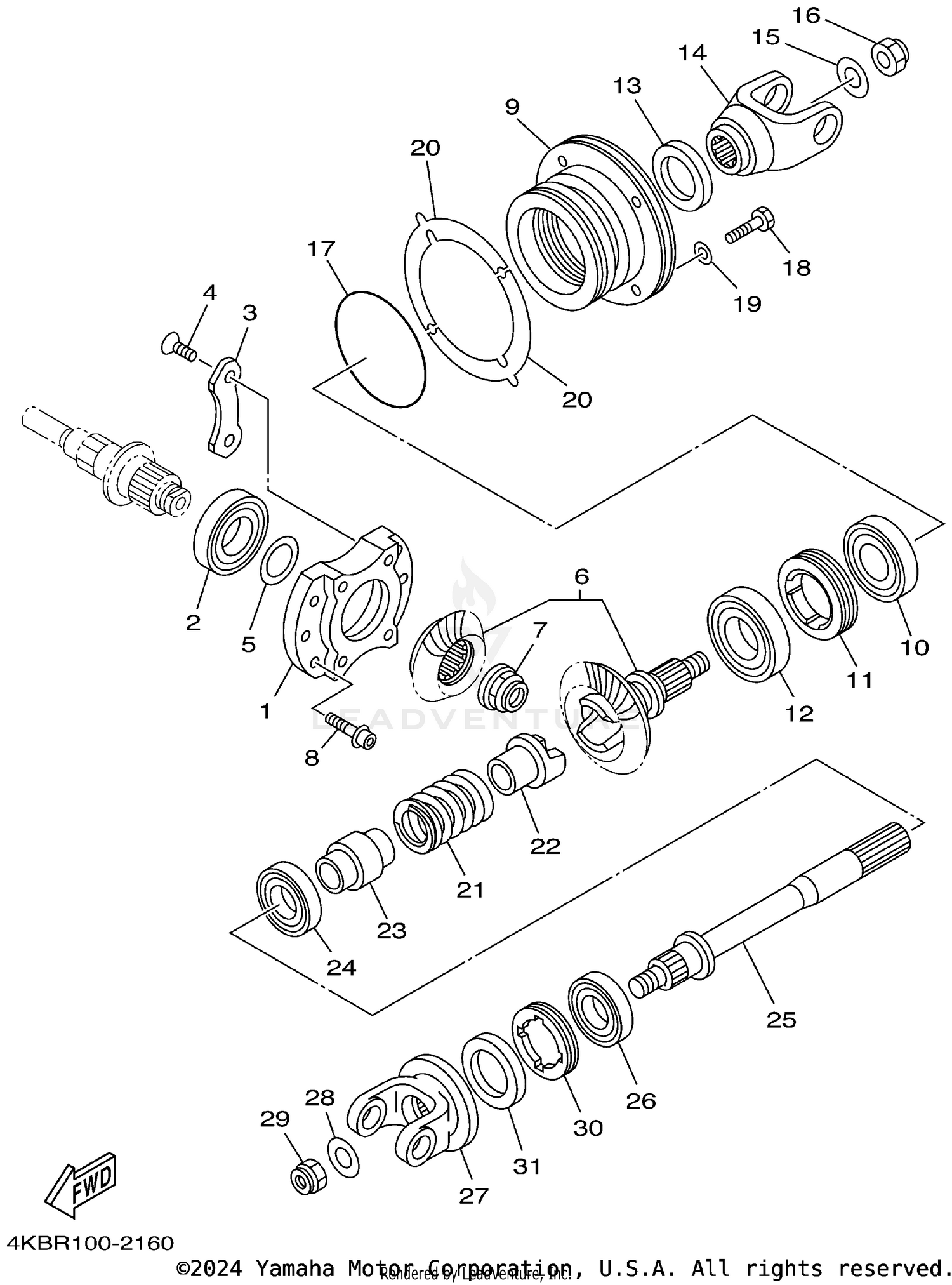

Middle Drive Gear Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HOUSING, BEARING
4KB-17521-00-00
|
$118.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BEARING
93306-20636-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
PLATE, BEARING COVER
11H-15383-02-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW
90149-08152-00
Superseded by 90149-08013-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
SHIM, PINION (0.4T)
52G-17531-41-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
SHIM, PINION (0.1T)
52G-17531-01-00
|
$2.90 | ||
|
Available to order. Add to View Price |
|||
|
#5
SHIM, PINION (0.15T)
52G-17531-11-00
|
$2.90 | ||
|
Available to order. Add to View Price |
|||
|
#5
SHIM, PINION (0.2T)
52G-17531-21-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
SHIM, PINION (0.5T)
52G-17531-51-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
SHIM, PINION (0.3T)
52G-17531-31-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
PINION SET
4KB-Y1754-00-00
Superseded by 4KB-17530-00-00
|
$384.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT
90179-22526-00
Superseded by 90179-22015-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT
90109-082A1-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#9
HOUSING, BEARING
4KB-17551-00-00
|
$232.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BEARING
93306-30538-00
Superseded by 93306-30560-00
|
$85.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT
90179-65305-00
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BEARING
93306-20715-00
Superseded by 93306-20712-00
|
$86.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
OIL SEAL
93101-35097-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
YOKE, JOINT
2HR-17556-01-00
|
$158.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, PLATE
90201-14633-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT, SELF-LOCKING
90185-14070-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
O-RING
93210-78544-00
|
$13.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
BOLT
97027-08030-00
Superseded by 97017-08030-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, PLATE
92907-08600-00
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#20
SHIM, PINION (0.15T)
4KB-17531-10-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
SHIM, PINION (0.60T)
4KB-17531-60-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
SHIM, PINION (0.50T)
4KB-17531-50-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
SHIM, PINION (0.20T)
4KB-17531-20-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
SHIM, PINION (0.30T)
4KB-17531-30-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
SHIM, PINION (0.40T)
4KB-17531-40-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
SHIM, PINION (0.10T)
4KB-17531-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
SPRING, COMPRESSION
90501-605E1-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
CAM, DRIVEN
22U-17527-01-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
COUPLING, GEAR
4KB-46123-00-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
BEARING
93306-00612-00
|
$51.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
SHAFT, 1
4KB-1761A-00-00
|
$164.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
BEARING (B6205C4)
93306-20517-00
Superseded by 93306-20529-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
YOKE, JOINT 2
5KM-17576-00-00
|
$215.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER, PLATE
90201-14633-00
|
$8.49 | ||
|
Unavailable |
|||
|
#29
NUT, SELF-LOCKING
90185-14070-00
|
$14.49 | ||
|
Unavailable |
|||
|
#30
NUT
90179-55660-00
|
$58.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
OIL SEAL
93102-44454-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
