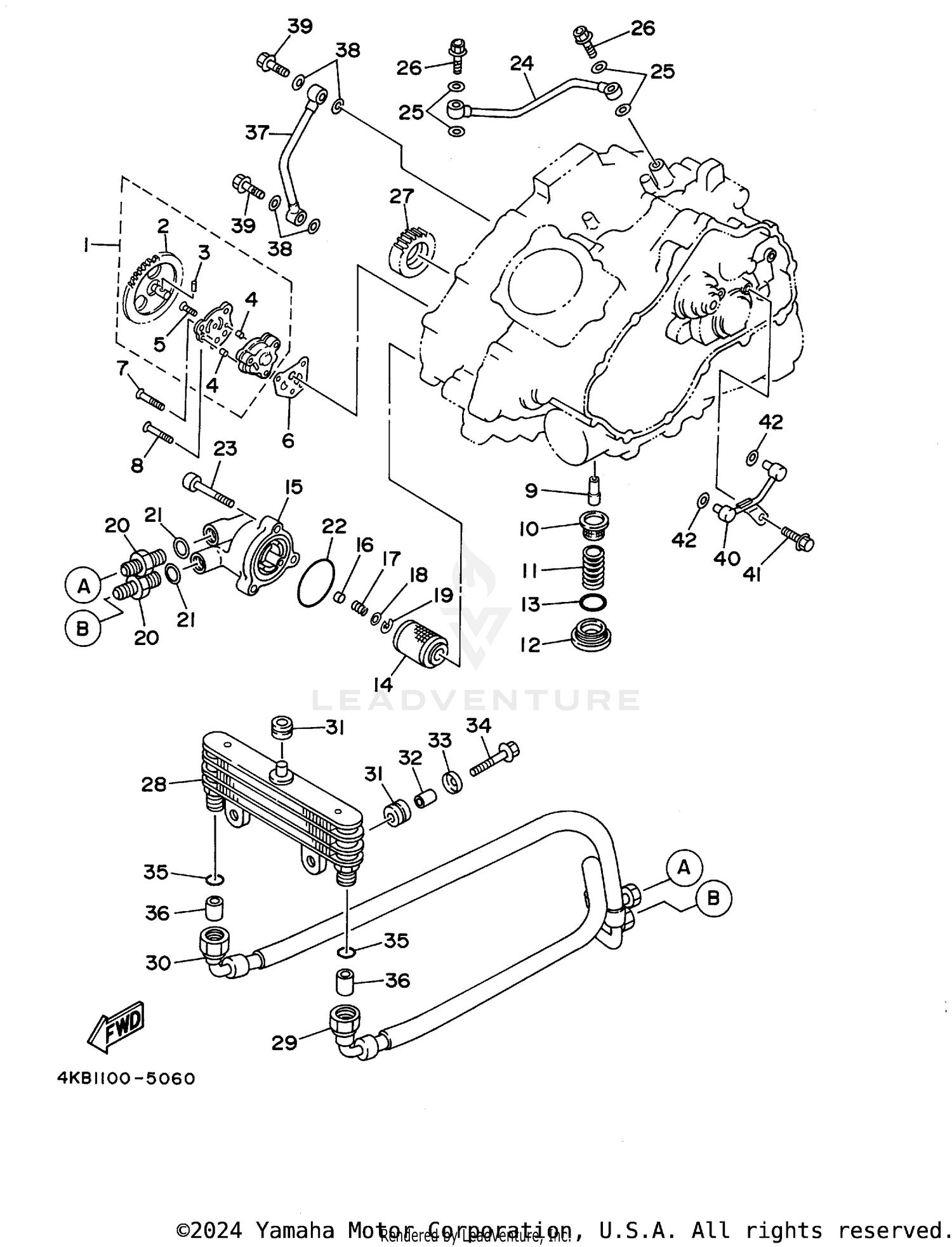

Oil Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
OIL PUMP ASSY
1UY-13300-00-00
|
$218.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
GEAR, PUMP DRIVEN 2
1UY-13326-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIN, PLUNGER
93603-12030-00
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIN, DOWEL
93603-07073-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW, COUNTERSUNK
90151-06010-00
Superseded by 90151-06005-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
GASKET, PUMP COVER
3GD-13329-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW, FLAT HEAD
98707-06030-00
|
$7.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
SCREW, FLAT HEAD
90151-06058-00
Superseded by 98707-06030-00
|
$7.99 | ||
|
Unavailable |
|||
|
#9
PIPE, OIL 1
2XK-13416-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
STRAINER, OIL
51Y-13411-00-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPRING, COMPRESSION
90501-18576-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
PLUG, DRAIN
30X-15351-00-00
Superseded by 4HC-15351-00-00
|
$19.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
O-RING
93210-35520-00
Superseded by 93210-35512-00
|
$13.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
ELEMENT ASSY, OIL CLEANER
1UY-13440-02-00
|
$18.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
COVER, OIL ELEMENT
4KB-13447-00-00
|
$143.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
PLUG
1YW-13497-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPRING, COMPRESSION
90501-082E3-00
|
$3.55 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
WASHER, PLATE
92907-06600-00
|
$1.00 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
CIRCLIP
93420-13073-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
JOINT
51Y-13132-50-00
Superseded by 1S3-13132-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
GASKET
90430-14043-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
O-RING
93210-54452-00
|
$11.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
BOLT
90110-06224-00
Superseded by 90110-06138-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
PIPE, DELIVERY 2
4KB-13171-00-00
|
$55.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
GASKET
90430-08119-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, UNION
90401-08038-00
Superseded by 90401-08006-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
GEAR, PUMP DRIVE
4KB-13324-00-00
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
OIL COOLER ASSY
4KB-13470-00-00
|
$597.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
HOSE, OIL 1
4KB-13464-00-00
|
$263.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
HOSE, OIL 2
4KB-13465-00-00
|
$226.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
GROMMET
90480-15235-00
Superseded by 90480-12475-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
COLLAR
90387-060A7-00
Superseded by 90387-06113-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
WASHER
90209-06174-00
Superseded by 90209-06012-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
BOLT, FLANGE
95807-06020-00
Superseded by 95817-06020-00
|
$3.50 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#35
O-RING
93210-12152-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
PIN, DOWEL
93612-16254-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#37
PIPE, DELIVERY 1
4KB-13161-01-00
|
$75.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
GASKET
90430-08119-00
|
$7.49 | ||
|
Unavailable |
|||
|
#39
BOLT, UNION
90401-08117-00
Superseded by 90401-08004-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#40
PIPE, DELIVERY 3
4KB-13181-00-00
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#41
BOLT, FLANGE
95027-06012-00
|
$4.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#42
O-RING
93210-06632-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
