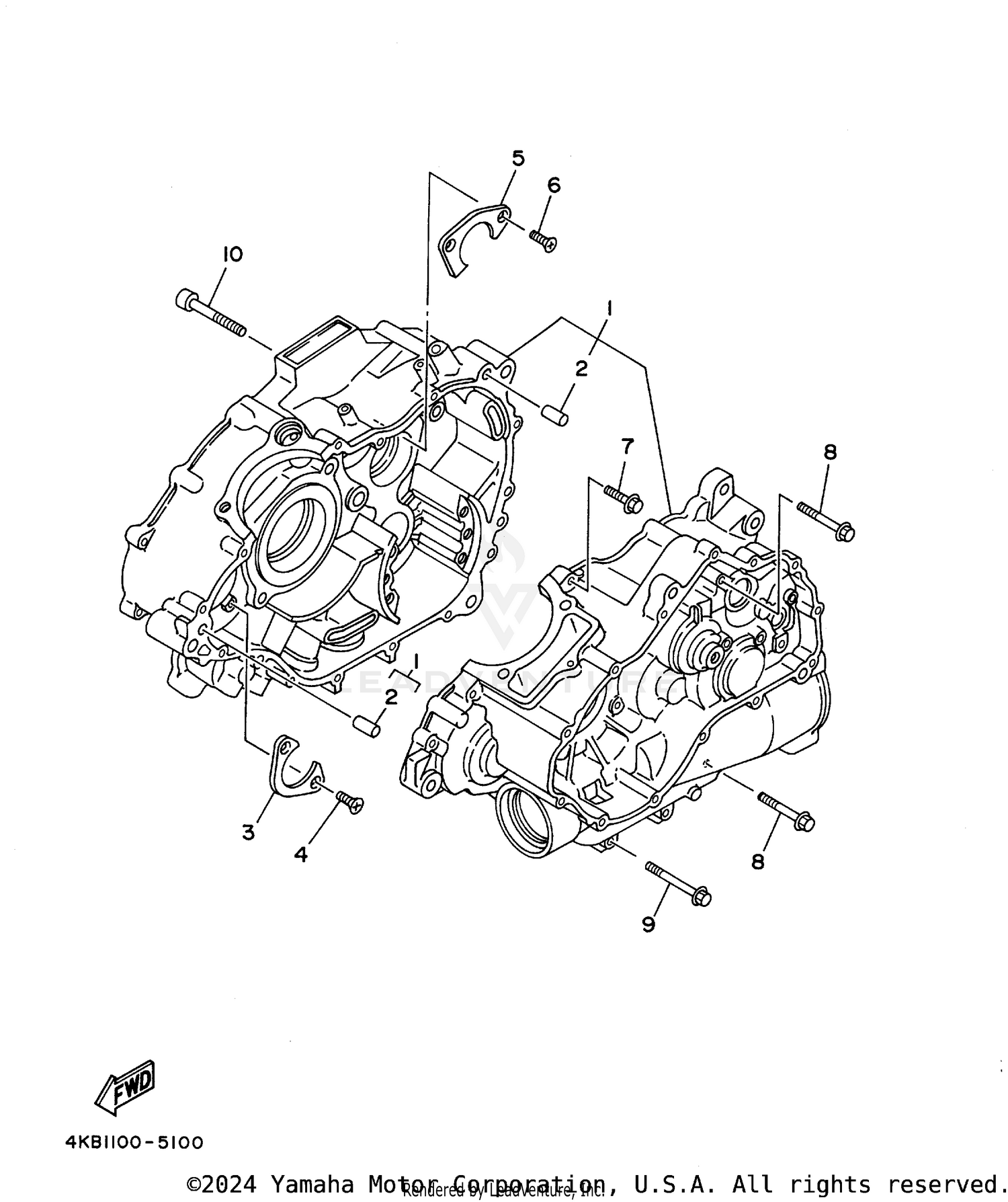

Crankcase Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKCASE ASSY
4KB-15150-04-00
Superseded by 4KB-15100-05-00
|
$1,025.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
PIN, DOWEL
99530-10014-00
Superseded by 99530-10114-00
|
$2.65 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
PLATE, BEARING COVER
1UY-15383-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW, FLAT HEAD
98707-06016-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
PLATE, BEARING COVER
4KB-15383-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW, FLAT HEAD
98707-06016-00
|
$9.49 | ||
|
Unavailable |
|||
|
#7
BOLT, FLANGE
95027-06030-00
|
$4.30 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, FLANGE
95027-06050-00
|
$2.75 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, FLANGE
95027-06060-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT,SOCKET HEAD
90110-08234-00
Superseded by 91317-08060-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
