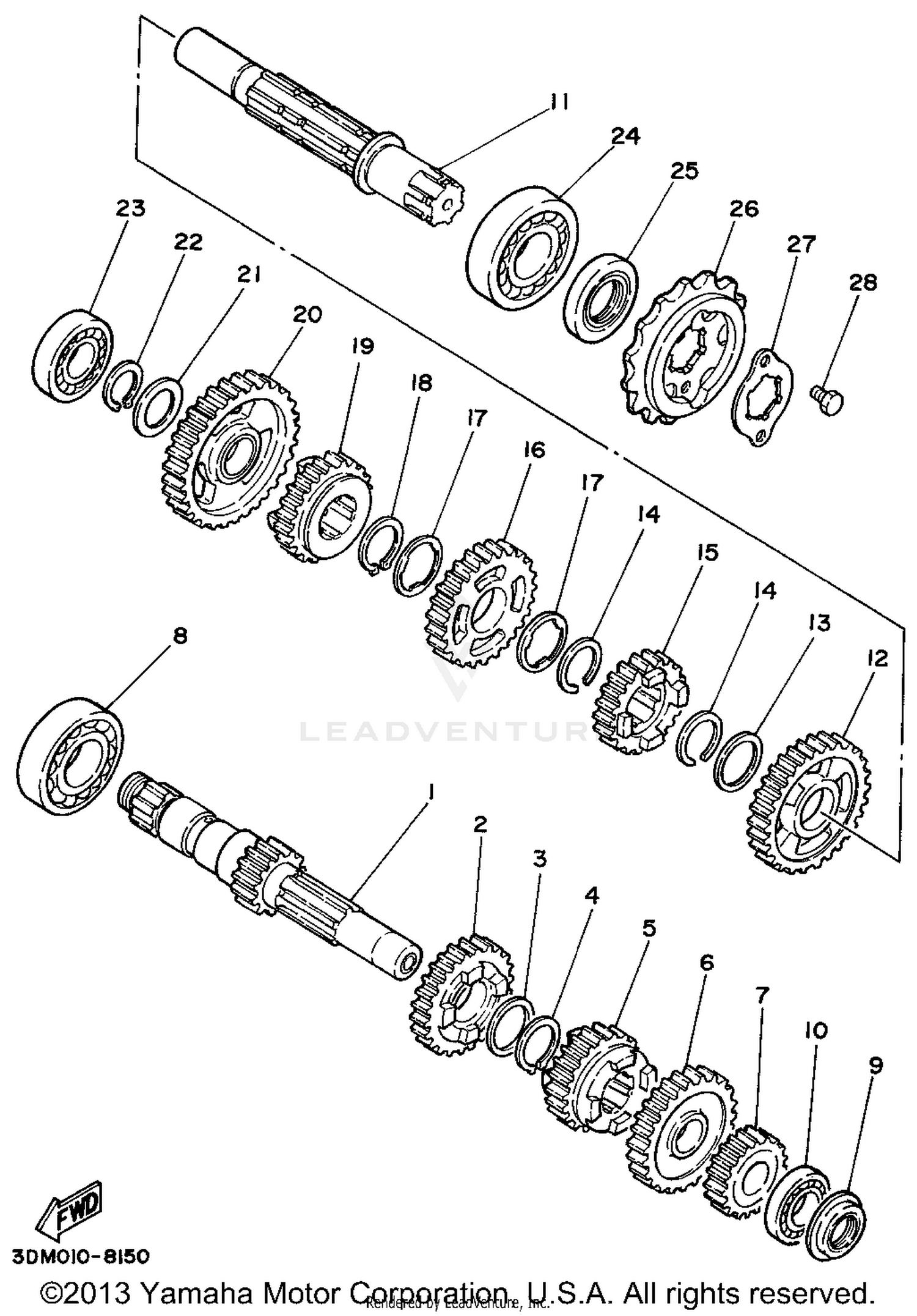

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
AXLE, MAIN (14T)
4DN-17411-00-00
|
$118.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
GEAR, 4TH PINION
4DN-17141-00-00
|
$61.99 | ||
|
Unavailable |
|||
|
#3
WASHER, PLATE
90201-22793-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
CIRCLIP
93410-22039-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
GEAR, 3RD PINION (23T)
3Y1-17131-01-00
|
$63.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
GEAR, 5TH PINION (28T) (3Y1-171
3Y1-17151-00-00
Superseded by 4DN-17151-00-00
|
$79.99 | ||
|
Unavailable |
|||
|
#7
GEAR, 2ND PINION (19T)
3Y1-17121-01-00
Superseded by 3Y1-17121-01-YX
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BEARING (B6205)
93306-20541-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
OIL SEAL
93101-17093-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BEARING
93306-00302-00
Superseded by 93306-00315-00
|
$36.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
DRIVE AXLE ASSY
3Y1-17402-00-00
|
$206.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
GEAR, 2ND WHEEL (32T)
3Y1-17221-01-00
Superseded by 3Y1-17221-02-00
|
$58.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, PLATE (T=1.0)
90201-253K0-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
CIRCLIP
93440-25084-00
|
$4.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
GEAR, 5TH WHEEL
4DN-17251-00-00
|
$58.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
GEAR, 3RD WHEEL (29T)
3Y1-17231-01-00
Superseded by 3Y1-17231-02-00
|
$71.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER
90209-22191-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
CIRCLIP
93410-25010-00
Superseded by 99009-25400-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
GEAR, 4TH WHEEL
4DN-17241-00-00
|
$75.99 | ||
|
Unavailable |
|||
|
#20
GEAR, 1ST WHEEL (37T)
3Y1-17211-00-00
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, PLATE (T=1.0)
90201-20276-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
CIRCLIP
99009-20400-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
BEARING
93306-00426-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
BEARING
93306-30525-00
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
OIL SEAL
93102-25208-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
SPROCKET, DRIVE 16T (3Y11746160
93834-16100-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
HOLDER, SPROCKET
3Y1-17456-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT(3JP)
97017-06010-00
|
$4.05 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
