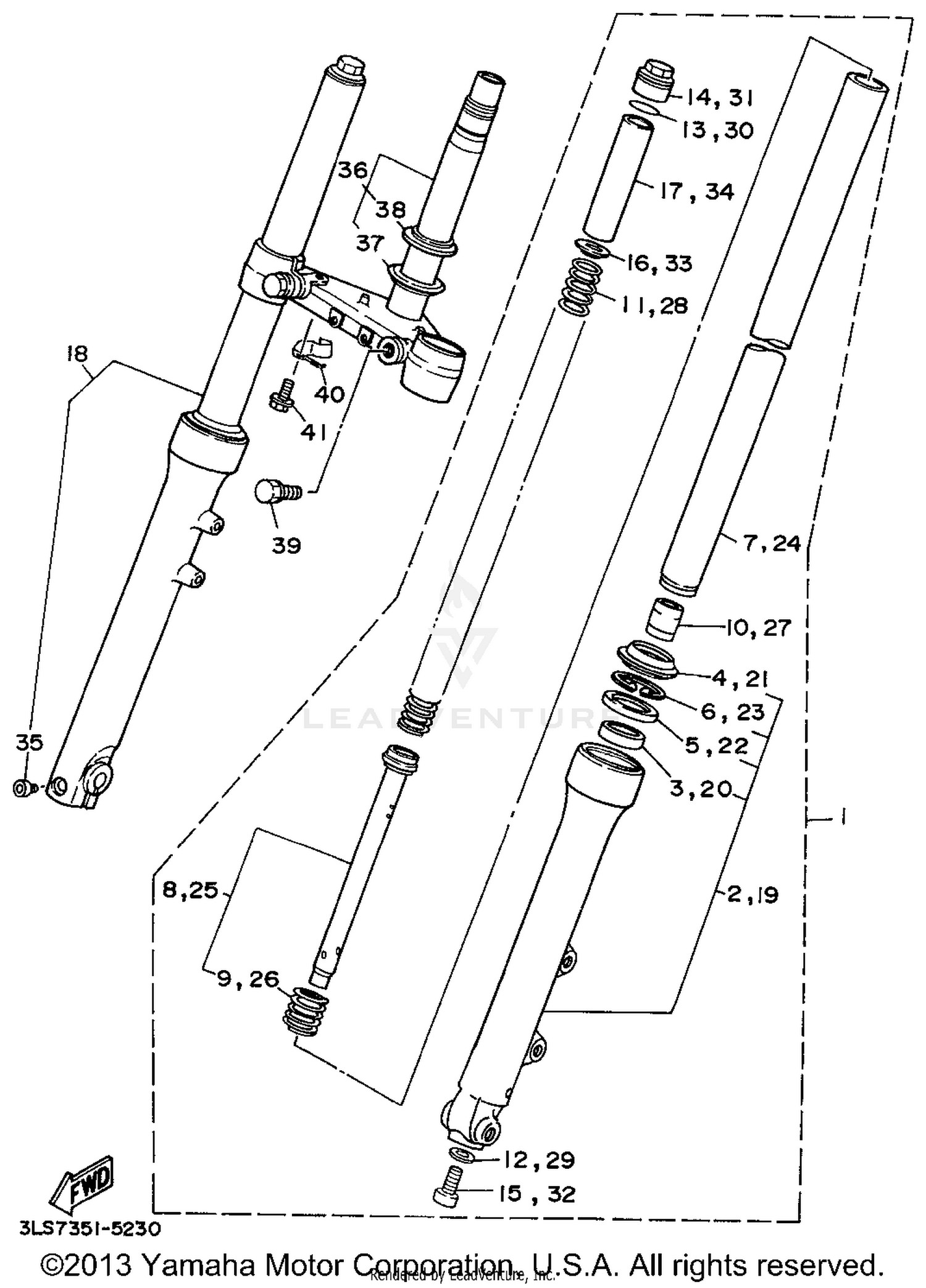

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FORK ASSY (L.H)
2UJ-23102-10-00
Superseded by 2UJ-23102-11-00
|
$478.99 | ||
|
Unavailable |
|||
|
#2
TUBE, OUTER (LEFT)
2UJ-23126-10-00
Superseded by 2UJ-23126-30-00
|
$244.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
METAL, SLIDE 1
51Y-23125-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SEAL, DUST
51Y-23144-00-00
Superseded by 2UJ-23144-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
OIL SEAL
51Y-23145-00-00
Superseded by 2UJ-23145-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
RING, SNAP
22W-23153-L0-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
INNER TUBE COMP. 1
2UJ-23110-00-00
|
$171.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
CYLINDER COMP., FRONT FORK
2UJ-23170-00-00
|
$76.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING, REBOUND
509-23151-L0-00
|
$16.99 | ||
|
Unavailable |
|||
|
#10
SPINDLE, TAPER
39K-23173-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPRING, FRONT FORK
2UJ-23141-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
GASKET
509-23158-L0-00
|
$17.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
O-RING
3J2-23114-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, CAP
2JN-23111-00-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, HEXAGON SOCKET HEAD
278-23181-50-00
Superseded by 3D8-23181-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, SPRING UPPER
3DM-23149-10-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPACER
58T-23118-L0-00
|
$13.49 | ||
|
Unavailable |
|||
|
#18
FRONT FORK ASSY (R.H)
2UJ-23103-10-00
Superseded by 2UJ-23103-11-00
|
$344.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
TUBE, OUTER (RIGHT)
2UJ-23136-10-00
Superseded by 2UJ-23136-30-00
|
$190.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
METAL, SLIDE 1
51Y-23125-00-00
|
$32.99 | ||
|
Unavailable |
|||
|
#21
SEAL, DUST
51Y-23144-00-00
Superseded by 2UJ-23144-00-00
|
$32.99 | ||
|
Unavailable |
|||
|
#22
OIL SEAL
51Y-23145-00-00
Superseded by 2UJ-23145-00-00
|
$24.99 | ||
|
Unavailable |
|||
|
#23
RING, SNAP
22W-23153-L0-00
|
$9.49 | ||
|
Unavailable |
|||
|
#24
INNER TUBE COMP. 1
2UJ-23110-00-00
|
$171.99 | ||
|
Unavailable |
|||
|
#25
CYLINDER COMP., FRONT FORK
2UJ-23170-00-00
|
$76.99 | ||
|
Unavailable |
|||
|
#26
SPRING, REBOUND
509-23151-L0-00
|
$16.99 | ||
|
Unavailable |
|||
|
#27
SPINDLE, TAPER
39K-23173-00-00
|
$24.99 | ||
|
Unavailable |
|||
|
#28
SPRING, FRONT FORK
2UJ-23141-00-00
|
$32.99 | ||
|
Unavailable |
|||
|
#29
GASKET
509-23158-L0-00
|
$17.99 | ||
|
Unavailable |
|||
|
#30
O-RING
3J2-23114-00-00
|
$9.49 | ||
|
Unavailable |
|||
|
#31
BOLT, CAP
2JN-23111-00-00
|
$44.99 | ||
|
Unavailable |
|||
|
#32
BOLT, HEXAGON SOCKET HEAD
278-23181-50-00
Superseded by 3D8-23181-00-00
|
$9.49 | ||
|
Unavailable |
|||
|
#33
WASHER, SPRING UPPER
3DM-23149-10-00
|
$6.49 | ||
|
Unavailable |
|||
|
#34
SPACER
58T-23118-L0-00
|
$13.49 | ||
|
Unavailable |
|||
|
#35
BOLT, HEXAGON SOCKET HEAD
91311-08035-00
Superseded by 91314-08035-00
|
$2.70 | ||
|
Available to order. Add to View Price |
|||
|
#36
UNDER BRACKET COMP.
3LS-23340-00-00
Superseded by 2UJ-23340-21-00
|
$216.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
SEAL, DUST
164-23462-00-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#38
. .RACE, BALL 1
156-23411-00-00
Superseded by B6E-23411-00-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#39
BOLT 1
2UJ-23346-00-00
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#40
HOLDER, BRAKE HOSE
3DM-25886-10-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#41
BOLT,FLANGE
95817-06010-00
|
$5.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
