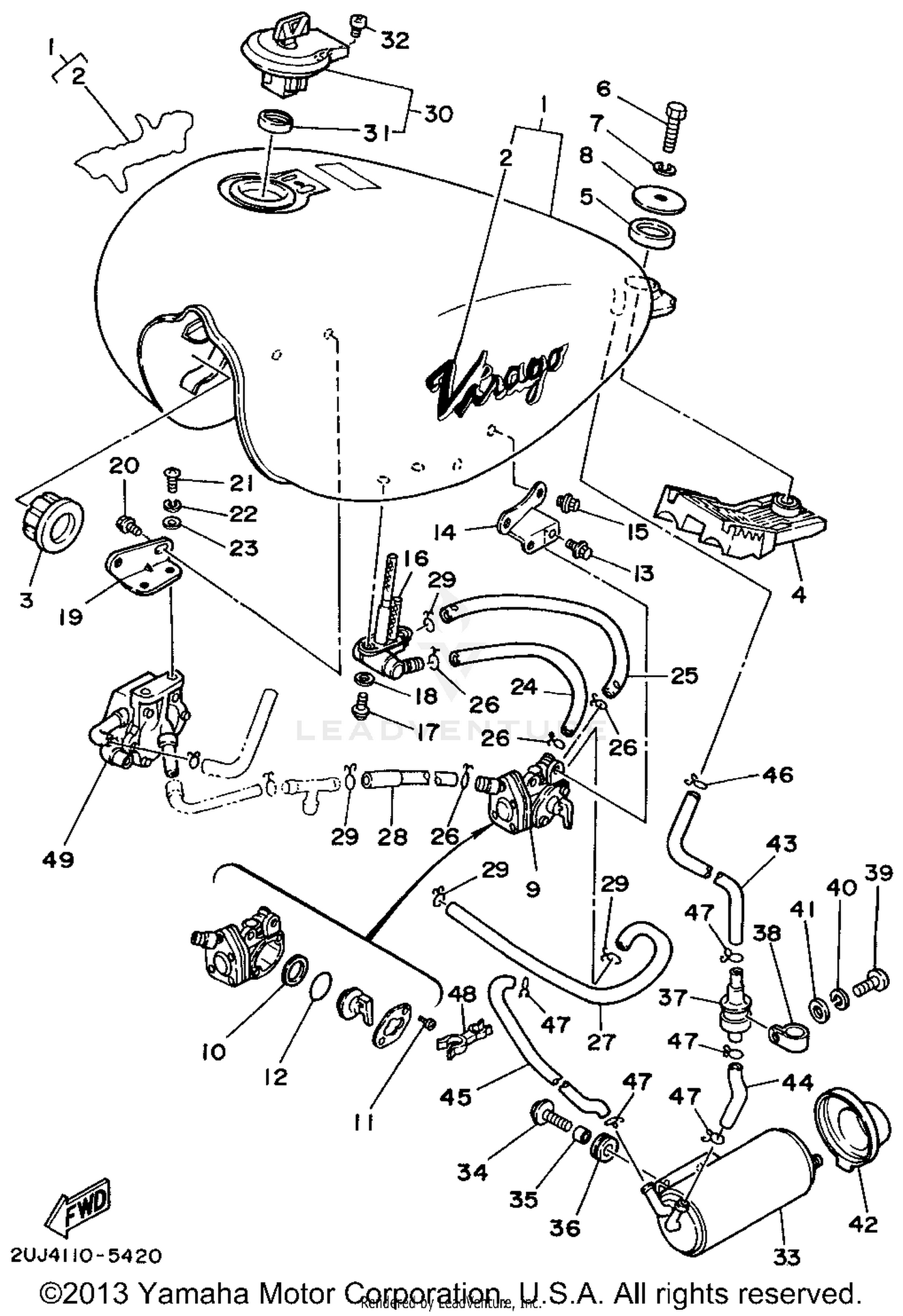

Fuel Tank California Only Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK COMP.
3BG-24110-00-07
|
$530.99 | ||
|
Unavailable |
|||
|
#2
EMBLEM 1
3LS-24161-00-00
|
$13.49 | ||
|
Unavailable |
|||
|
#3
DAMPER, LOCATING 1
4H7-24181-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
DAMPER, LOCATING 2
2UJ-24182-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
DAMPER, LOCATING 3
42X-24183-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT
97027-08035-00
Superseded by 97017-08035-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, SPRING
92907-08100-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, PLATE
90201-08569-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
FUEL COCK ASSY 1
2UJ-24500-00-00
Superseded by 2UJ-24500-10-00
|
$150.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
VALVE
3H3-24523-00-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW, PAN HEAD
98580-03008-00
|
$3.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
SEAL, COCK
1JK-24534-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE (SMALL HEAD)
95024-06010-00
|
$5.00 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
BRACKET, FUEL COCK
2UJ-24544-01-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE (SMALL HEAD)
95024-06010-00
|
$5.00 | ||
|
Unavailable |
|||
|
#16
FILTER ASSY
2UJ-24560-00-00
Superseded by 2UJ-24560-10-00
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW
90149-06011-00
|
$2.05 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
WASHER, PLATE
90202-05187-00
|
$1.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
BRACKET, FUEL PUMP
2UJ-24491-01-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, FLANGE (SMALL HEAD)
95024-06010-00
|
$5.00 | ||
|
Unavailable |
|||
|
#21
SCREW,PAN
98507-06012-00
Superseded by 98517-06012-00
|
$4.10 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, SPRING
92907-06100-00
|
$1.30 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
WASHER, PLATE
92907-06600-00
|
$1.00 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
HOSE (L400)
90445-11501-00
Superseded by 90445-116K9-00
|
$26.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
HOSE (L400)
90445-11754-00
Superseded by 90445-116K9-00
|
$26.99 | ||
|
Unavailable |
|||
|
#26
CLIP
90467-10008-00
Superseded by 90467-100A1-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
PIPE 2
2UJ-24312-01-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
PIPE 3
2UJ-24313-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
CLIP
90467-10008-00
Superseded by 90467-100A1-00
|
$8.49 | ||
|
Unavailable |
|||
|
#30
CAP ASSY
20K-24602-03-00
Superseded by 20K-24602-10-00
|
$89.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
PACKING, CAP
4X7-24612-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT
91317-05010-00
|
$2.75 | ||
|
Unavailable |
|||
|
#33
CANISTER ASSY
3BG-24170-00-00
|
$291.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
BOLT, WITH WASHER
90119-06118-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#35
COLLAR
90387-062M5-00
Superseded by 90387-0600V-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
GROMMET
90480-14323-00
Superseded by 90480-14329-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
ROLL OVER VALVE ASSY
25H-24180-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
CLAMP
90461-15100-00
Superseded by 90464-15014-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#39
SCREW, PAN HEAD
98507-05012-00
Superseded by 98517-05012-00
|
$5.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#40
WASHER, SPRING
92907-05100-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#41
WASHER, PLATE
92907-05600-00
|
$1.00 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#42
COVER, CANISTER
2JU-2419E-00-00
|
$204.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
PIPE 10
3BG-24321-00-00
Superseded by 3BG-24321-01-00
|
$22.99 | ||
|
Unavailable |
|||
|
#44
PIPE 11
3BG-24322-00-00
Superseded by 3BG-24322-01-00
|
$8.99 | ||
|
Unavailable |
|||
|
#45
PIPE 12
3BG-24323-00-00
|
$33.99 | ||
|
Unavailable |
|||
|
#46
CLIP
90467-09006-00
Superseded by 90467-090A2-00
|
$4.75 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#47
CLIP
90467-10008-00
Superseded by 90467-100A1-00
|
$8.49 | ||
|
Unavailable |
|||
|
#48
CLAMP
90464-16119-00
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#49
FUEL PUMP ASSY
3DM-13910-00-00
Superseded by 3DM-13910-01-00
|
$306.99 | ||
|
Available to order. Add to View Price |
|||
