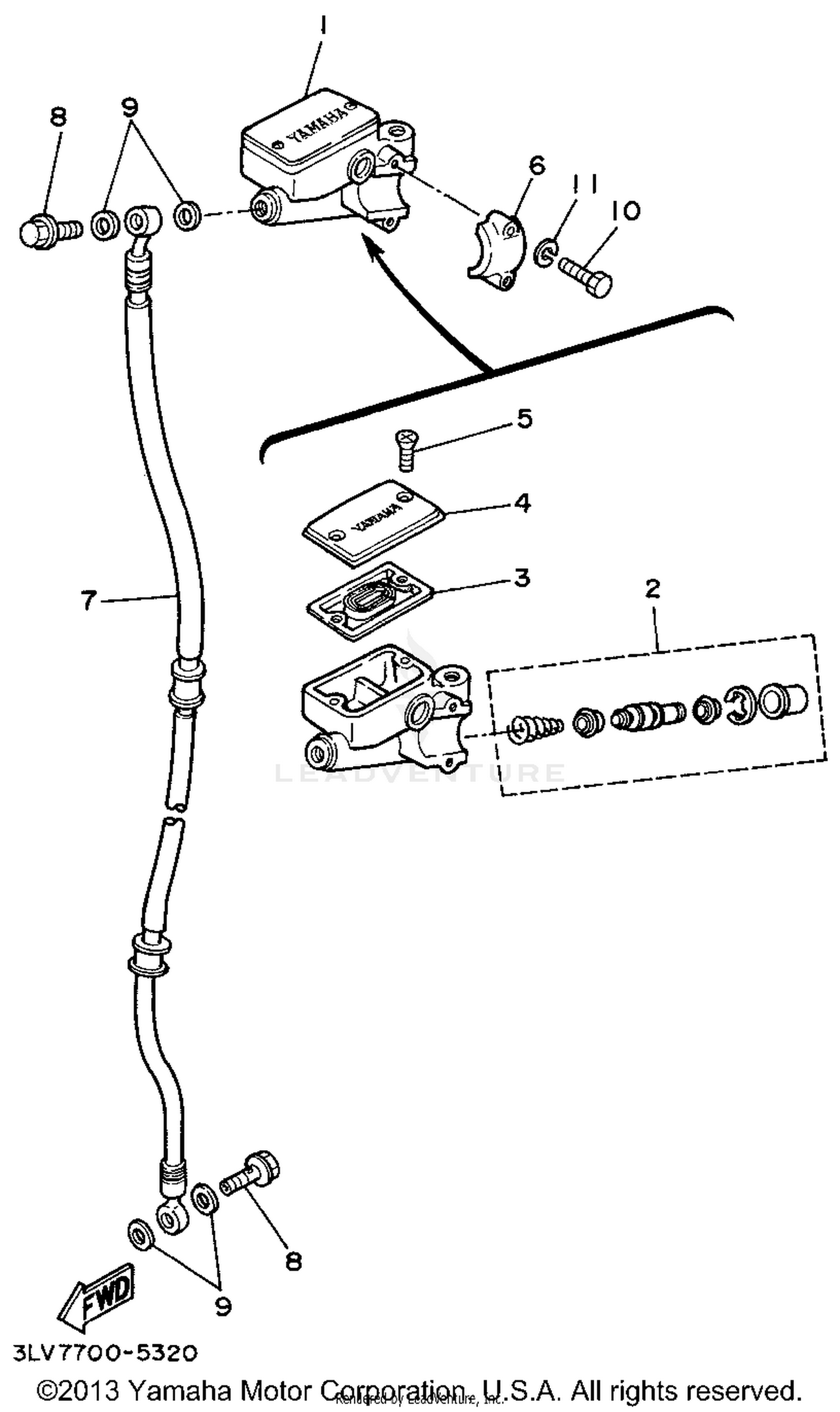

Front Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MASTER CYLINDER SUB ASSY
2UJ-25870-00-00
|
$279.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
CYLINDER KIT, MASTER
23L-W0041-00-00
|
$133.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
DIAPHRAGM, RESERVOIR
4L0-25854-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
CAP, RESERVOIR
4H7-25852-00-00
|
$43.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
SCREW, FLAT HEAD
98707-04012-00
|
$1.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
BRACKET, MASTER CYLINDER
4L0-25867-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
HOSE, BRAKE 1
3DN-25872-00-00
Superseded by 3DN-25872-01-00
|
$95.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, UNION
90401-10159-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, PLATE
90201-10118-00
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT
97007-06025-00
Superseded by 97017-06025-00
|
$4.55 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
WASHER, PLATE
92907-06600-00
|
$1.00 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
