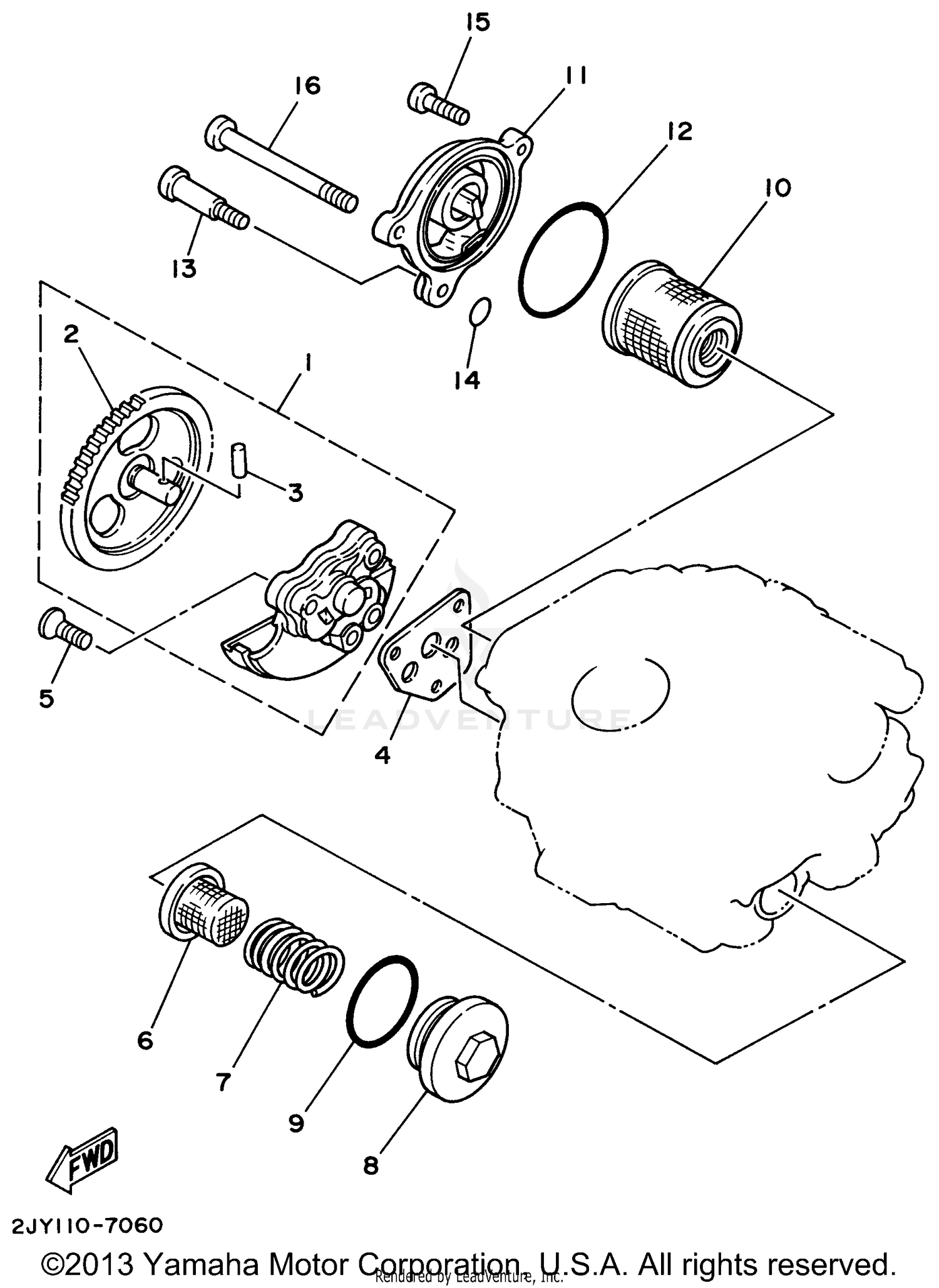

Oil Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
OIL PUMP ASSY
5H0-13300-00-00
Superseded by 5H0-13300-02-00
|
$179.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
GEAR, PUMP DRIVEN 2 (45T)
5H0-13326-00-00
Superseded by 5H0-13326-01-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIN, DOWEL
93603-12030-00
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET, PUMP COVER
4BE-13329-00-00
Superseded by 3GD-13329-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW, FLAT HEAD
98707-06030-00
|
$7.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
STRAINER, OIL
51Y-13411-00-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPRING, COMPRESSION
90501-18576-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLUG, DRAIN
5H0-15351-00-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
O-RING
93210-35389-00
Superseded by 93210-347A1-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
ELEMENT ASSY, OIL CLEANER
5H0-13440-09-00
|
$11.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
COVER, OIL ELEMENT
3AW-13447-00-00
Superseded by 3AW-13447-01-00
|
$20.99 | ||
|
Unavailable |
|||
|
#12
O-RING
93210-54175-00
|
$13.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
BOLT
90109-06419-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
O-RING
93210-07135-00
|
$6.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
BOLT, FLANGE
95807-06025-00
Superseded by 95817-06025-00
|
$1.75 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW, PAN HEAD
98507-06075-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
