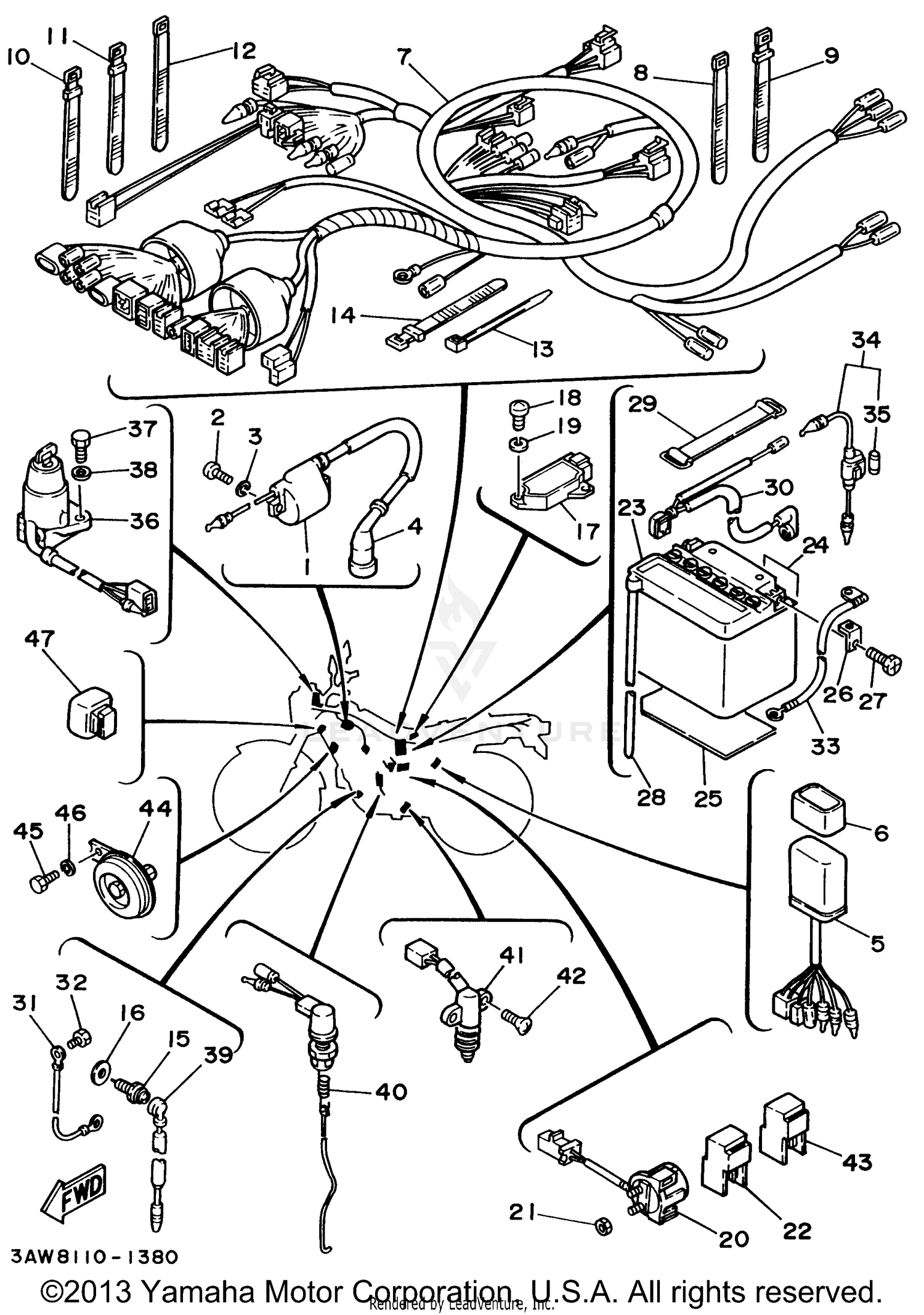

Electrical 1 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Ignition Coil Assy
5M0-82310-M0-00
Superseded by 4RP-82310-25-00
|
$59.99 | ||
|
Unavailable |
|||
|
#2
BOLT
97007-06020-00
Superseded by 97017-06020-00
|
$4.06 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
WASHER, SPRING
92907-06100-00
|
$1.30 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
PLUG CAP ASSY
3NS-82370-00-00
|
$41.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
C.D.I. UNIT ASSEMBLY
2YG-85540-M0-00
|
$410.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BAND
34X-85546-00-00
|
$12.49 | ||
|
Unavailable |
|||
|
#7
WIRE HARNESS ASSEMBLY
2YG-82590-00-00
|
$191.99 | ||
|
Unavailable |
|||
|
#8
BAND, SWITCH CORD
437-83936-11-00
|
$5.00 | ||
|
Available to order. Add to View Price |
|||
|
#9
BAND, SWITCH CORD
25G-83936-01-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BAND, SWITCH CORD
437-83936-01-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BAND, SWITCH CORD
437-83936-01-00
|
$8.49 | ||
|
Unavailable |
|||
|
#12
BAND, SWITCH CORD
437-83936-11-00
|
$5.00 | ||
|
Unavailable |
|||
|
#13
BAND
90465-13169-00
Superseded by 1UA-82591-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
BAND, SWITCH CORD
437-83936-01-00
|
$8.49 | ||
|
Unavailable |
|||
|
#15
NEUTRAL SWITCH ASSY
4KM-82540-00-00
Superseded by 4GY-82540-10-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
GASKET
90430-10171-00
|
$3.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
RECTIFIER & REGULATOR ASSEMBLY
47X-81960-A2-00
Superseded by 47X-81960-A3-00
|
$206.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW,PAN HEAD
98507-06016-00
|
$3.48 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
WASHER, SPRING
92907-06100-00
|
$1.30 | ||
|
Unavailable |
|||
|
#20
STARTER RELAY ASSY (MS5D-611)
3AY-81940-00-00
Superseded by 4KD-81940-00-00
|
$125.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT, FLANGE
95707-06500-00
|
$1.00 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
RELAY ASSY
1RL-81950-92-00
Superseded by 12R-81950-02-00
|
$76.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
YB7CA YUASA BATTERY
BTG-GM7CZ-3D-00
Superseded by YB7-CA000-00-00
|
$92.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
LABEL, BATTERY
118-82141-09-00
Superseded by 40A-82141-G0-00
|
$0.85 | ||
|
Unavailable |
|||
|
#25
SEAT, BATTERY
51Y-82122-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
TERMINAL 1
2JX-82103-00-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
SCREW, HEXAGON
90153-06032-00
|
$3.85 | ||
|
Available to order. Add to View Price |
|||
|
#28
PIPE
90445-082F3-00
Superseded by 90445-084J0-00
|
$20.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
BAND, BATTERY
120-82131-00-00
Superseded by 7H3-82131-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
WIRE, PLUS LEAD
2JX-82115-00-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
WIRE, MINUS LEAD
5H0-82116-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT
90109-06557-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#33
WIRE, MINUS LEAD
2JX-82116-00-00
|
$15.49 | ||
|
Unavailable |
|||
|
#34
FUSE HOLDER ASSEMBLY
2TV-82150-02-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
FUSE (15A)
4X7-82151-00-00
|
$4.30 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#36
MAIN SWITCH STEERING LOCK
2GK-82501-01-00
|
$215.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
BOLT
97007-06016-00
Superseded by 97017-06016-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#38
WASHER, PLATE
92907-06600-00
|
$1.00 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#39
WIRE, LEAD
2JX-82541-00-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#40
STOP SWITCH ASSY
2JX-82530-02-00
Superseded by 5VC-82530-01-00
|
$30.99 | ||
|
Unavailable |
|||
|
#41
SWITCH, SIDE STAND
1VJ-82566-00-00
|
$107.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
SCREW, FLAT HEAD
90152-05021-00
Superseded by 98707-05016-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
RELAY ASSY (29U-93)
29U-81950-93-00
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#44
HORN
3TJ-83371-00-00
Superseded by 4LR-83371-11-00
|
$53.99 | ||
|
Available to order. Add to View Price |
|||
|
#45
BOLT
97007-06012-00
Superseded by 97017-06012-00
|
$4.05 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#46
WASHER, SPRING
92907-06100-00
|
$1.30 | ||
|
Unavailable |
|||
|
#47
FLASHER RELAY ASSY
30X-83350-20-00
|
$111.99 | ||
|
Available to order. Add to View Price |
|||
