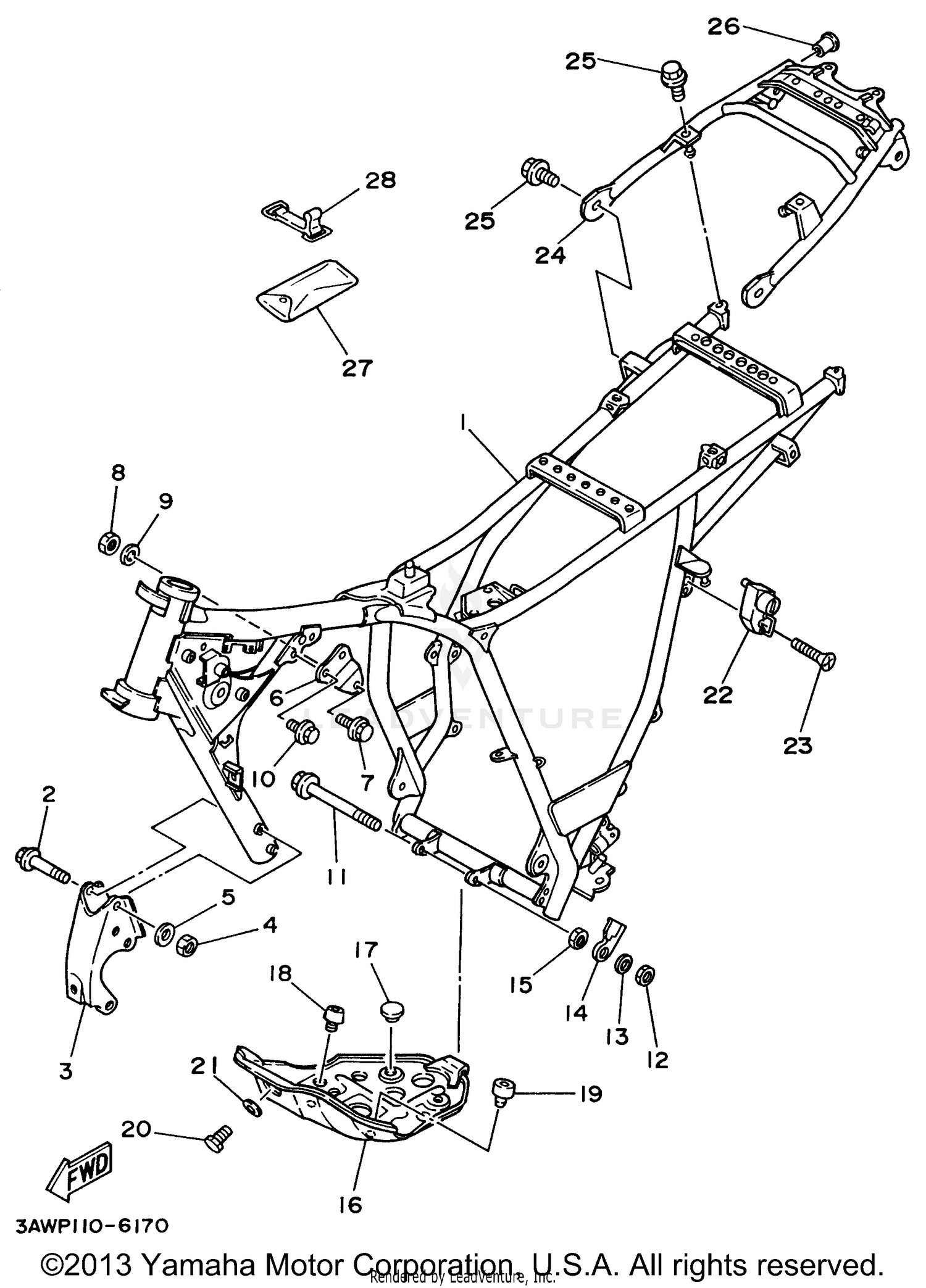

Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME COMP.
2YG-21110-00-G3
|
$759.99 | ||
|
Unavailable |
|||
|
#
FRAME COMP.
3AW-21110-00-G3
|
$836.99 | ||
|
Unavailable |
|||
|
#2
BOLT, FLANGE
95817-08065-00
Superseded by 90105-084A1-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
STAY, ENGINE 3
1RL-21316-00-G3
|
$61.99 | ||
|
Unavailable |
|||
|
#
STAY, ENGINE 3
2JX-21316-00-G3
|
$51.99 | ||
|
Unavailable |
|||
|
#4
NUT, SELF-LOCKING
90185-08089-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, PLATE
90201-094G1-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
STAY, ENGINE 2
2JX-21315-00-00
|
$12.99 | ||
|
Unavailable |
|||
|
#7
BOLT, FLANGE
95817-08050-00
|
$3.70 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT, SELF-LOCKING
90185-08089-00
|
$10.49 | ||
|
Unavailable |
|||
|
#9
WASHER, PLATE
90201-094G1-00
|
$10.49 | ||
|
Unavailable |
|||
|
#10
BOLT, FLANGE
90105-08177-00
Superseded by 90105-08066-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE
95817-08120-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT, SELF-LOCKING
90185-08089-00
|
$10.49 | ||
|
Unavailable |
|||
|
#13
WASHER, PLATE
90201-094G1-00
|
$10.49 | ||
|
Unavailable |
|||
|
#14
CLAMP, CABLE
1RL-21337-00-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT, SELF-LOCKING
90185-08055-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
PROTECTOR, ENGINE
1RL-21471-00-35
|
$134.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
STOPPER, MAIN STAND
128-27114-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
DAMPER, RUBBER 1
34L-21485-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
STOPPER, MAIN STAND
4N0-27114-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT
97007-06016-00
Superseded by 97017-06016-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
WASHER, PLATE
92907-06600-00
|
$1.00 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
HELMET HANGER ASSY
26H-21308-00-00
Superseded by 26H-21308-01-00
|
$89.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW, COUNTERSUNK
90151-06038-00
Superseded by 90149-06150-00
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
|
#24
REAR FRAME COMP.
2JX-21190-00-G3
|
$187.99 | ||
|
Unavailable |
|||
|
#25
BOLT, FLANGE
95827-06012-00
Superseded by 95817-06012-00
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#26
PLUG
90338-12081-00
Superseded by 90605-50201-00
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#27
TOOL KIT
2JX-28100-00-00
|
$93.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
BAND, BATTERY
3TJ-82131-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
