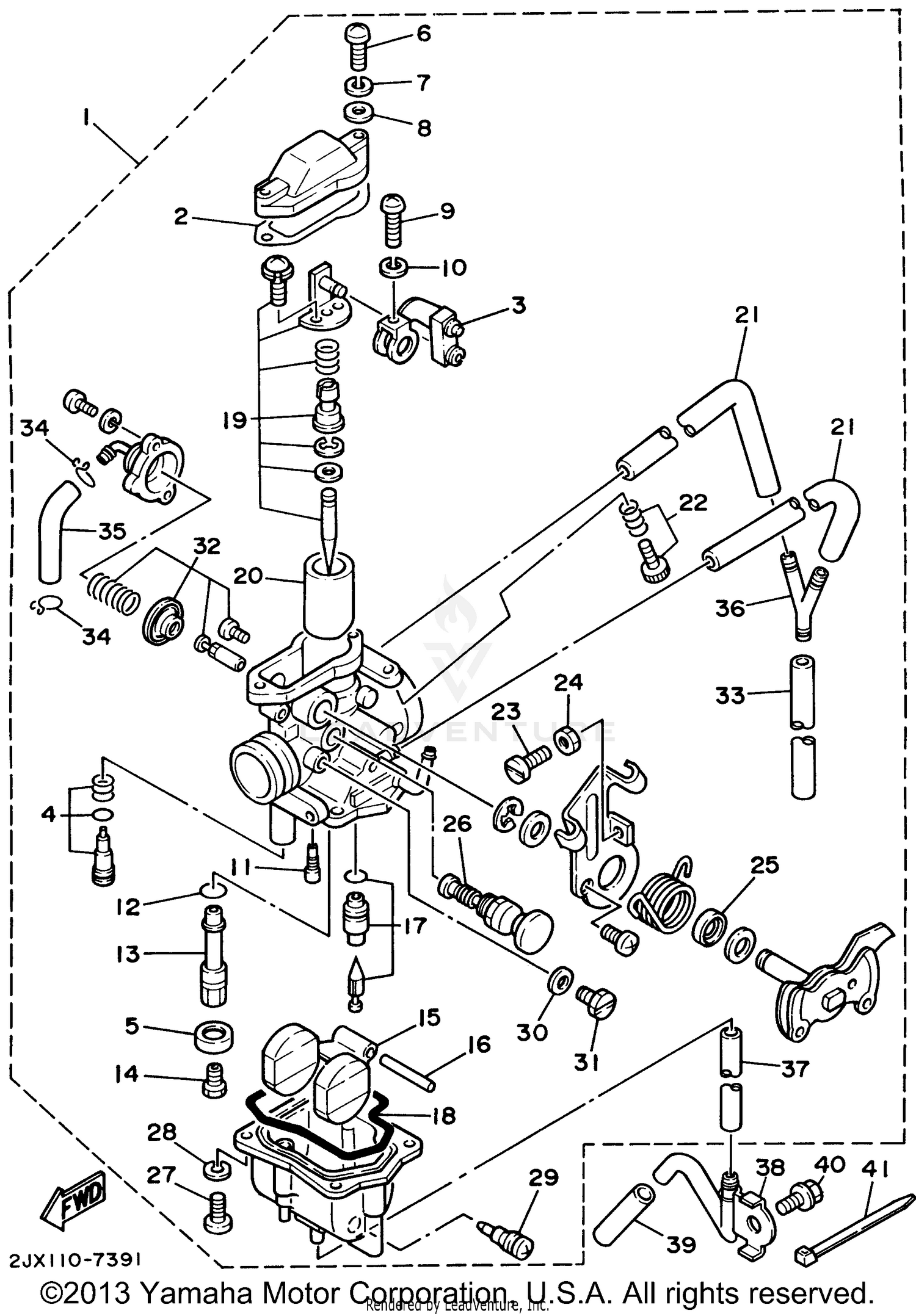

Carburetor California Only Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CARBURETOR ASSY 1
2JX-14301-00-00
Superseded by 2JX-14301-02-00
|
$451.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
GASKET
30X-14198-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BRACKET 1
1LN-14291-00-00
|
$62.99 | ||
|
Unavailable |
|||
|
#4
PILOT SCREW SET (30X-14105-00
51Y-14105-00-00
|
$14.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
PLATE, BAFFLE
1KH-14153-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW, PAN HEAD
98517-04016-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, SPRING
92990-04100-00
|
$0.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
WASHER, PLATE
92901-04600-00
Superseded by 92990-04600-00
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW, PAN HEAD
98580-04016-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, SPRING
92990-04100-00
|
$0.95 | ||
|
Unavailable |
|||
|
#11
JET, PILOT ( 40)
43F-14342-20-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
GASKET
360-24512-00-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
NOZZLE, MAIN
2JX-14341-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
JET, MAIN (114)
288-14343-57-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
FLOAT
2JN-14385-00-00
Superseded by 25N-14385-00-00
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
PIN, FLOAT
6E5-14386-01-00
|
$5.65 | ||
|
Available to order. Add to View Price |
|||
|
#17
NEEDLE VALVE SET
2JX-14107-00-00
|
$51.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
GASKET, FLOAT CHAMBER
30X-14384-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
NEEDLE SET
2JX-1490J-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
VALVE, THROTTLE 1
2JX-14312-35-00
|
$73.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
PIPE
1WN-14197-00-00
Superseded by 5Y1-14197-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
THROTTLE SCREW SET
3WP-14103-00-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW, PAN HEAD
98580-04020-00
|
$5.55 | ||
|
Available to order. Add to View Price |
|||
|
#24
NUT
30X-14358-00-00
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
|
#25
PLATE, STAY
5Y1-14572-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
PLUNGER, STARTER
51Y-14371-00-00
Superseded by 51Y-14371-01-00
|
$130.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
SCREW,PANHEAD
98517-04012-00
|
$4.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
WASHER, SPRING
92990-04100-00
|
$0.95 | ||
|
Unavailable |
|||
|
#29
SCREW, AIR ADJUSTING
14T-14104-00-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
GASKET
5H0-14126-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
SCREW
5H0-14991-00-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
DIAPHRAGM SET 1
5Y1-1490A-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
PIPE
56R-14196-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
CLIP
2JX-14159-00-00
Superseded by 90467-08021-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
PIPE
2JX-14149-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
WAY 3
90413-05008-00
Superseded by 90413-05013-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
PIPE
5Y1-14396-00-00
|
$4.90 | ||
|
Available to order. Add to View Price |
|||
|
#38
PIPE
2JX-14193-00-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
HOSE (L200)
2JX-14148-00-00
Superseded by 90445-07176-00
|
$7.70 | ||
|
Available to order. Add to View Price |
|||
|
#40
SCREW, PAN HEAD
98507-08012-00
|
$1.50 | ||
|
Available to order. Add to View Price |
|||
|
#41
CLAMP
90464-20064-00
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
