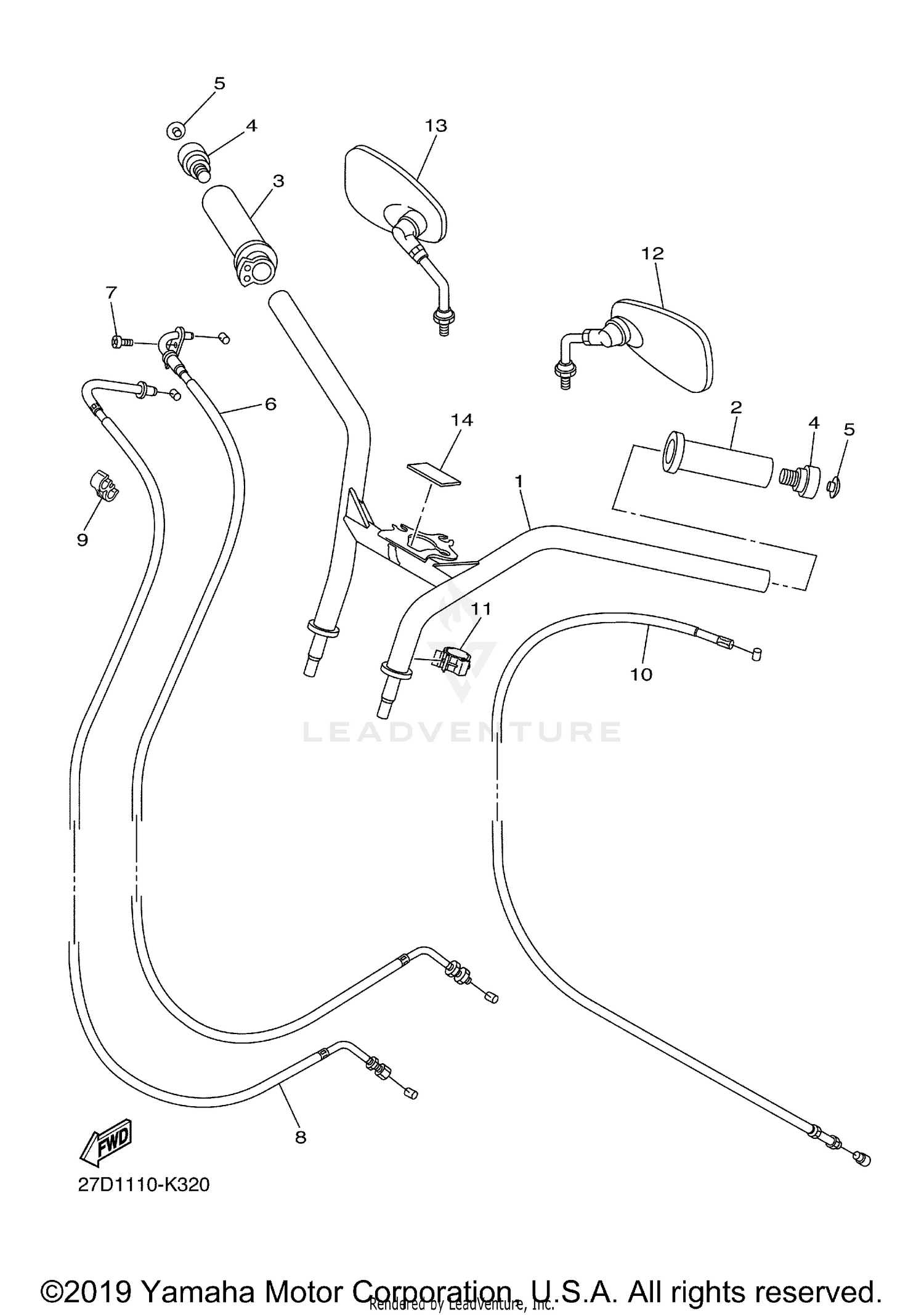

Steering Handle Cable Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HANDLEBAR
27D-26111-10-00
|
$386.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
GRIP LH
4NK-26241-00-00
Superseded by 4NK-26241-01-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
GRIP ASSY
4XY-26240-00-00
|
$99.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
END, GRIP
5EL-26246-00-00
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
PLUG
90338-10164-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
CABLE, THROTTLE 1
27D-26311-00-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW, WITH WASHER
98507-05016-00
|
$1.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
CABLE, THROTTLE 2
27D-26312-00-00
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
CLAMP
90464-06214-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#10
CABLE, CLUTCH
27D-26335-00-00
|
$63.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
CLAMP
90464-20191-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
REAR VIEW MIRROR ASSY (LEFT)
2DX-26280-00-00
|
$140.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
REAR VIEW MIRROR ASSY (RIGHT)
2DX-26290-00-00
|
$132.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
DAMPER, PLATE
90520-04007-00
|
$1.80 | ||
|
Available to order. Add to View Price |
|||
