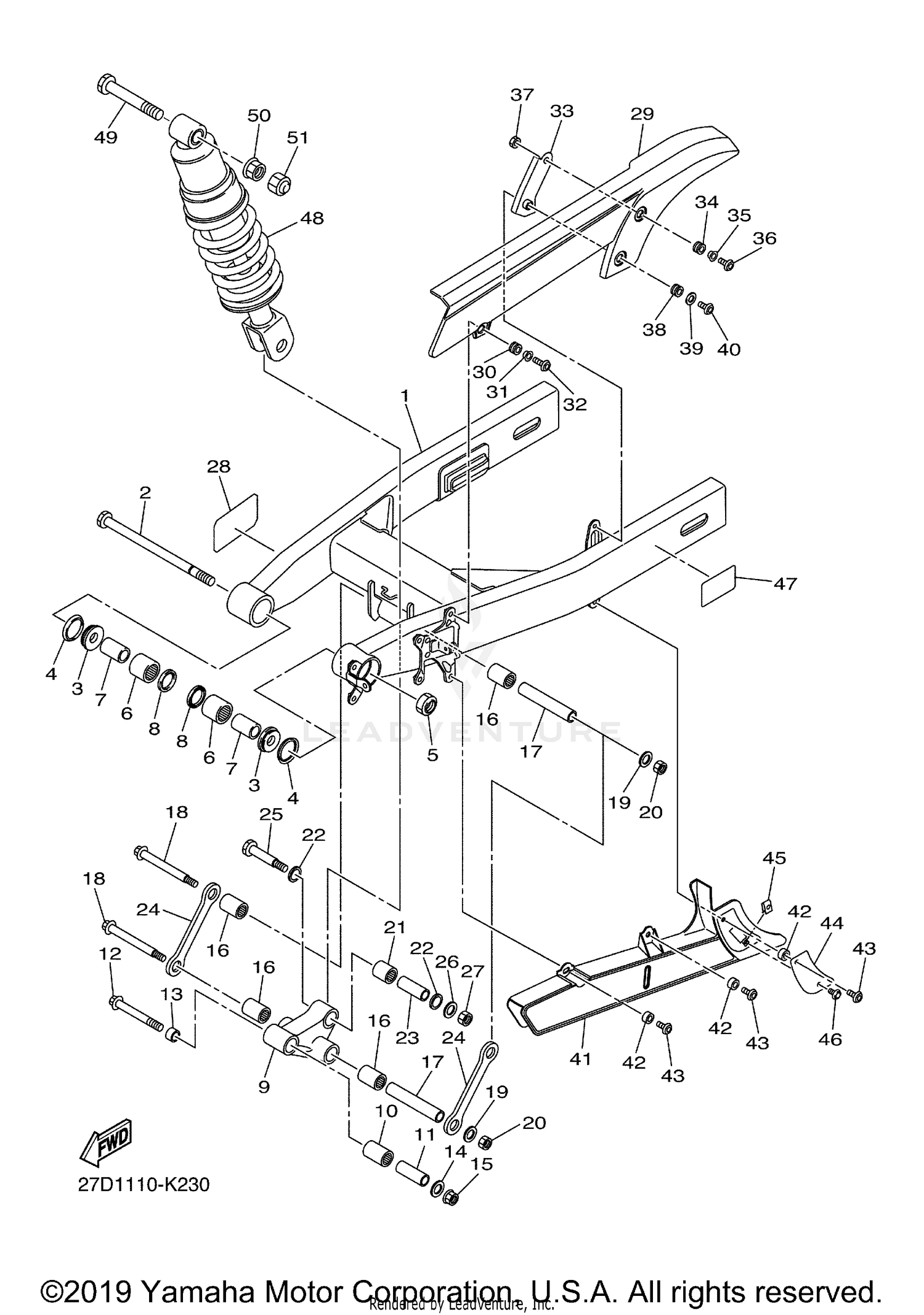

Rear Arm Suspension Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REAR ARM COMP.
27D-22110-00-00
|
$867.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
SHAFT, PIVOT
27D-22141-00-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
COLLAR
90387-16030-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
OIL SEAL
93108-44001-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT, SELF-LOCKING
90185-16002-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
BEARING
93317-52897-00
|
$63.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
COLLAR
90387-16029-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
OIL SEAL
93109-28001-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
ARM, RELAY
3D8-2217A-00-00
|
$124.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BEARING
93317-42060-00
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
COLLAR
90387-100T8-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE
90105-10233-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
COLLAR
90387-10049-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, PLATE
90201-101J1-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
NUT
90179-10658-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
BEARING
93317-41761-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
COLLAR
90387-126T1-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT
90101-12027-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, PLATE
90201-12045-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT, U
95612-12100-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
BEARING
93317-31771-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
OIL SEAL
93109-17071-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
COLLAR
90387-127W0-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
ARM 1
3D8-2217M-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT
90109-10024-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER, PLATE
90201-10035-00
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#27
NUT, U
95612-10100-00
Superseded by 95617-10100-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
PROTECTOR
5PX-21652-00-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
CASE, CHAIN
5S7-22311-00-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
GROMMET
90480-13004-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
COLLAR
90387-06171-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
SCREW
90149-06302-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
STAY, CHAIN CASE
3D8-2213J-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
GROMMET
90480-13004-00
|
$8.49 | ||
|
Unavailable |
|||
|
#35
COLLAR
90387-06171-00
|
$9.49 | ||
|
Unavailable |
|||
|
#36
BOLT, HEXAGON SOCKET BUTTON
90111-06038-00
|
$4.65 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#37
NUT, HEXAGON
95302-06600-00
Superseded by 95380-06600-00
|
$4.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#38
GROMMET
90480-13004-00
|
$8.49 | ||
|
Unavailable |
|||
|
#39
WASHER, PLATE
90201-06095-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#40
SCREW
90149-06302-00
|
$6.49 | ||
|
Unavailable |
|||
|
#41
CASE, CHAIN 2
3D8-22312-00-00
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
COLLAR
90387-06372-00
Superseded by 90387-06106-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#43
BOLT, HEXAGON SOCKET BUTTON
90111-06038-00
|
$4.65 | ||
|
Unavailable |
|||
|
#44
PLATE, GUIDE 1
5S7-22341-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#45
NUT, SPRING
90183-06053-00
Superseded by 90183-06069-00
|
$7.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#46
SCREW
90111-06078-00
Superseded by 90149-06298-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#47
LABEL, TIRE
27D-21668-00-00
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#48
SHOCK ABSORBER ASSY, REAR
27D-22210-00-00
|
$398.99 | ||
|
Unavailable |
|||
|
#49
BOLT
90109-10028-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#50
NUT
90179-10658-00
|
$10.49 | ||
|
Unavailable |
|||
|
#51
CAP
5YU-2143A-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
