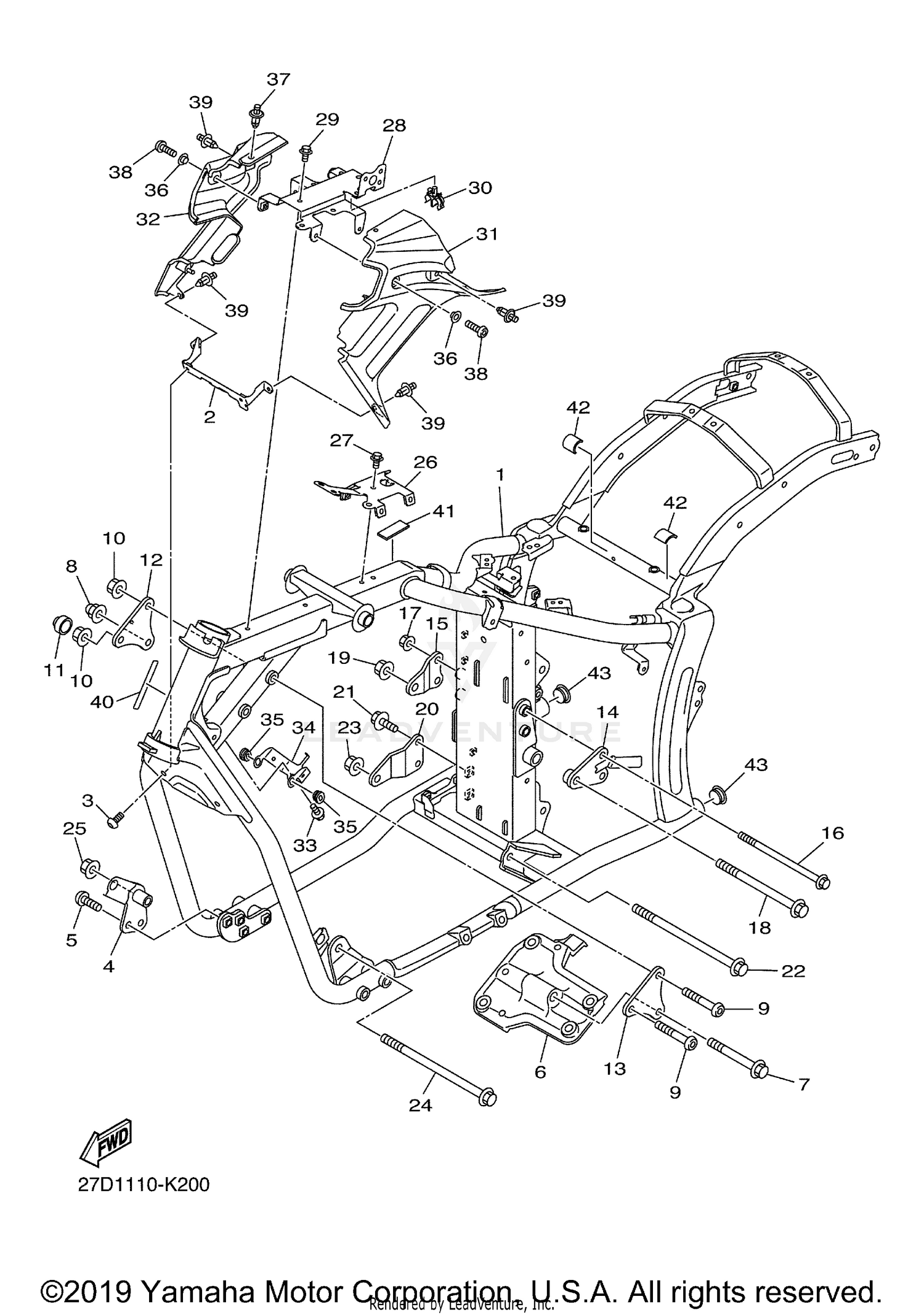

Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME COMP.
27D-21110-00-00
|
$2,027.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BRACKET, 10
27D-2119M-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, BUTTON HEAD
92017-06014-00
|
$4.60 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
STAY, ENGINE 7
27D-21387-00-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, HEX. SOCKET BUTTON
90111-10047-00
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#6
STAY, ENGINE 3
27D-21317-00-00
|
$120.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, FLANGE
90105-12083-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT, CROWN
90176-12003-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, HEX. SOCKET BUTTON
90111-10052-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT, SELF-LOCKING
90185-10011-00
|
$4.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
CAP
5YU-2143A-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BRACKET 11
27D-2114V-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BRACKET
27D-2116B-00-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
STAY, ENGINE 4
27D-21318-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
STAY, ENGINE 5
27D-21314-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE
90105-10391-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT, S/L FLANGE
95602-10200-00
|
$2.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
BOLT, FLANGE
90105-12080-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT, SELF-LOCKING
90185-12002-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
STAY, ENGINE 3
3D8-21316-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, FLANGE
90105-10195-00
Superseded by 95817-10020-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, FLANGE
90105-12044-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT, SELF-LOCKING
90185-12002-00
|
$13.49 | ||
|
Unavailable |
|||
|
#24
BOLT, FLANGE
90105-12045-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
NUT, SELF-LOCKING
90185-12002-00
|
$13.49 | ||
|
Unavailable |
|||
|
#26
BRACKET, COIL
27D-21359-00-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT, FLANGE
95022-06012-00
|
$3.55 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
BRACKET, FRONT UPPER 1
27D-21415-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT, FLANGE
95022-06012-00
|
$3.55 | ||
|
Unavailable |
|||
|
#30
CLAMP
90464-11007-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#31
COVER, SIDE 5
27D-2171E-00-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
COVER, SIDE 6
27D-2171X-00-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
BOLT, FLANGE
95027-06012-00
|
$4.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#34
STAY, SIDE COVER 2
27D-21322-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
GROMMET
90480-01022-00
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#36
SPACER
90560-06244-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
RIVET
90269-07007-00
|
$4.40 | ||
|
Available to order. Add to View Price |
|||
|
#38
SCREW
90149-06298-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#39
RIVET
90269-05079-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#40
PROTECTOR
3D8-2117G-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#41
DAMPER
5H0-8235Y-M0-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#42
PROTECTOR
3MA-27491-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#43
PLUG
90338-27007-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
