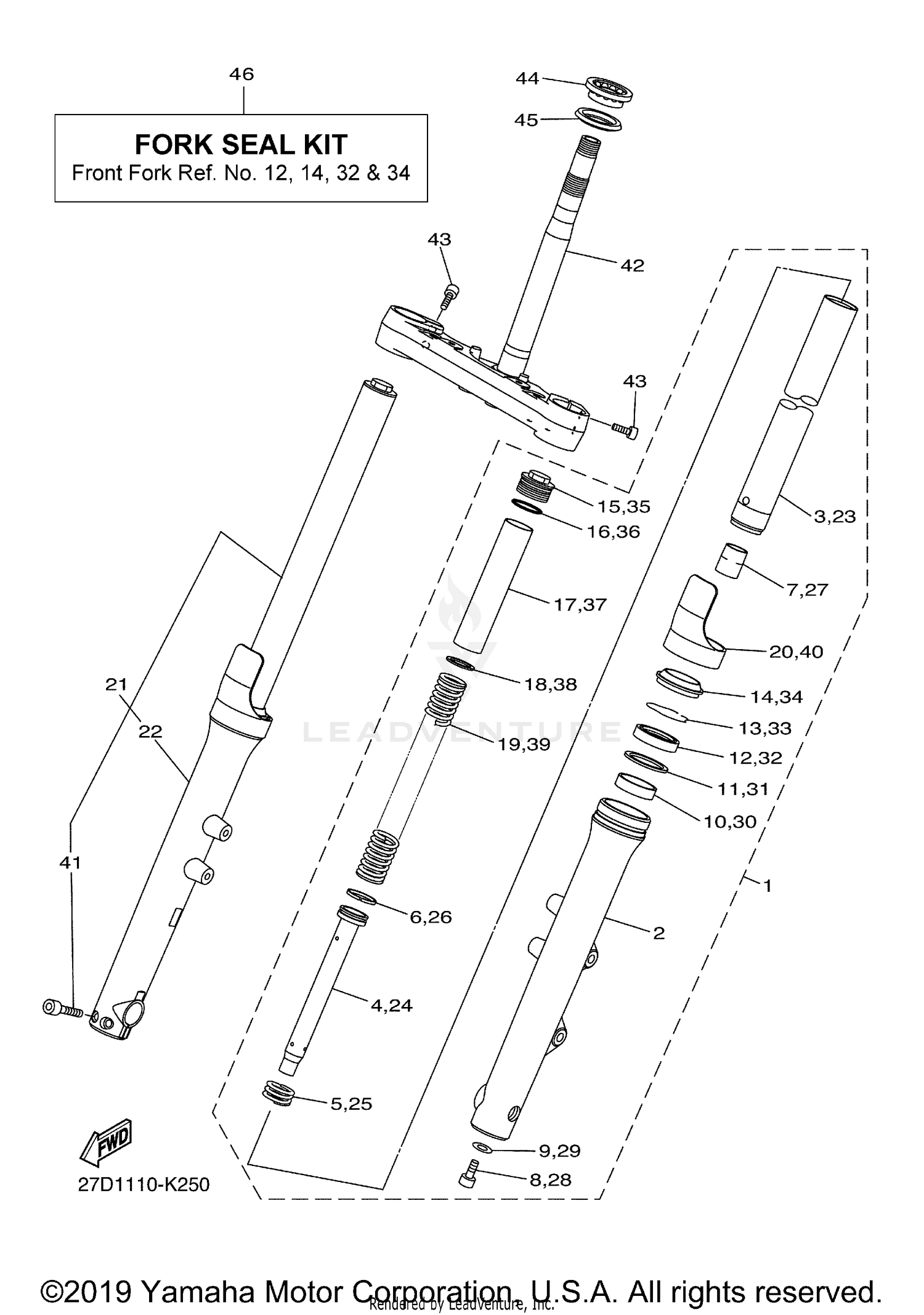

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FORK ASSY (L.H)
27D-23102-11-00
|
$569.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
TUBE, OUTER (L.H)
27D-23126-11-00
|
$270.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
INNER TUBE COMP. 1
27D-23110-00-00
|
$248.74 | ||
|
Available to order. Add to View Price |
|||
|
#4
PISTON, FRONT FORK
27D-23171-00-00
|
$65.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING, REBOUND
3VD-23151-00-00
|
$2.15 | ||
|
Unavailable |
|||
|
#6
RING, PISTON
27D-23157-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPINDLE, TAPER
27D-23173-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, HEXAGON SOCKET HEAD
90110-10N52-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, UNION
90430-10171-00
|
$3.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
METAL, SLIDE 1
3VD-23125-10-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
GUIDE, COVER UPPER
3VD-23115-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
OIL SEAL
5VU-23145-00-00
|
$32.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
RING, SNAP
3VD-23156-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
SEAL, DUST
3VD-23144-00-00
|
$30.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
FORK BOLT
27D-2311H-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
O-RING
93210-35N02-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPACER
27D-23118-00-00
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, PLATE (T=1.6)
90201-25289-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
SPRING, FRONT FORK
27D-23141-00-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
COVER
4TX-2331G-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
FRONT FORK ASSY (R.H)
27D-23103-11-00
|
$456.99 | ||
|
Unavailable |
|||
|
#22
TUBE, OUTER (R.H)
27D-23136-11-00
|
$240.99 | ||
|
Unavailable |
|||
|
#23
INNER TUBE COMP. 1
27D-23110-00-00
|
$248.74 | ||
|
Unavailable |
|||
|
#24
PISTON, FRONT FORK
27D-23171-00-00
|
$65.99 | ||
|
Unavailable |
|||
|
#25
SPRING, REBOUND
3VD-23151-00-00
|
$2.15 | ||
|
Unavailable |
|||
|
#26
RING, PISTON
27D-23157-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#27
SPINDLE, TAPER
27D-23173-00-00
|
$33.99 | ||
|
Unavailable |
|||
|
#28
BOLT, HEXAGON SOCKET HEAD
90110-10N52-00
|
$8.49 | ||
|
Unavailable |
|||
|
#29
BOLT, UNION
90430-10171-00
|
$3.45 | ||
|
Unavailable |
|||
|
#30
METAL, SLIDE 1
3VD-23125-10-00
|
$43.99 | ||
|
Unavailable |
|||
|
#31
GUIDE, COVER UPPER
3VD-23115-00-00
|
$12.99 | ||
|
Unavailable |
|||
|
#32
OIL SEAL
5VU-23145-00-00
|
$32.99 | ||
|
Unavailable |
|||
|
#33
RING, SNAP
3VD-23156-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#34
SEAL, DUST
3VD-23144-00-00
|
$30.99 | ||
|
Unavailable |
|||
|
#35
FORK BOLT
27D-2311H-00-00
|
$31.99 | ||
|
Unavailable |
|||
|
#36
O-RING
93210-35N02-00
|
$4.45 | ||
|
Unavailable |
|||
|
#37
SPACER
27D-23118-00-00
|
$59.99 | ||
|
Unavailable |
|||
|
#38
WASHER, PLATE (T=1.6)
90201-25289-00
|
$9.49 | ||
|
Unavailable |
|||
|
#39
SPRING, FRONT FORK
27D-23141-00-00
|
$41.99 | ||
|
Unavailable |
|||
|
#40
COVER
4TX-2331G-00-00
|
$18.99 | ||
|
Unavailable |
|||
|
#41
BOLT, HEXAGON SOCKET HEAD
91314-08035-00
|
$2.70 | ||
|
Available to order. Add to View Price |
|||
|
#42
UNDER BRACKET COMP.
27D-23340-10-00
|
$333.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
BOLT, HEXAGON SOCKET HEAD
91314-10025-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#44
BEARING
93399-99932-00
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#45
SEAL, STEERING
3FV-23462-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#46
FORK SEAL KIT
5VU-W003B-00-00
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
