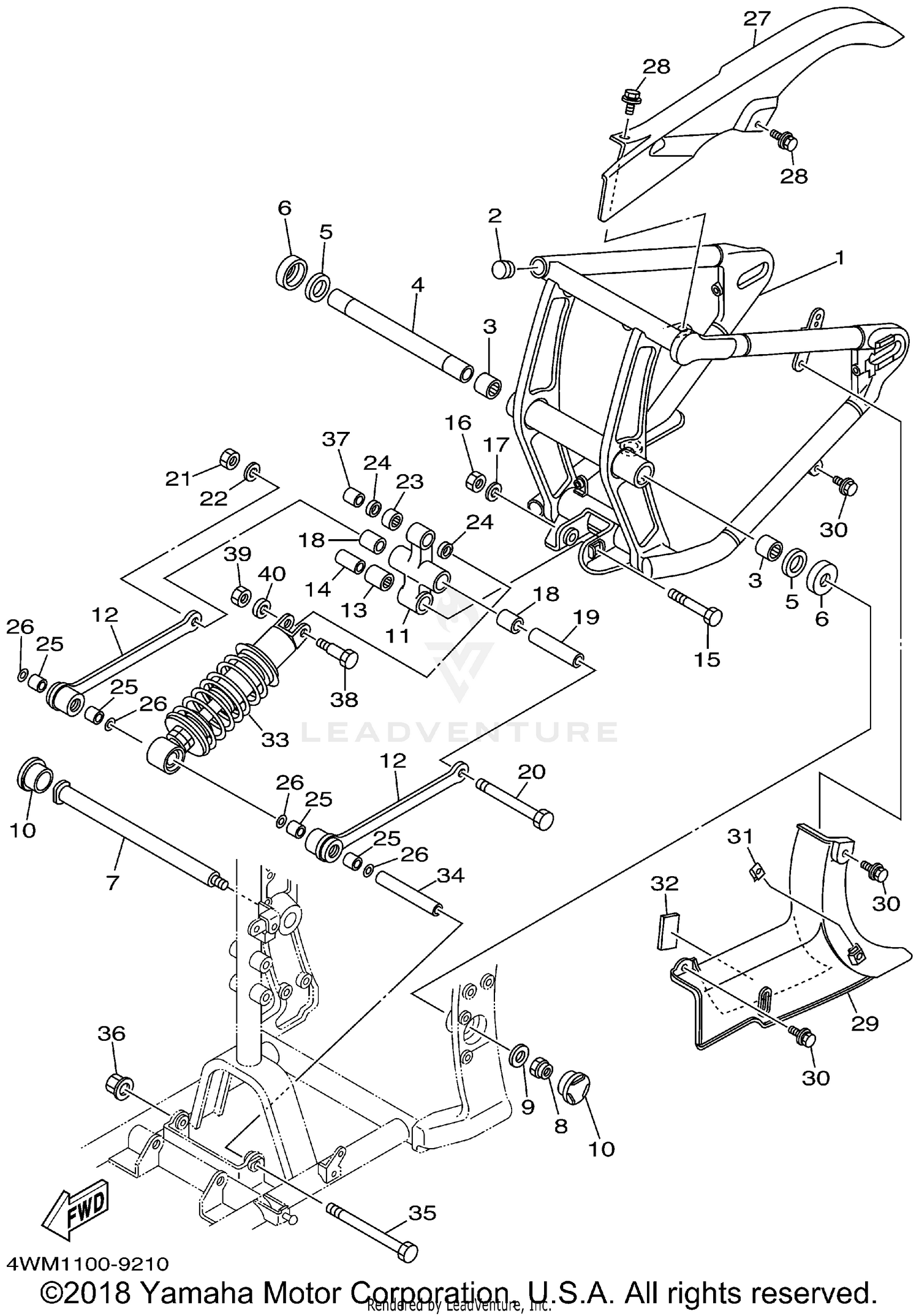

Rear Arm Suspension Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REAR ARM COMP.
4WM-22110-00-00
|
$596.00 | ||
|
Available to order. Add to View Price |
|||
|
#2
PLUG, TAPER
90336-28053-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
BEARING
93317-42550-00
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BUSH
4WM-22184-00-00
|
$108.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SHIM
3XV-22127-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
COVER, THRUST 1
3FV-22128-00-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
AXLE, WHEEL
3GM-25381-A0-00
Superseded by 3GM-25381-10-00
|
$101.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT, SELF-LOCKING
90185-18104-00
Superseded by 90185-18009-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, PLATE
90201-18264-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
COVER
4KM-2219X-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
ARM, RELAY
4WM-2217A-00-00
|
$239.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
ARM 1
4WM-2217M-00-00
|
$104.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BEARING
93317-42060-00
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
COLLAR
90387-122J6-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT
90101-12002-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT, U
95617-12100-00
|
$4.16 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
WASHER, PLATE
90201-127J6-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
BEARING
93317-41761-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
COLLAR
90387-126T1-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT
90101-12673-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT, U
95617-12100-00
|
$4.16 | ||
|
Unavailable |
|||
|
#22
WASHER, PLATE
90201-126A7-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
BEARING
93317-31771-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
OIL SEAL
93109-17071-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
BUSH, BIMETAL FORMED
90384-18157-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
O-RING
93210-18322-00
|
$5.60 | ||
|
Available to order. Add to View Price |
|||
|
#27
CASE, CHAIN
4WM-22311-00-00
|
$251.73 | ||
|
Unavailable |
|||
|
#28
BOLT, WITH WASHER
90119-06217-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
CASE, CHAIN 2
4WM-22312-00-00
Superseded by 5VN-22312-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT, WITH WASHER
90119-06001-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
NUT, SPRING
90183-06069-00
|
$7.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#32
DAMPER
22F-2139X-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
SHOCK ABSORBER ASSY, REAR
4WM-22210-00-00
|
$554.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
COLLAR
90387-1214E-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
BOLT
90101-12695-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
NUT, SELF-LOCKING
95607-12200-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
COLLAR
90387-127W0-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#38
BOLT
90101-10659-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#39
NUT, U
95617-10100-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#40
WASHER, PLATE
90201-101J1-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
