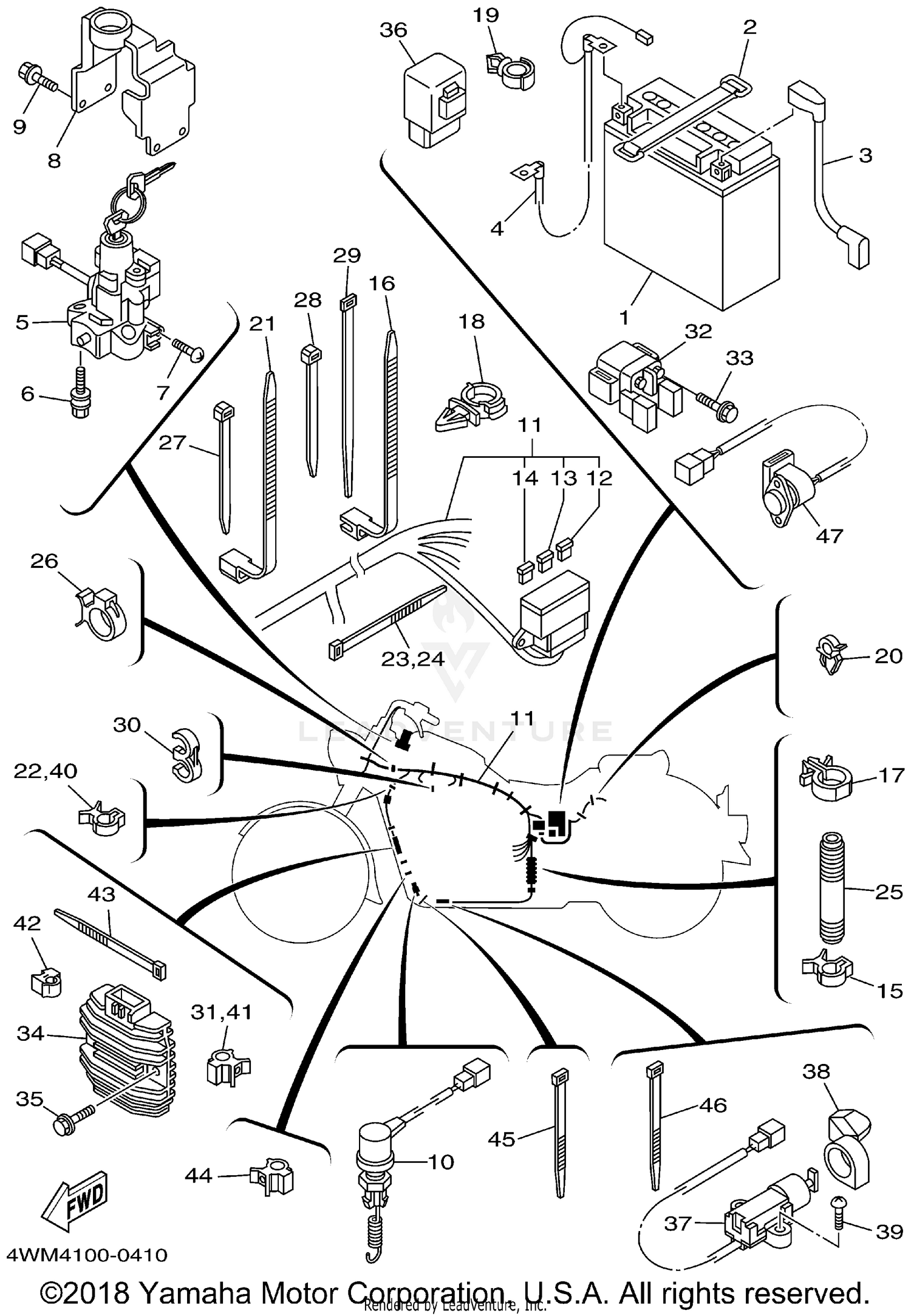

Electrical 2 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
YTX20LBS YUASA BATT
BTY-YTX20-LB-S0
Superseded by YTX-20LBS-00-00
|
$165.99 | ||
|
Unavailable |
|||
|
#2
BAND, BATTERY
4WM-82131-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
WIRE, PLUS LEAD
4WM-82115-00-00
Superseded by 4NK-82115-00-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
WIRE, MINUS LEAD
4WM-82116-00-00
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
MAIN SWITCH STEERING LOCK
4WM-82501-01-00
Superseded by 4WM-82501-03-00
|
$261.99 | ||
|
Unavailable |
|||
|
#6
BOLT
90109-080G5-00
Superseded by 90109-08196-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW, PAN HEAD
98507-05010-00
Superseded by 98517-05010-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#8
COVER, MAIN SWITCH
4WM-82568-00-00
|
$60.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, FLANGE
90105-06010-00
Superseded by 95817-06016-00
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#10
STOP SWITCH ASSY
4WM-82530-00-00
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
WIRE HARNESS ASSY
4WM-82590-10-00
|
$464.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
WIRE HARNESS ASSY
4WM-82590-00-00
Superseded by 4WM-82590-10-00
|
$464.99 | ||
|
Unavailable |
|||
|
#12
FUSE (5A-BL)
1NL-82151-00-00
|
$7.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
FUSE (15A-BLUE)
36Y-82151-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
FUSE (10A-BL)
42X-82151-00-00
|
$4.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
CLAMP
90464-20191-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
CLAMP
90464-07209-00
|
$2.44 | ||
|
Available to order. Add to View Price |
|||
|
#17
CLAMP
90464-24230-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
CLAMP
90464-13073-00
Superseded by 90464-15195-00
|
$4.41 | ||
|
Available to order. Add to View Price |
|||
|
#19
CLAMP
90464-20181-00
|
$4.72 | ||
|
Available to order. Add to View Price |
|||
|
#20
CLAMP
90464-08263-00
|
$1.85 | ||
|
Available to order. Add to View Price |
|||
|
#21
CLAMP
90464-13073-00
Superseded by 90464-15195-00
|
$4.41 | ||
|
Unavailable |
|||
|
#22
CLAMP
90464-15192-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
BAND
1UA-82591-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
BAND
1UA-82591-00-00
|
$5.49 | ||
|
Unavailable |
|||
|
#25
TUBE
4WM-82139-00-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#26
CLAMP
90464-20191-00
|
$11.49 | ||
|
Unavailable |
|||
|
#27
BAND, SWITCH CORD
90464-12045-00
Superseded by 25G-83936-01-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
BAND, SWITCH CORD
90464-12045-00
Superseded by 25G-83936-01-00
|
$5.49 | ||
|
Unavailable |
|||
|
#29
BAND
90464-32060-00
Superseded by 1UA-82591-00-00
|
$5.49 | ||
|
Unavailable |
|||
|
#30
CLAMP
90464-60067-00
|
$1.75 | ||
|
Available to order. Add to View Price |
|||
|
#31
CLAMP
90464-10190-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
STARTER RELAY ASSY (RC19-005)
4BH-81940-00-00
Superseded by 4BH-81940-02-00
|
$123.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
BOLT, FLANGE
95027-06008-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
RECTIFIER & REGULATOR ASSY
5BN-81960-00-00
|
$223.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#35
BOLT, FLANGE
95807-06020-00
Superseded by 95817-06020-00
|
$3.50 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#36
RELAY ASSY
3EN-81950-00-00
Superseded by 3EN-81950-02-00
|
$75.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
SWITCH, SIDE STAND
3LD-82566-70-00
Superseded by 3LD-82566-71-00
|
$53.99 | ||
|
Unavailable |
|||
|
#38
COVER
4WM-8252U-00-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#39
SCREW, PAN HEAD
90157-05079-00
Superseded by 98507-05014-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#40
CLAMP
90464-15192-00
|
$9.49 | ||
|
Unavailable |
|||
|
#41
CLAMP
90464-15192-00
|
$9.49 | ||
|
Unavailable |
|||
|
#41
CLAMP
90464-10190-00
|
$10.49 | ||
|
Unavailable |
|||
|
#42
CLAMP
90464-05188-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#43
BAND
1UA-82591-00-00
|
$5.49 | ||
|
Unavailable |
|||
|
#44
CLAMP
90464-10190-00
|
$10.49 | ||
|
Unavailable |
|||
|
#45
BAND
1UA-82591-00-00
|
$5.49 | ||
|
Unavailable |
|||
|
#46
BAND
1UA-82591-00-00
|
$5.49 | ||
|
Unavailable |
|||
|
#47
THERMO SWITCH ASSY
4TR-82560-00-00
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
