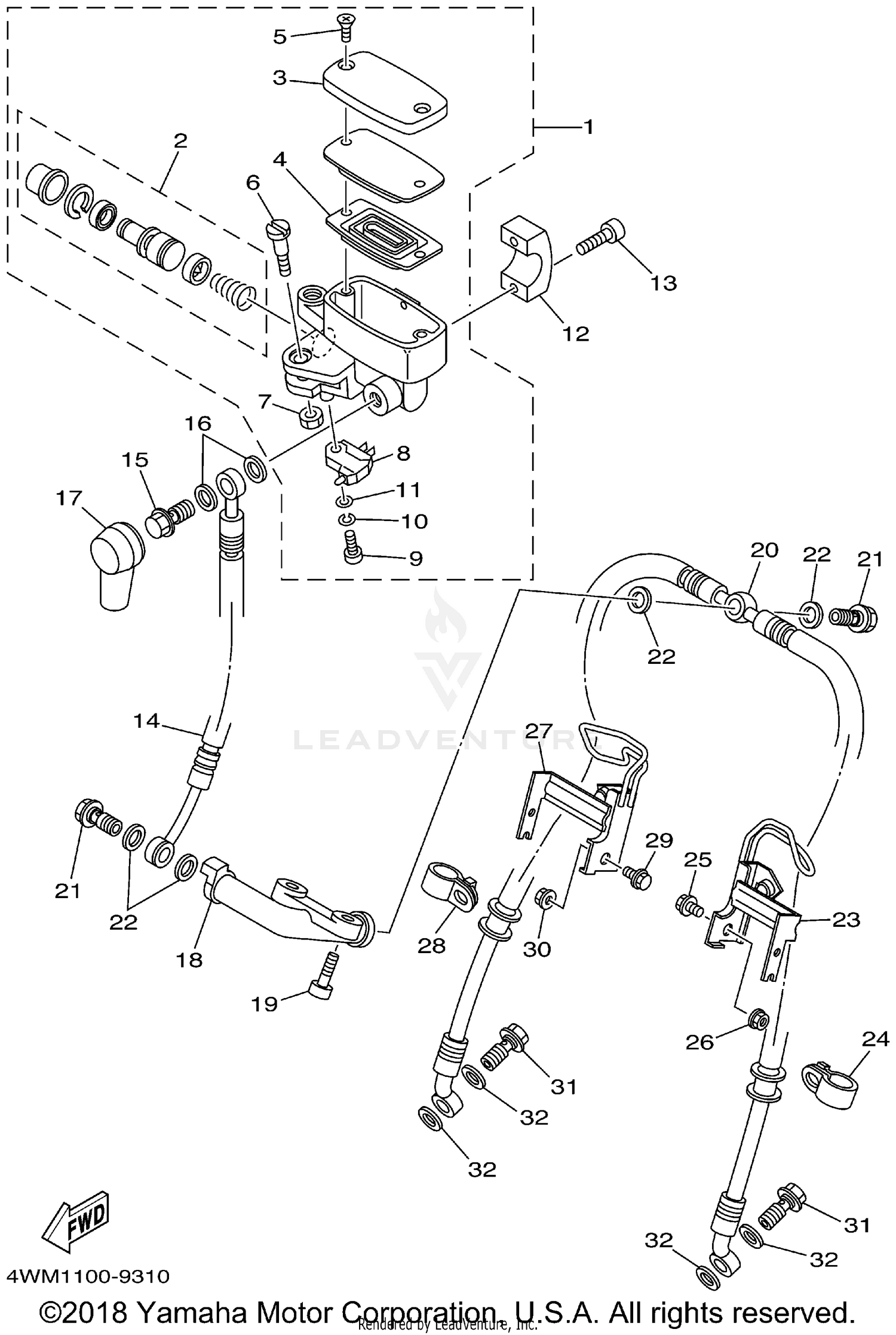

Front Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MASTER CYLINDER SUB
4NK-25870-00-00
Superseded by 4NK-W2587-02-00
|
$441.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
CYLINDER KIT, MASTER
4K0-W0041-50-00
|
$99.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
RESERVOIR CAP SET
4NK-W2585-00-00
Superseded by 4NK-W2585-01-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
DIAPHRAGM, RESERVOIR
4NK-25854-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW
4NK-2589H-00-00
Superseded by 3D8-2589H-10-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, LEVER
4NK-2589F-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT, U
95604-06100-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
FRONT STOP SWITCH ASSY
3FV-83980-00-00
Superseded by 4HM-83980-00-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW,PANHEAD
98517-04012-00
|
$4.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
WASHER, SPRING
92907-04100-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER
92907-04600-00
|
$1.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
BRACKET, MASTER CYLINDER
4NK-25867-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, HEXAGON SOCKET HEAD
91314-06025-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
HOSE, BRAKE 1
4WM-25872-00-00
|
$103.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, UNION
90401-10159-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, PLATE
90201-10118-00
|
$3.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
BOOT, MASTER CYLINDER
4L0-25862-01-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
JOINT
4NK-25885-00-00
|
$56.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, HEX. SOCKET HEAD
91317-06020-00
|
$2.75 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
HOSE, BRAKE 2
4WM-25873-00-00
|
$129.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, UNION
90401-10159-00
|
$12.49 | ||
|
Unavailable |
|||
|
#22
WASHER, PLATE
90201-10118-00
|
$3.80 | ||
|
Unavailable |
|||
|
#23
HOLDER, BRAKE HOSE 1
4WM-25875-00-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
CLAMP
90461-08031-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, FLANGE
90105-06007-00
|
$1.30 | ||
|
Unavailable |
|||
|
#26
NUT, SPECL SHAPE
90179-08491-00
|
$2.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
HOLDER, BRAKE HOSE
4WM-25886-00-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
CLAMP
90461-08031-00
|
$9.49 | ||
|
Unavailable |
|||
|
#29
BOLT, FLANGE
90105-06007-00
|
$1.30 | ||
|
Unavailable |
|||
|
#30
NUT, SPECL SHAPE
90179-08491-00
|
$2.80 | ||
|
Unavailable |
|||
|
#31
BOLT, UNION
90401-10159-00
|
$12.49 | ||
|
Unavailable |
|||
|
#32
WASHER, PLATE
90201-10118-00
|
$3.80 | ||
|
Unavailable |
|||
