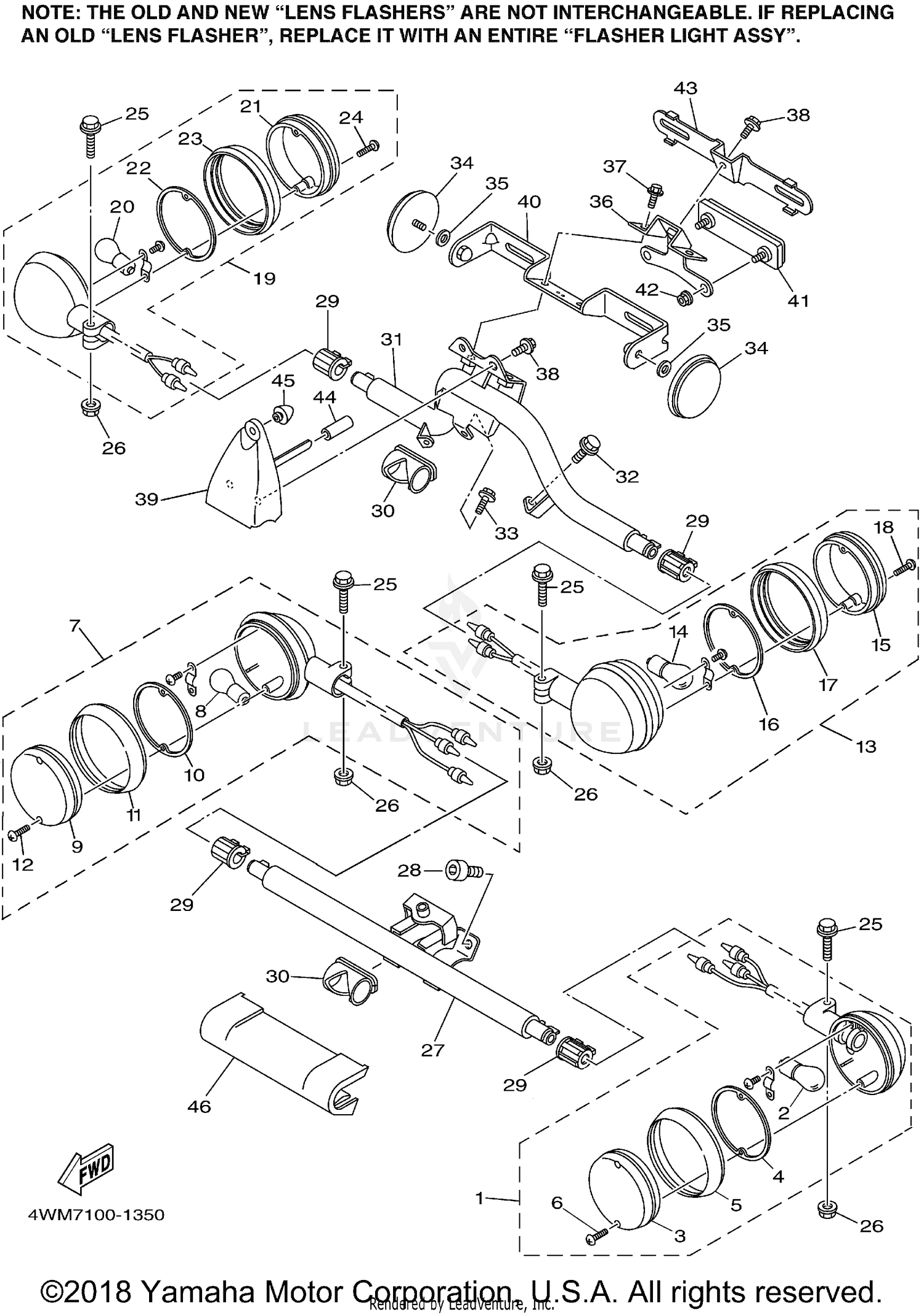

Flasher Light Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FLASHER LIGHT ASSY 1
4WM-83310-01-00
|
$128.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BULB, FLSHER (12V-278W)
256-84714-61-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
LENS, FLASHER
42X-83312-10-00
|
$16.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
GASKET, FLASHER LENS
1D6-83313-00-00
|
$7.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
LENS, RIM
1D6-83363-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW, COUNTERSUNK
57M-83358-00-00
Superseded by 90151-03003-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
FRONT FLASHER LIGHT ASSY 2
4WM-83320-01-00
|
$128.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BULB, FLSHER (12V-278W)
256-84714-61-00
|
$12.99 | ||
|
Unavailable |
|||
|
#9
LENS, FLASHER
42X-83312-20-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
GASKET, FLASHER LENS
1D6-83313-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#11
LENS, RIM
1D6-83363-10-00
|
$31.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
SCREW, COUNTERSUNK
57M-83358-00-00
Superseded by 90151-03003-00
|
$9.49 | ||
|
Unavailable |
|||
|
#13
REAR FLASHER LIGHT ASSY 1
42X-83330-K1-00
|
$142.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BULB (12V-32CP)
256-83311-70-00
Superseded by 256-83311-70-XX
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#15
LENS, FLASHER
42X-83312-20-00
|
$16.49 | ||
|
Unavailable |
|||
|
#16
GASKET, FLASHER LENS
1D6-83313-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#17
LENS, RIM
1D6-83363-10-00
|
$31.99 | ||
|
Unavailable |
|||
|
#18
SCREW, COUNTERSUNK
57M-83358-00-00
Superseded by 90151-03003-00
|
$9.49 | ||
|
Unavailable |
|||
|
#19
REAR FLASHER LIGHT ASSY 2
42X-83340-K1-00
|
$132.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
BULB (12V-32CP)
256-83311-70-XX
|
$2.35 | ||
|
Unavailable |
|||
|
#21
LENS, FLASHER
42X-83312-10-00
|
$16.49 | ||
|
Unavailable |
|||
|
#22
GASKET, FLASHER LENS
1D6-83313-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#23
LENS, RIM
1D6-83363-00-00
|
$31.99 | ||
|
Unavailable |
|||
|
#24
SCREW, COUNTERSUNK
57M-83358-00-00
Superseded by 90151-03003-00
|
$9.49 | ||
|
Unavailable |
|||
|
#25
BOLT, FLANGE (SMALL HEAD)
95024-06030-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
NUT, FLANGE
95704-06500-00
Superseded by 95780-06500-00
|
$2.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
STAY 8
4WM-2317V-00-00
|
$127.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT, HEXAGON SOCKET HEAD
91314-08016-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
DAMPER, FLASHER 1
4NK-83321-00-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
PLUG, BLIND
4NK-83345-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
STAY, 9
4WM-2317W-10-00
|
$167.27 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT, FLANGE
95027-06012-00
|
$4.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#33
BOLT, WITH WASHER
90119-06217-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#34
REFLECTOR, REAR 1
449-85131-02-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
WASHER, SPECIAL
90201-05033-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
BRACKET, REFLECTOR 1
4WM-2113J-00-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
BOLT, FLANGE
95027-06012-00
|
$4.20 | ||
|
Unavailable |
|||
|
#38
BOLT, FLANGE
95027-06010-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#39
BRACKET
5KS-84703-00-00
|
$103.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
BRACKET, LICENSE
4WM-84751-00-00
|
$27.99 | ||
|
Unavailable |
|||
|
#41
REAR REFLECTOR ASSY
1FK-85130-00-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
NUT, FLANGE
95707-05500-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#43
BRACKET, LICENSE
4WM-21685-10-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#44
HOSE
90446-07114-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#45
DAMPER 2
42U-21639-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#46
COVER, OUTER 1
4NK-23122-01-00
|
$96.99 | ||
|
Available to order. Add to View Price |
|||
