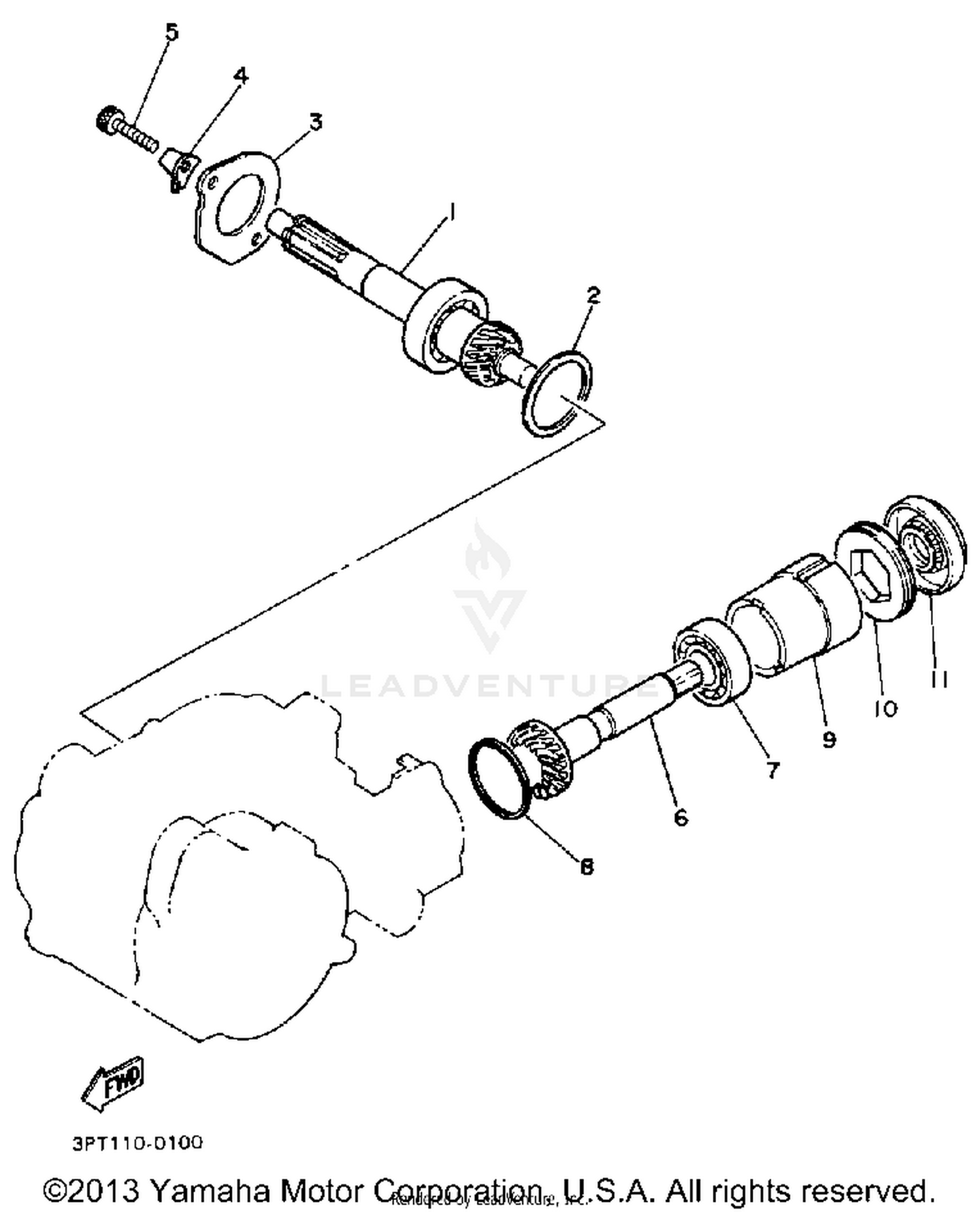

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MAIN AXLE COMP. (15T)
3L5-17410-00-00
|
$195.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
SHIM, PINION
3L5-17531-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
PLATE, COVER
3L5-17471-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
STOPPER
3L5-17473-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT (4MY)
91316-06016-00
Superseded by 91317-06016-00
|
$1.25 | ||
|
Available to order. Add to View Price |
|||
|
#6
PINION, DRIVEN (19T)
15L-17552-00-00
|
$180.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BEARING
93306-20310-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SHIM, THRUST
3L5-17537-00-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
COLLAR, DISTANCE
3L5-17442-00-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW
90149-45134-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
OIL SEAL
93102-15267-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
